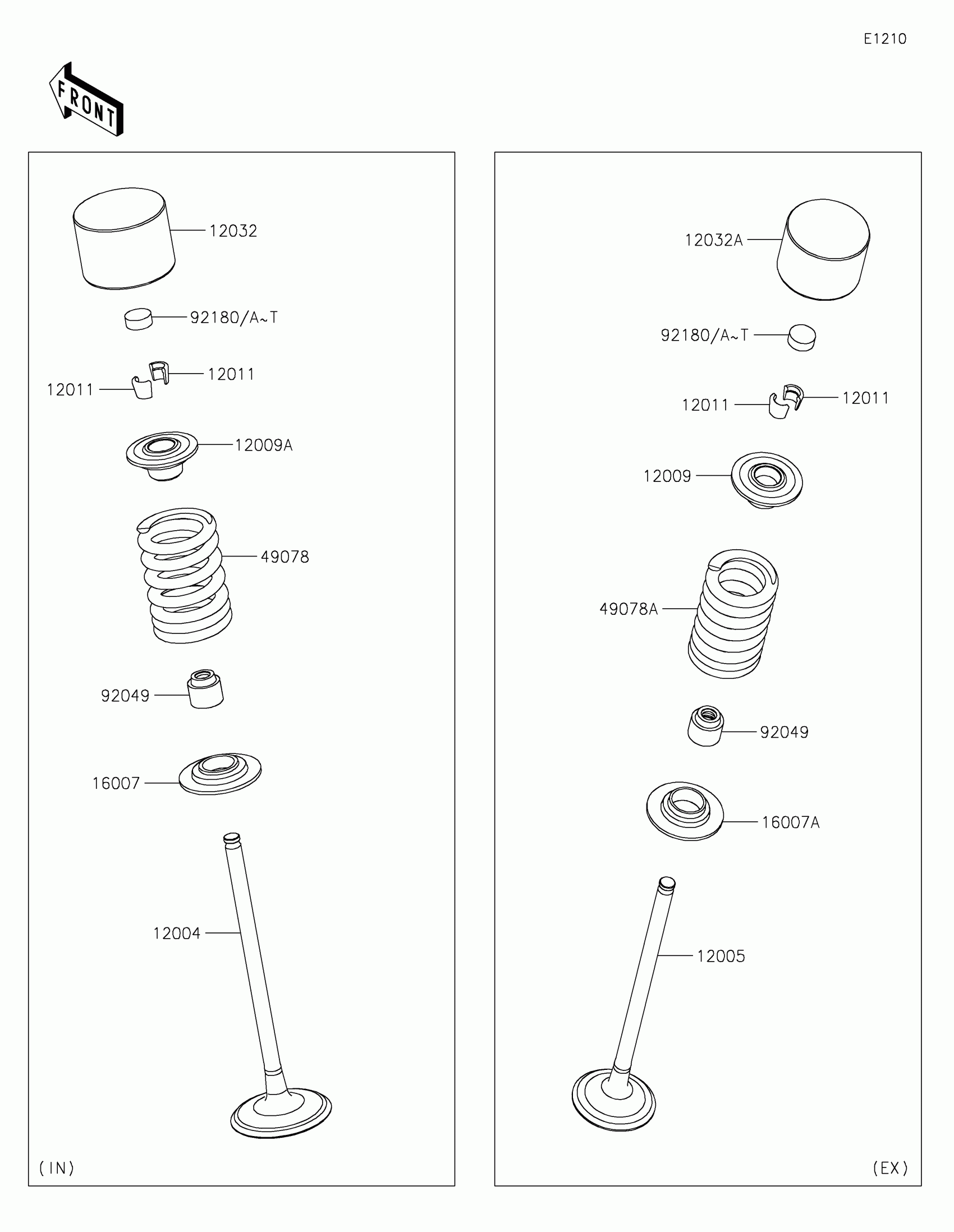

Find the part on the Valve diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® Crew Hvac Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0750

1
Out of stock

12005

VALVE-EXHAUST

12005-0771

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-0030

1
Out of stock

12009A

RETAINER-VALVE SPRING

12009-1091

1
Out of stock

12011

COLLET

12011-1053

1
Out of stock

12032

TAPPET

12032-0009

1
Out of stock

12032A

TAPPET

12032-0018

1
Out of stock

16007

SEAT-SPRING

16007-0034

1
Out of stock

16007A

SEAT-SPRING

16007-1227

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0073

1
Out of stock

49078A

SPRING-ENGINE VALVE

49078-0743

1
Out of stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock

92180

SHIM,T=2.50

92180-1014

—
Out of stock

92180A

SHIM,T=2.55

92180-1016

—
Out of stock

92180B

SHIM,T=2.60

92180-1018

—
Out of stock

92180C

SHIM,T=2.65

92180-1020

—
Out of stock

92180D

SHIM,T=2.70

92180-1022

—
Out of stock

92180E

SHIM,T=2.75

92180-1024

—
Out of stock

92180F

SHIM,T=2.80

92180-1026

—
Out of stock

92180G

SHIM,T=2.85

92180-1028

—
Out of stock

92180H

SHIM,T=2.90

92180-1030

—
Out of stock

92180I

SHIM,T=2.95

92180-1032

—
Out of stock

92180J

SHIM,T=3.00

92180-1034

1
Out of stock

92180K

SHIM,T=3.05

92180-1036

—
Out of stock

92180L

SHIM,T=3.10

92180-1038

—
Out of stock

92180M

SHIM,T=3.15

92180-1040

—
Out of stock

92180N

SHIM,T=3.20

92180-1042

—
Out of stock

92180O

SHIM,T=3.25

92180-1044

—
Out of stock

92180P

SHIM,T=3.30

92180-1046

—
Out of stock

92180Q

SHIM,T=3.35

92180-1048

—
Out of stock

92180R

SHIM,T=3.40

92180-1050

—
Out of stock

92180S

SHIM,T=3.45

92180-1052

—
Out of stock

92180T

SHIM,T=3.50

92180-1054

—
Out of stock
