2025 Kawasaki Ridge® Crew Hvac Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

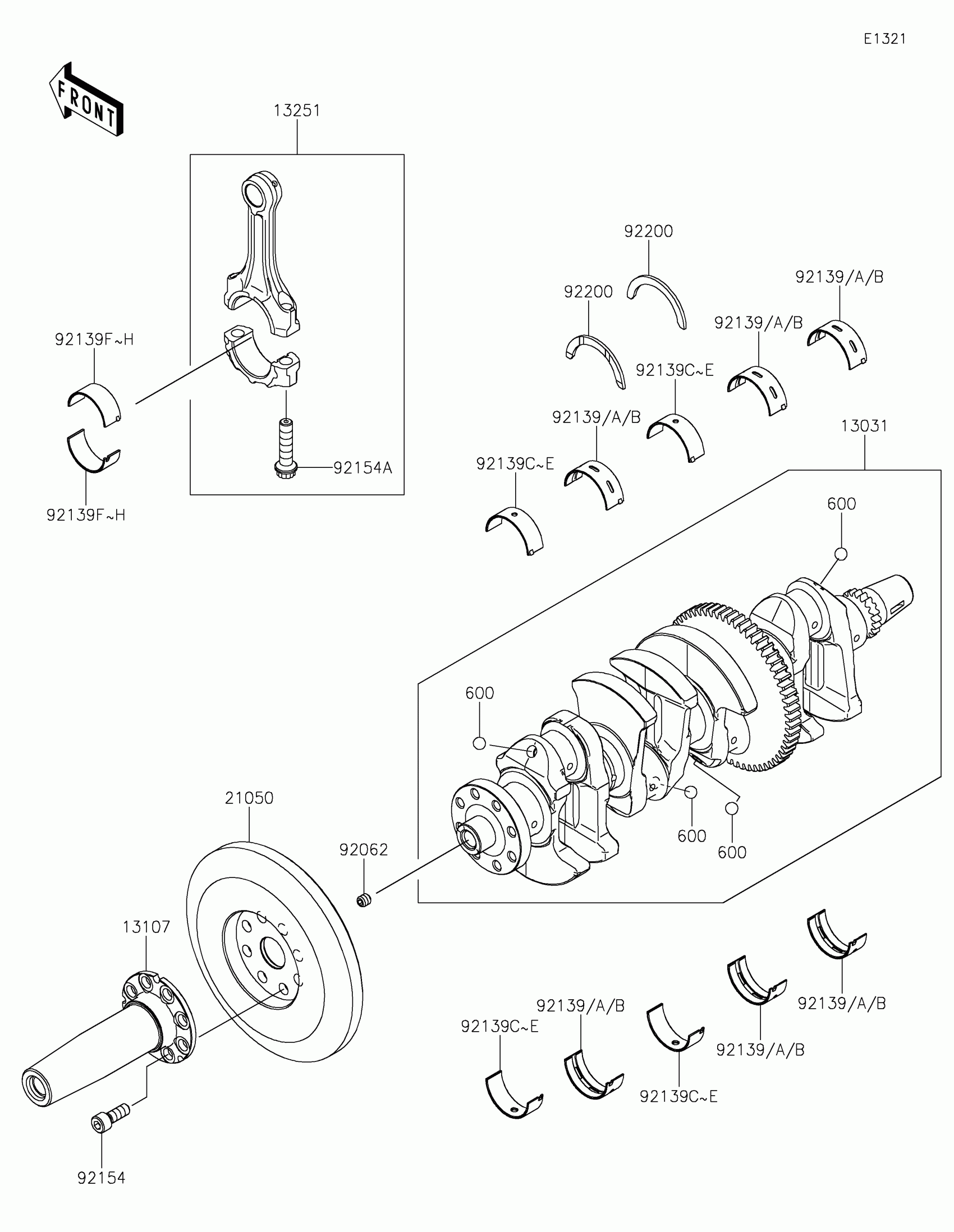

2025 Kawasaki Ridge® Crew Hvac Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1530

1
Out of stock

13107

SHAFT,CONVERTER

13107-0997

1
Out of stock

13251

ROD-ASSY-CONNECTING,H

13251-0751-HH

1
Out of stock

21050

FLYWHEEL

21050-0035

1
Out of stock

92062

NOZZLE

92062-1053

1
Out of stock

92139

BUSHING,#2,BLUE

92139-1265

1
Out of stock

92139A

BUSHING,#2,BLACK

92139-1266

—
Out of stock

92139B

BUSHING,#2,BROWN

92139-1267

—
Out of stock

92139C

BUSHING,#1,BLUE

92139-1268

1
Out of stock

92139D

BUSHING,#1,BLACK

92139-1269

—
Out of stock

92139E

BUSHING,#1,BROWN

92139-1270

—
Out of stock

92139F

BUSHING,CONNECTING ROD,BLUE

92139-1271

1
Out of stock

92139G

BUSHING,CONNECTING ROD,BLACK

92139-1272

—
Out of stock

92139H

BUSHING,CONNECTING ROD,BROWN

92139-1273

—
Out of stock

92154

BOLT,8X22

92154-4492

1
Out of stock

92154A

BOLT,CONNECTING ROD

92154-4493

1
Out of stock

92200

WASHER,T=2.5

92200-0744

1
Out of stock

600

BALL-STEEL,11/32"

600A1100

1
Out of stock
