Description

Price

11058

BRACKET,ROOF

11058-0254

$8.01

11058A

BRACKET,ROOF,MID

11058-2052

$5.83

16073

INSULATOR,ROOM LIGHT

16073-0958

$215.62

16073A

INSULATOR,HEAT,RH

16073-0981

$134.92

16073B

INSULATOR,HEAT,LH

16073-0982

$34.84

16073C

INSULATOR,RH

16073-0985

$189.98

16073D

INSULATOR,LH

16073-0986

$48.40

23016

LAMP-ASSY,ROOM

23016-0673

$13.12

39330

ROOF,FR

39330-0003

$159.14

39330A

ROOF,RR

39330-0004

$152.09

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,6MM

92015-1602

$7.34

92039

RIVET

92039-0776

$1.19

92075

DAMPER

92075-1598

$8.58

92093

SEAL,ROOF,RR

92093-0778

$19.50

92093A

SEAL,ROOF,FR

92093-0812

$28.52

92093B

SEAL,ROOF,SIDE

92093-0814

$21.94

92093C

SEAL,ROOF,MID

92093-0815

$18.02

92143

COLLAR

92143-1087

$4.31

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,FLANGED,6X20

92154-7737

$2.33

92172

SCREW,6X16

92172-0284

$1.34

130

BOLT-FLANGED,6X14

130BA0614

$1.20

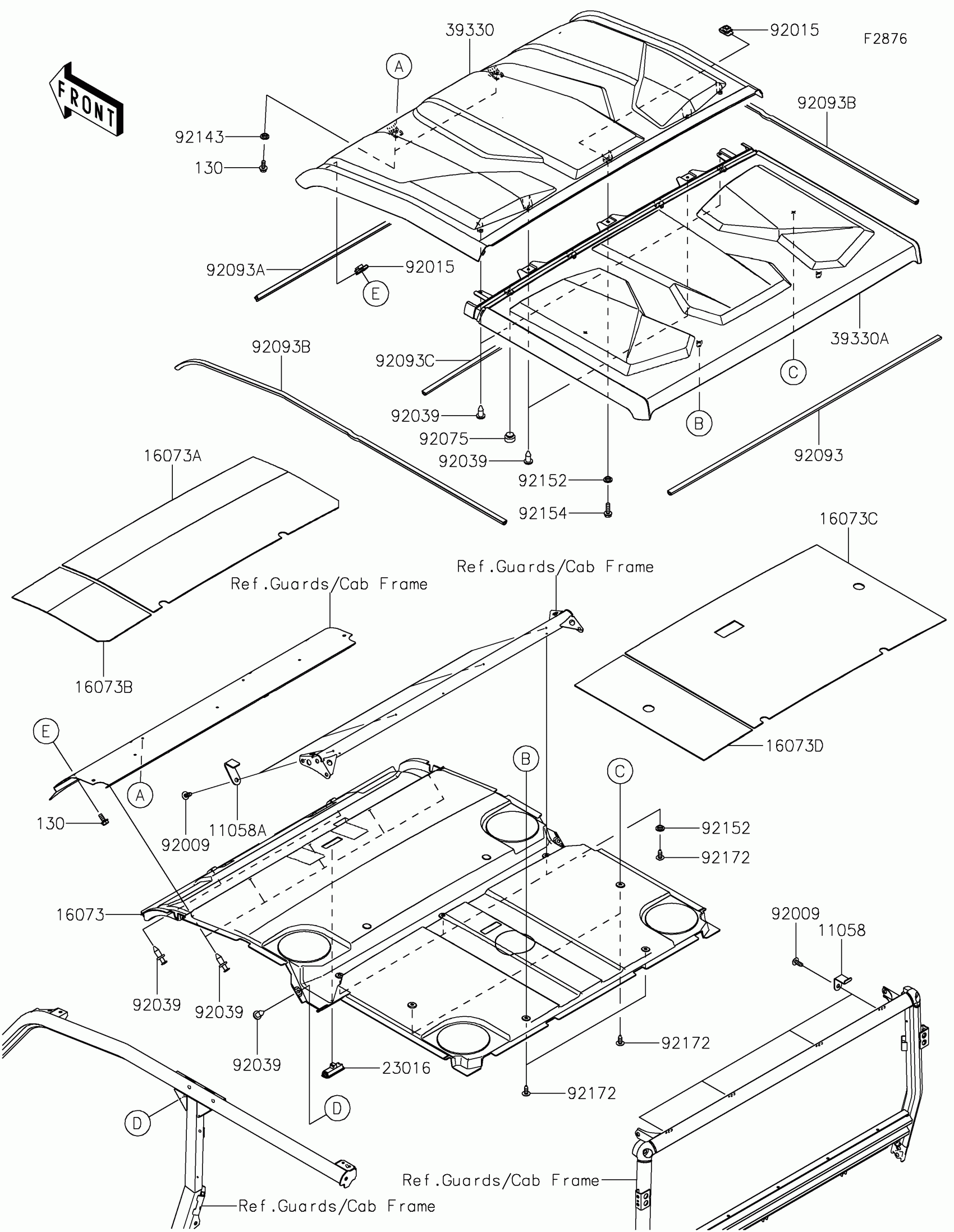

Kawasaki RIDGE® CREW HVAC Sun Top Diagram
