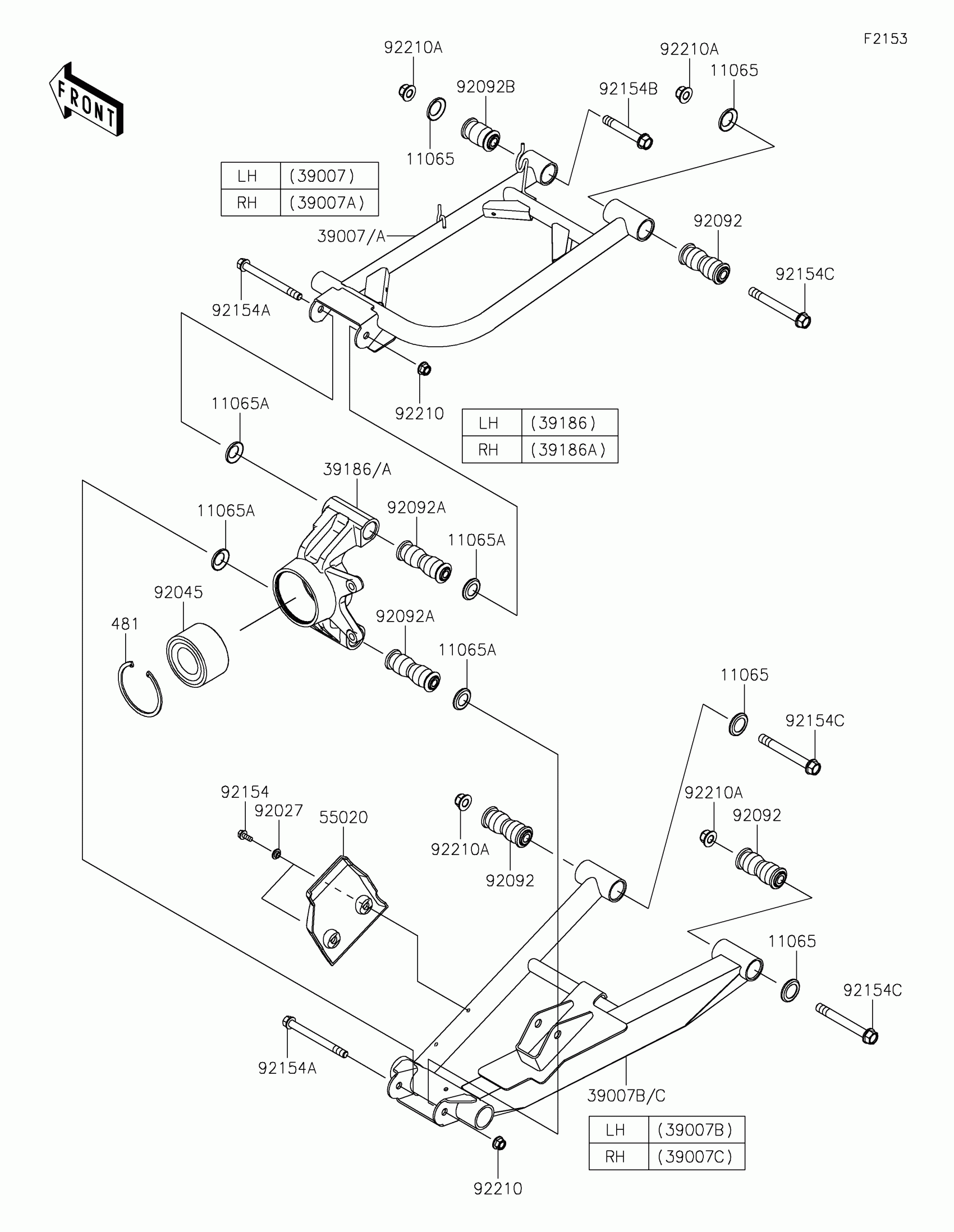

Kawasaki RIDGE® CREW HVAC Rear Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$3.87

11065A

CAP

11065-0849

$3.87

39007

ARM-SUSP,RR,UPP,LH,BLACK

39007-0491-10

$148.09

39007A

ARM-SUSP,RR,UPP,RH,BLACK

39007-0492-10

$148.09

39007B

ARM-SUSP,RR,LWR,LH,BLACK

39007-0493-10

$174.63

39007C

ARM-SUSP,RR,LWR,RH,BLACK

39007-0494-10

$174.63

39186

KNUCKLE,RR,LH

39186-0337

$206.13

39186A

KNUCKLE,RR,RH

39186-0338

$206.13

55020

GUARD,RR CVJ

55020-0931

$13.79

92027

COLLAR,L=4.6

92027-1168

$5.00

92045

BEARING-BALL,42X80X45

92045-0960

$78.43

92092

BUSHING-RUBBER,12X20X78

92092-0028

$21.77

92092A

BUSHING-RUBBER,10.1X17X88

92092-0029

$20.99

92092B

BUSHING-RUBBER

92092-0555

$19.13

92154

BOLT,6X15.6

92154-1250

$0.82

92154A

BOLT,FLANGED,10X110

92154-1353

$4.92

92154B

BOLT,FLANGED,12X76.5

92154-7079

$9.99

92154C

BOLT,FLANGED,12X100

92154-7081

$12.54

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

92210A

NUT,LOCK,FLANGED,12MM

92210-1931

$4.96

481

CIRCLIP 80MM

481J8000

$7.58
