2025 Kawasaki Ridge® Crew Hvac Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

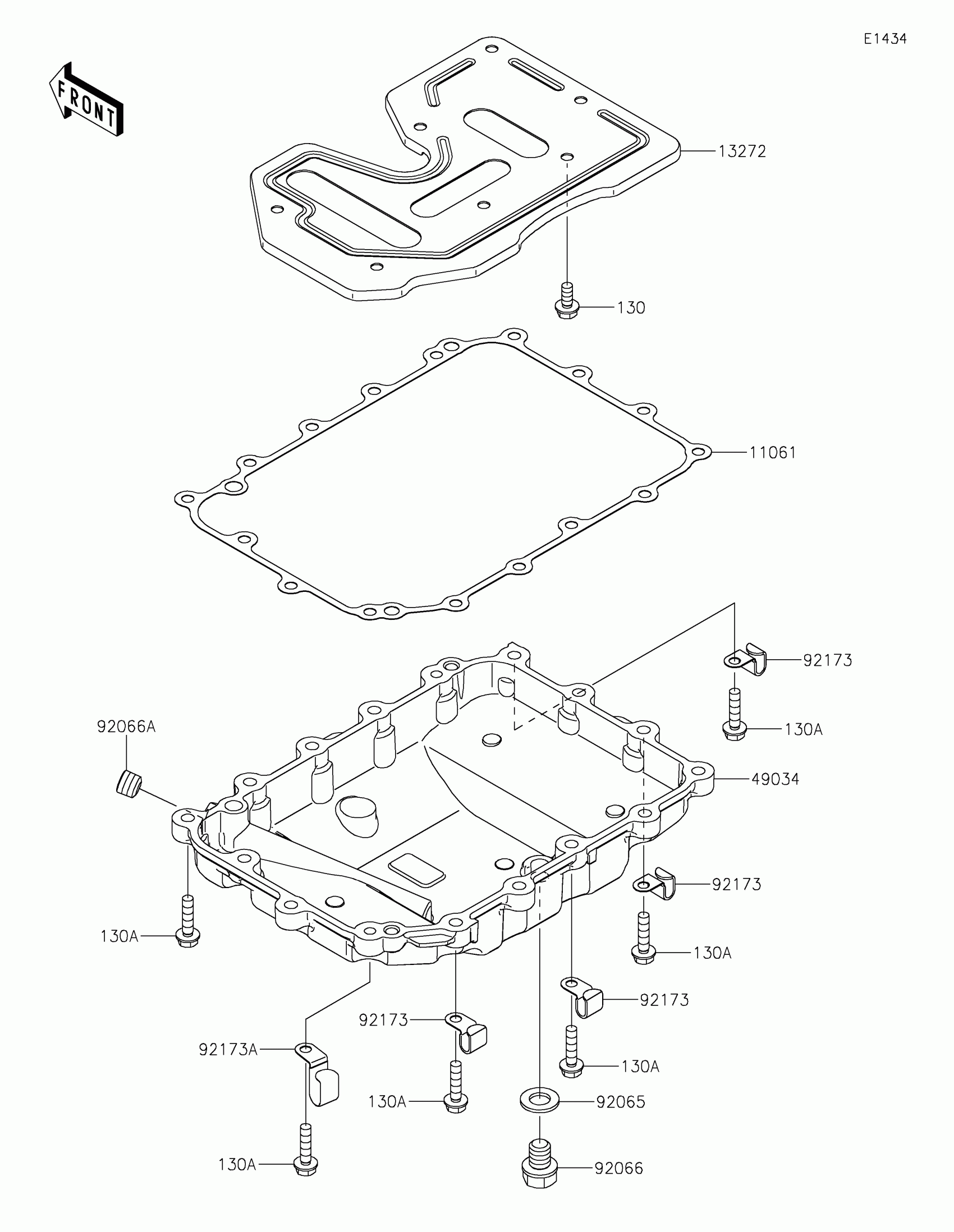

2025 Kawasaki Ridge® Crew Hvac Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PAN

11061-1453

1

$36.80

In stock

13272

PLATE,OIL PAN

13272-4094

1

$16.49

In stock

49034

PAN-OIL

49034-0583

1

$199.40

In stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

1

$4.88

In stock

92066A

PLUG

92066-1597

1

$3.25

In stock

92173

CLAMP,12X45

92173-1839

1

$4.71

In stock

92173A

CLAMP

92173-2588

1

$2.10

In stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
