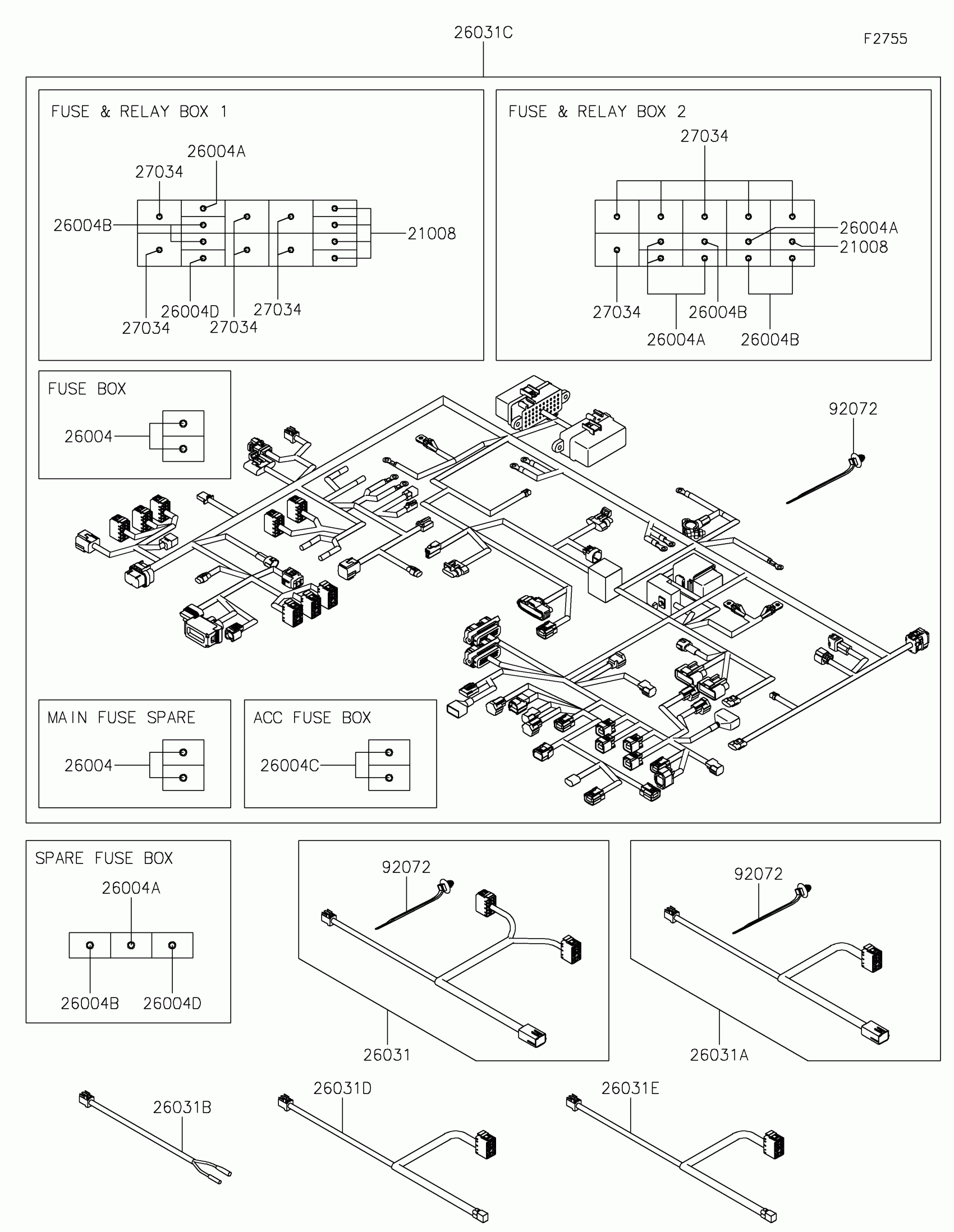

Kawasaki RIDGE® CREW HVAC Harness Diagram

Description

Price

21008

BREAKER,20A

21008-0017

$25.81

26004

FUSE-ASSY,SLOW-BLOW,70A

26004-0030

$5.40

26004A

FUSE-ASSY,20A

26004-0033

$2.92

26004B

FUSE-ASSY,10A

26004-0034

$2.67

26004C

FUSE-ASSY,40A

26004-0035

$4.11

26004D

FUSE-ASSY,30A

26004-0043

$4.88

26031

HARNESS,SUB,DOOR,LH

26031-3942

$61.97

26031A

HARNESS,SUB,DOOR,RH

26031-4015

$42.62

26031B

HARNESS,SUB,ROOM LIGHT

26031-4076

$15.04

26031C

HARNESS,MAIN

26031-4183

$1,353.18

26031D

HARNESS,SUB,DOOR,RR,LH

26031-4187

$42.62

26031E

HARNESS,SUB,DOOR,RR,RH

26031-4188

$44.75

27034

RELAY

27034-0013

$20.18

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable
