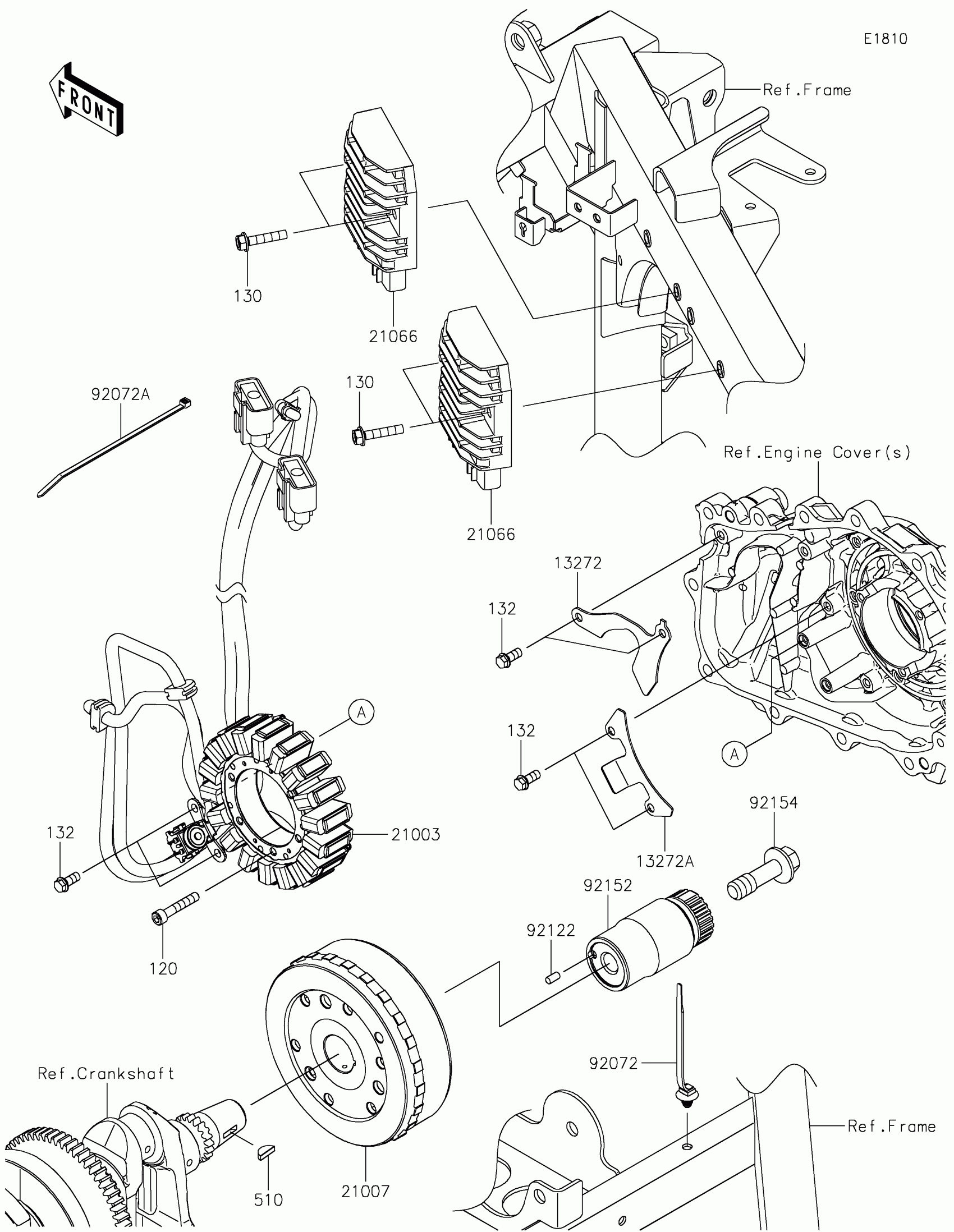

Kawasaki RIDGE® CREW HVAC Generator Diagram

Description

Price

13272

PLATE,LEAD WIRE

13272-4122

$4.03

13272A

PLATE,LEAD WIRE

13272-4123

$3.32

21003

STATOR

21003-0223

$696.17

21007

ROTOR

21007-0731

$846.17

21066

REGULATOR-VOLTAGE

21066-0771

$339.14

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072A

BAND,L=292.1

92072-3509

Unavailable

92122

ROLLER

92122-0569

$0.74

92152

COLLAR

92152-2932

$70.55

92154

BOLT,14X45

92154-7019

$16.66

120

BOLT-SOCKET,6X35

120CA0635

$2.06

130

BOLT-FLANGED,6X30

130BA0630

$1.46

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

510

KEY-WOODRUFF

510A4200

$2.96
