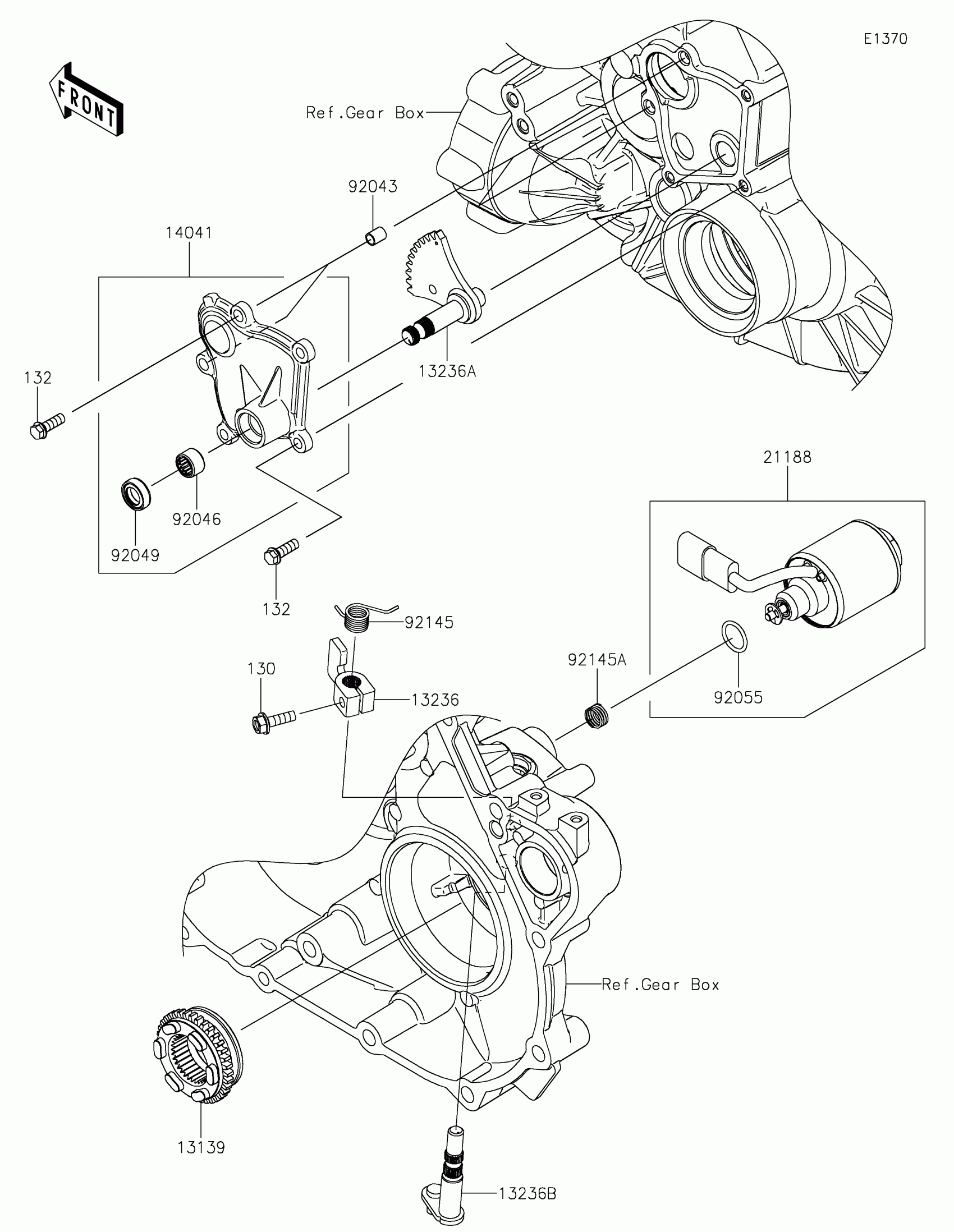

Kawasaki RIDGE® CREW HVAC Gear Change Mechanism Diagram

Description

Price

13139

SHIFTER,36T

13139-0041

$137.35

13236

LEVER-COMP,DIFF LOCK

13236-0745

$25.91

13236A

LEVER-COMP

13236-0816

$58.19

13236B

LEVER-COMP

13236-0852

$53.01

14041

COVER-COMP

14041-0614

$23.06

21188

SOLENOID

21188-0010

$110.54

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O

92055-0829

$3.68

92145

SPRING

92145-1572

$3.23

92145A

SPRING

92145-1573

$3.74

130

BOLT-FLANGED,6X20

130BA0620

$1.74

132

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.67
