- Partiron
- OEM Parts
- Kawasaki
- side-x-side
- 2025
- RIDGE® CREW HVAC
Door(RR/RH)

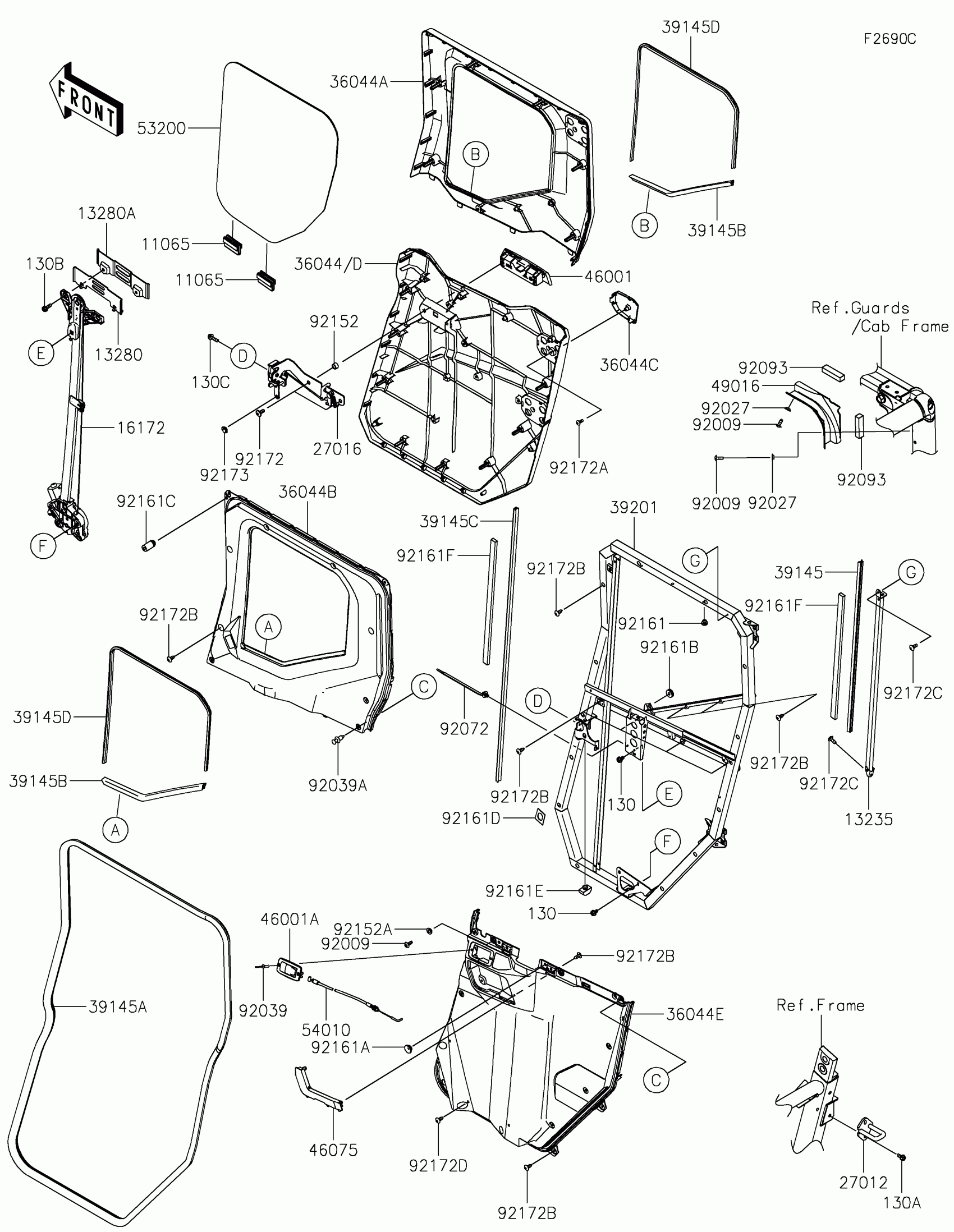

Kawasaki RIDGE® CREW HVAC Door(RR/RH) Diagram
#
11065
CAP,WINDOW ACTUATOR
11065-1432
$1.58
13235
GUIDE-COMP,WINDOW RAIL,RH
13235-0017
$98.06
13280
HOLDER,WINDOW,INNER
13280-1342
$8.95
13280A
HOLDER,WINDOW,OUTER
13280-1343
$10.13
16172
ACTUATOR,WINDOW,RH
16172-0564
$416.52
27012
HOOK,FULL DOOR
27012-0926
$12.85
27016
LOCK-ASSY,RR DOOR,RH
27016-0112
$206.20
36044
PANEL-DOOR,RR,RH,LWR,OUTER,BLK
36044-0014-839
$294.31
36044A
PANEL-DOOR,RR,RH,UPP,OUTER
36044-0018
$54.54
36044B
PANEL-DOOR,RR,RH,UPP,INNER
36044-0020
$67.47
36044C
PANEL-DOOR,RR,HINGE,RH,S.BLACK
36044-0022-839
$13.10
36044E
PANEL-DOOR,RR,RH,LWR,INNER
36044-0030
$77.45
39145
TRIM-SEAL,FULL DOOR,RAIL,RR
39145-0747
$16.40
39145A
TRIM-SEAL,RR FULL DOOR
39145-0784
$45.04
39145B
TRIM-SEAL,RR WINDOW,LWR
39145-0786
$15.86
39145C
TRIM-SEAL,RR FULL DOOR,RAIL,FR
39145-0787
$25.41
39145D
TRIM-SEAL,RR WINDOW,UPP
39145-0818
$6.58
39201
FRAME-COMP-DOOR,RR,RH
39201-0014
$462.77
46001
HANDLE-ASSY,DOOR,OUTER
46001-0017
$28.37
46001A
HANDLE-ASSY,DOOR,INNER
46001-0026
$25.68
46075
GRIP,RR DOOR,INNNER,RH
46075-0695
$16.30
49016
COVER-SEAL,RR DOOR,RH
49016-0717
$8.41
53200
WINDOW,RR,GLASS
53200-0002
$88.71
54010
CABLE,RR DOOR HANDLE
54010-0675
$16.24
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92027
COLLAR,L=4.6
92027-1168
$5.00
92039
RIVET,4.0X17.5
92039-0703
$0.99
92039A
RIVET
92039-0776
$1.19
92072
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92093
SEAL,WINDOW,CORNER
92093-0811
$1.93
92152
COLLAR,6.5X8.5X5.5
92152-0612
$3.90
92152A
COLLAR,6.3X9.5X4.1
92152-1571
$6.00
92161
DAMPER
92161-1084
$2.67
92161A
DAMPER
92161-1531
$3.02
92161B
DAMPER,6X19X5.6
92161-1911
$0.90
92161C
DAMPER
92161-2612
$0.98
92161D
DAMPER
92161-2613
$2.91
92161E
DAMPER
92161-2618
$1.00
92161F
DAMPER,20X550X10
92161-2649
$21.87
92172
SCREW,6X16
92172-0236
$0.85
92172A
SCREW,TAPPING,5X14
92172-0265
$1.34
92172B
SCREW,6X16
92172-0284
$1.34
92172C
SCREW,TAPPING,6X16
92172-0739
$0.85
92172D
SCREW,TAPPING,6X16
92172-1470
$0.86
92173
CLAMP
92173-2863
$2.76
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,6X18
130BA0618
$1.54
130C
BOLT-FLANGED,6X22
130BA0622
$1.29
