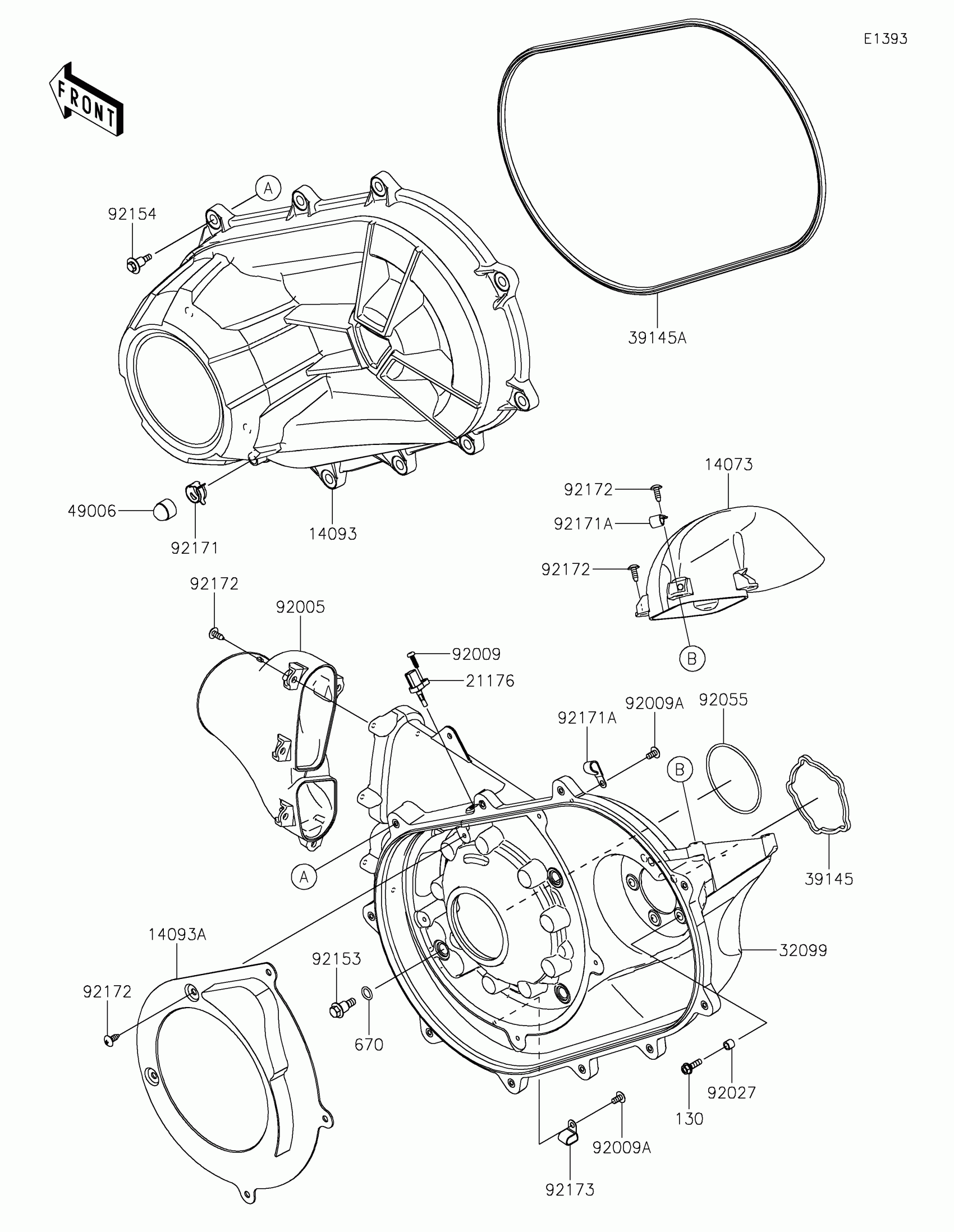

Kawasaki RIDGE® CREW HVAC Converter Cover Diagram

Description

Price

14073

DUCT,EXHAUST

14073-1915

$172.72

14093

COVER,CVT

14093-1453

$139.81

14093A

COVER,AIR GUIDE

14093-1454

$52.33

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

32099

CASE,CVT

32099-0829

$234.53

39145

TRIM-SEAL

39145-0714

$7.95

39145A

TRIM-SEAL,CVT COVER

39145-0760

$55.24

49006

BOOT,DRAIN

49006-3718

$6.62

92005

FITTING,INTAKE

92005-1450

$125.67

92009

SCREW,TAPPING,5X16

92009-1264

$3.13

92009A

SCREW,6X12

92009-1480

$3.21

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92055

RING-O,84.4X3.1

92055-0916

$4.67

92153

BOLT,8X26.5

92153-0594

$4.60

92154

BOLT,CVT COVER

92154-1522

$3.26

92171

CLAMP

92171-0329

$8.89

92171A

CLAMP

92171-0739

$5.65

92172

SCREW,6X16

92172-0284

$1.34

92173

CLAMP

92173-2439

$6.03

130

BOLT-FLANGED,6X20

130BA0620

$1.74

670

O RING,12MM

670D2012

$2.77
