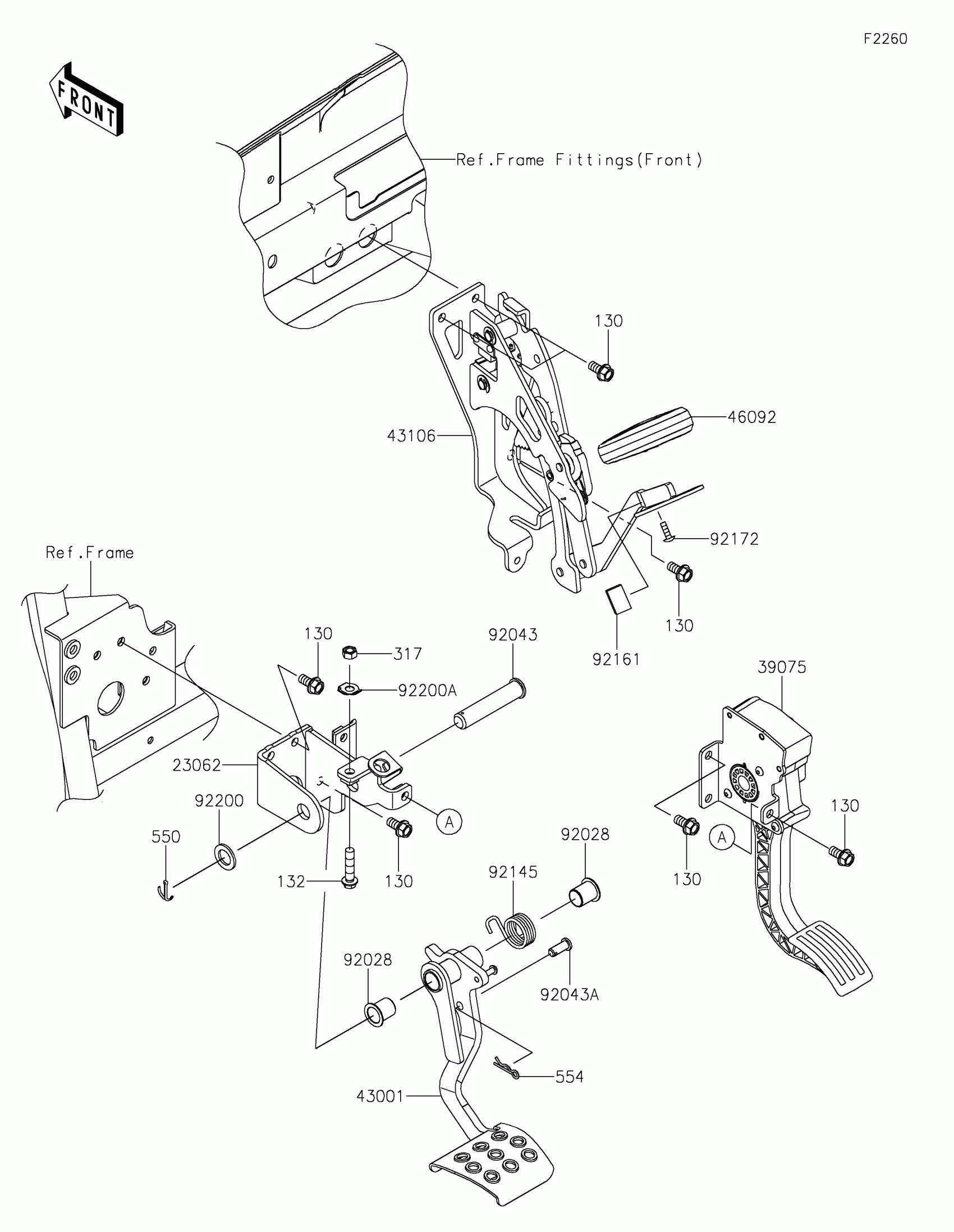

Kawasaki RIDGE® CREW HVAC Brake Pedal/Throttle Lever Diagram

Description

Price

23062

BRACKET-COMP,BRAKE PEDAL

23062-1443

$38.26

39075

LEVER-THROTTLE

39075-0034

$133.88

43001

LEVER-BRAKE,FOOT

43001-0790

$132.04

43106

LEVER-ASSY-PARKING BRAKE

43106-0011

$196.93

46092

LEVER-GRIP,PARKING

46092-0584

$3.66

92028

BUSHING

92028-1571

$10.67

92043

PIN,16X78

92043-0917

$14.64

92043A

92043-1039

$9.91

92145

SPRING

92145-2264

$10.28

92161

DAMPER,24X35X15

92161-2647

$2.01

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92200

WASHER,16X26X2.3

92200-0043

$7.65

92200A

WASHER,8.5X17X0.8

92200-0993

$4.92

130

BOLT-FLANGED,8X16

130BA0816

$1.12

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$4.76

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67

550

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
