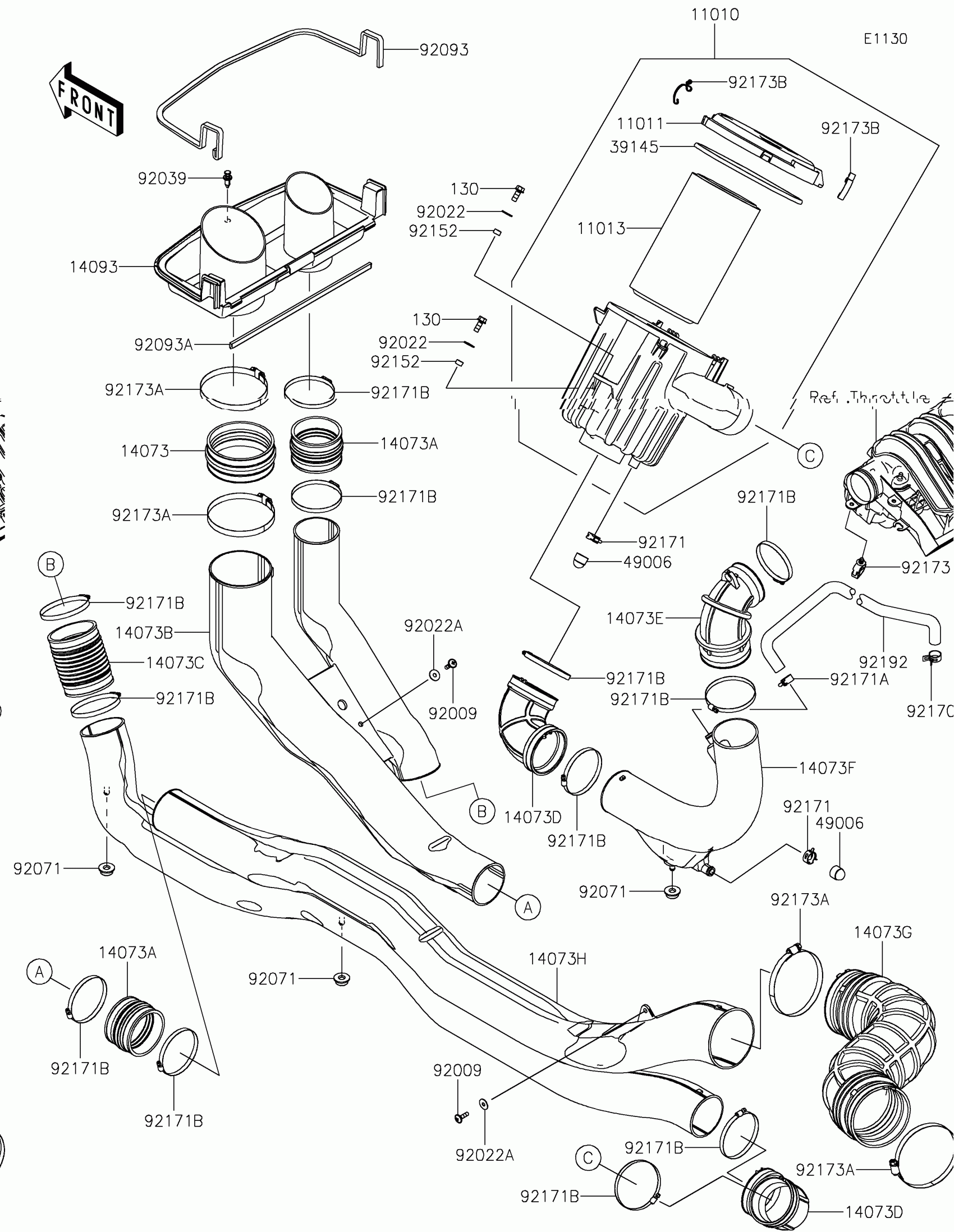

Kawasaki RIDGE® CREW HVAC Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1850

$168.79

11011

CASE-AIR FILTER,UPP

11011-0977

$14.25

11013

ELEMENT-AIR FILTER

11013-0782

$61.80

14073

DUCT

14073-0909

$4.96

14073A

DUCT,A/F CASE

14073-0923

$4.71

14073B

DUCT,CVT FR

14073-1906

$78.75

14073C

DUCT,CVT CNT

14073-1908

$10.90

14073D

DUCT,A/C BOX

14073-1912

$18.69

14073E

DUCT,THROTTLE

14073-1913

$24.31

14073F

DUCT,CHAMBER

14073-1922

$46.84

14073G

DUCT,CVT INTAKE

14073-1951

$85.54

14073H

DUCT,CVT RR

14073-1969

$153.70

14093

COVER,INTAKE

14093-1446

$25.07

39145

TRIM-SEAL

39145-0762

$13.54

49006

BOOT,DRAIN

49006-3718

$4.94

92009

SCREW,6X22

92009-1441

$3.29

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92022A

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0829

$3.68

92093

SEAL

92093-0792

$17.03

92093A

SEAL

92093-0793

$9.41

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.19

92170

CLAMP

92170-1060

$7.93

92171

CLAMP

92171-0329

$6.77

92171A

CLAMP

92171-1277

$2.25

92171B

CLAMP

92171-1383

$3.35

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP,130MM

92173-1938

$3.28

92173B

CLAMP,AIR FILTER CASE

92173-2023

$2.85

92192

TUBE,BREATHER

92192-2651

$24.76

130

BOLT-FLANGED,8X20

130BA0820

$3.04
