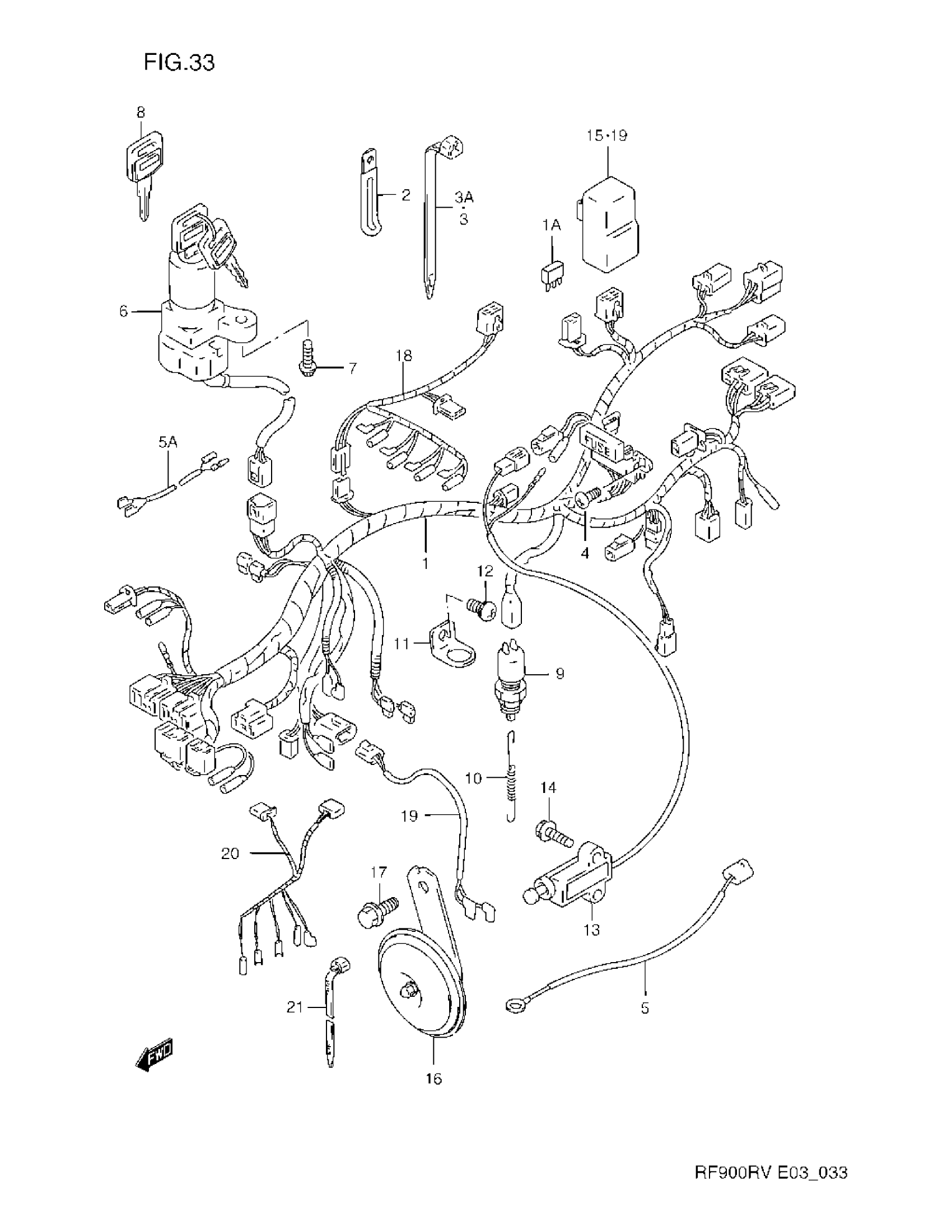

Suzuki RF900RV (1997) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL R This part replaces 36610-21E10.

36610-21E11

Unavailable

1

HARNESS, WIRING | MODEL S

36610-21E11

Unavailable

1

HARNESS, WIRING | MODEL T/V; Includes Item(s) 1A

36610-21E20

Unavailable

1A

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

2

CLAMP | MODEL R/S This part replaces 09404-06402.

09404-06039

$1.74

2

CLAMP | MODEL T/V

09404-06429

$1.83

3

CLAMP (L:125)

09407-14403

$2.26

3

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

3A

CLAMP (L:90)

09407-11402

$1.80

4

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

5

WIRE, OIL SWITCH LEAD

36851-17E10

Unavailable

5A

WIRE, CLUTCH SWITCH LEAD

36852-19D00

Unavailable

6

LOCK ASSY, STEERING This part replaces 37100-26D02.

37100-26D03

$194.77

7

BOLT

09139-06026

$2.50

8

KEY, BLANK | OPT

37146-26D10

$49.70

9

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

10

SPRING

09443-06012

$3.16

11

BRACKET, STOP SWITCH

43251-21E00

Unavailable

12

SCREW This part replaces 02142-06083.

02142-0608A

$1.49

13

SWITCH ASSY,SID | MODEL R This part replaces 37840-44A20.

37840-44X52

$57.00

13

SWITCH ASSY,SID | MODEL S/T/V This part replaces 37840-44X50.

37840-44X52

$57.00

14

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

15

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

16

HORN ASSY | MODEL R/S This part replaces 38502-21E00.

38502-21E02

Unavailable

16

HORN ASSY | MODEL T/V This part replaces 38502-21E01.

38502-21E02

Unavailable

17

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

18

WIRE, CARB HEATER LEAD | OPT,MODEL S/T/V

36859-21E00

Unavailable

19

RELAY ASSY, CARBURETOR HEATER | OPT,MODEL S/T/V

38740-24X50

$45.20

20

WIRE, CARB HEATER LEAD | OPT,MODEL T/V

36856-21E00

Unavailable

21

CLAMP, CARB HEATER (L:95) | OPT,MODEL T/V

09407-14403

$2.26
