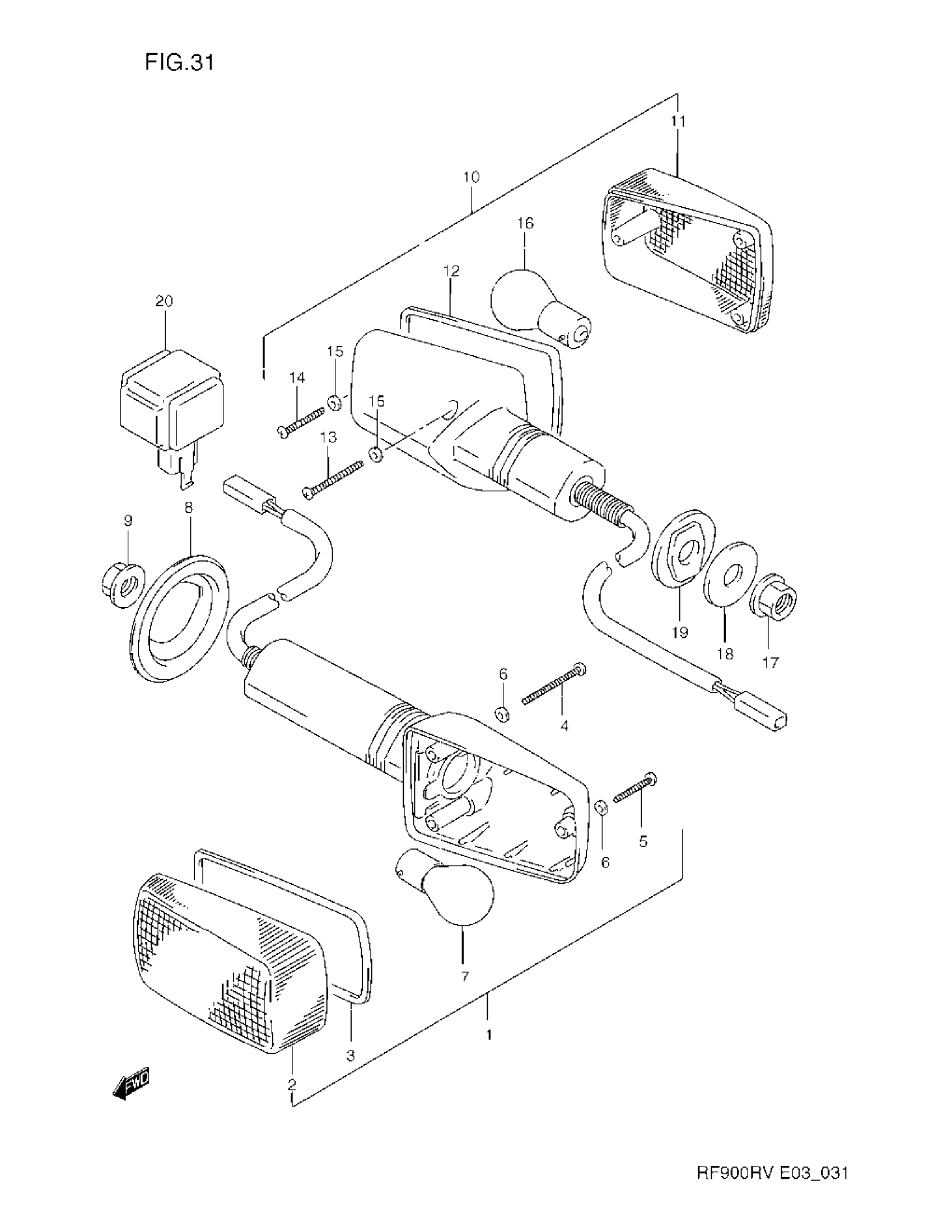

Suzuki RF900RV (1997) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL | MODEL R/S This part replaces 35601-29E10.

35601-29E30

$83.26

1

LAMP ASSY,FRONT TURNSIGNAL | MODEL T/V; Includes Item(s) 2 - 7

35601-29E30

$83.26

2

LENS

35612-17C20

$10.23

3

GASKET

35613-27A00

$4.46

4

TAPPING SCREW

35623-27A00

$1.87

5

TAPPING SCREW

35725-40511

$1.78

6

GASKET

35627-27A02

$1.78

7

BULB (12V,21W)

09471-12045

$3.06

8

GROMMET

35674-27A01

$9.43

9

NUT This part replaces 08316-10103.

08316-1010B

$2.74

10

LAMP ASSY, REAR TURNSIGNAL | Includes Item(s) 11 - 16

35603-21EC0

Unavailable

11

LENS

35652-17C20

$10.12

12

GASKET

35613-27A00

$4.46

13

TAPPING SCREW

35623-27A00

$1.87

14

TAPPING SCREW

35725-40511

$1.78

15

GASKET

35627-27A02

$1.78

16

BULB (12V,21W)

09471-12045

$3.06

17

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.74

17

NUT | MODEL S/T/V This part replaces 08310-00103.

08310-0010A

$1.94

18

WASHER

09160-10501

$2.40

19

SPACER

35695-17C00

$3.86

20

RELAY ASSY, TURNSIGNAL

38610-45D01

$88.43
