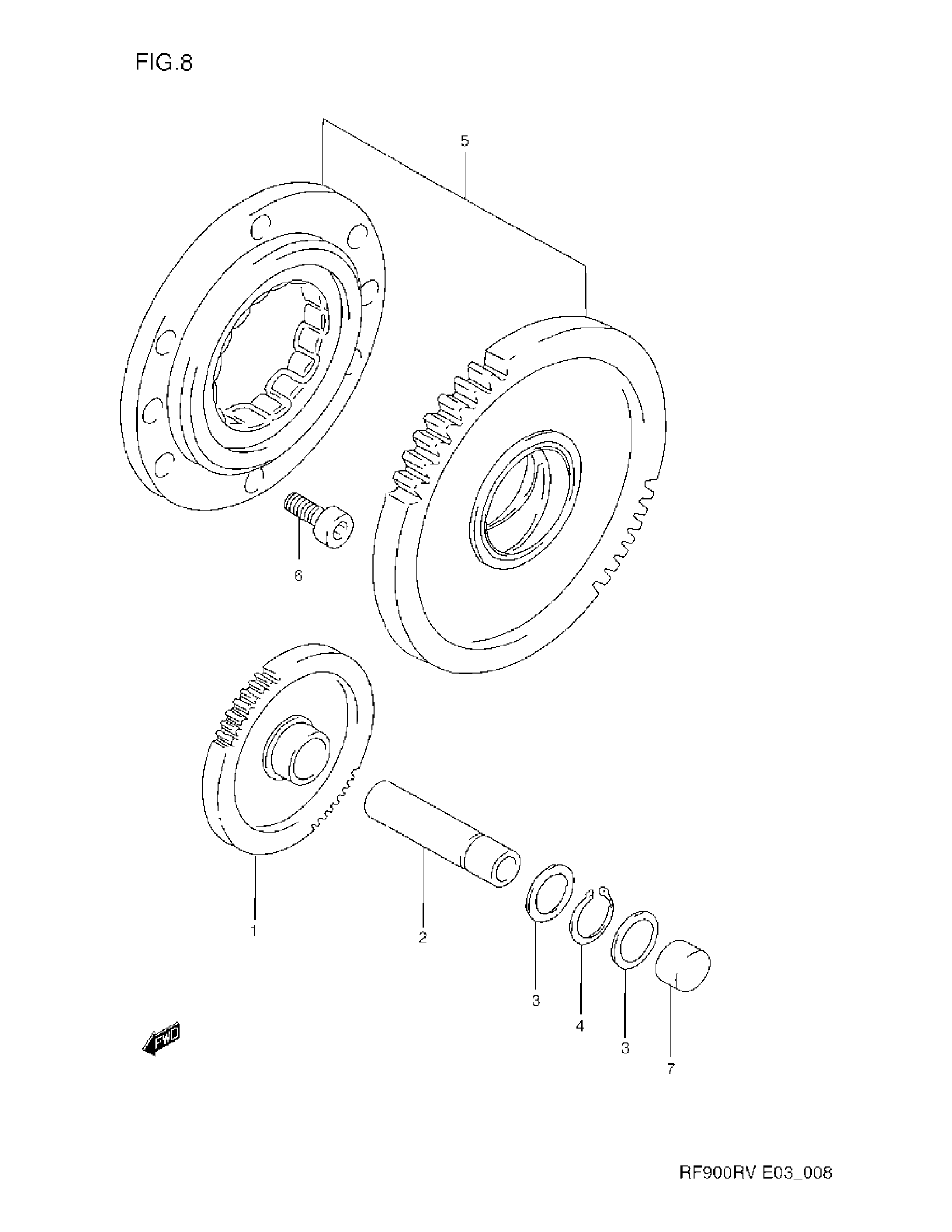

Suzuki RF900RV (1997) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE (NT:12/56)

12611-21E00

Unavailable

2

SHAFT, STARTER IDLE GEAR

12616-17E00

Unavailable

3

WASHER (12X18X0.5) | MODEL R/S/T This part replaces 08221-12185.

09181-12130

$2.14

3

WASHER | MODEL V

09181-12130

$2.14

4

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.82

5

CLUTCH SET, STARTER | MODEL R/S This part replaces 12600-21810.

12600-21811

Unavailable

5

CLUTCH SET, STARTER | MODEL T/V

12600-21811

Unavailable

6

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.44

6

BOLT | MODEL S/T/V This part replaces 07130-06123.

07130-0612A

$2.58

7

PLUG, STARTER IDLE SHAFT

09241-12006

Unavailable
