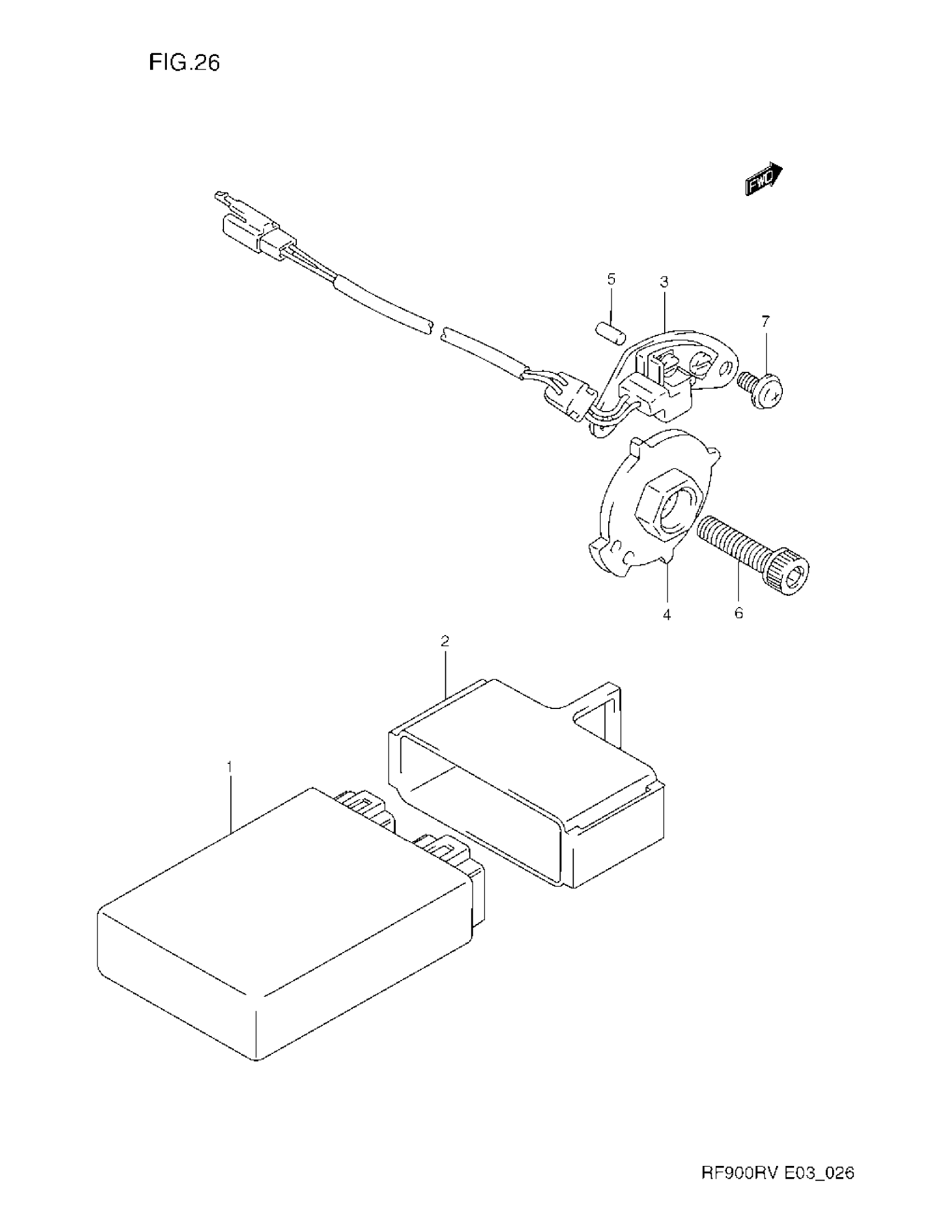

Suzuki RF900RV (1997) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER | MODEL R/S

32900-31E10

Unavailable

1

IGNITER | MODEL T/V

32900-31E50

Unavailable

2

CUSHION

32980-40C01

$15.83

3

SIGNAL GENERATOR ASSY

33110-17E00

Unavailable

4

ROTOR, SIGNAL

33120-17E20

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

7

SCREW | MODEL R This part replaces 02142-05103.

02142-0510B

$1.78

7

SCREW, THROTTLE | MODEL S/T/V This part replaces 02112-05103.

02112-0510A

$1.49
