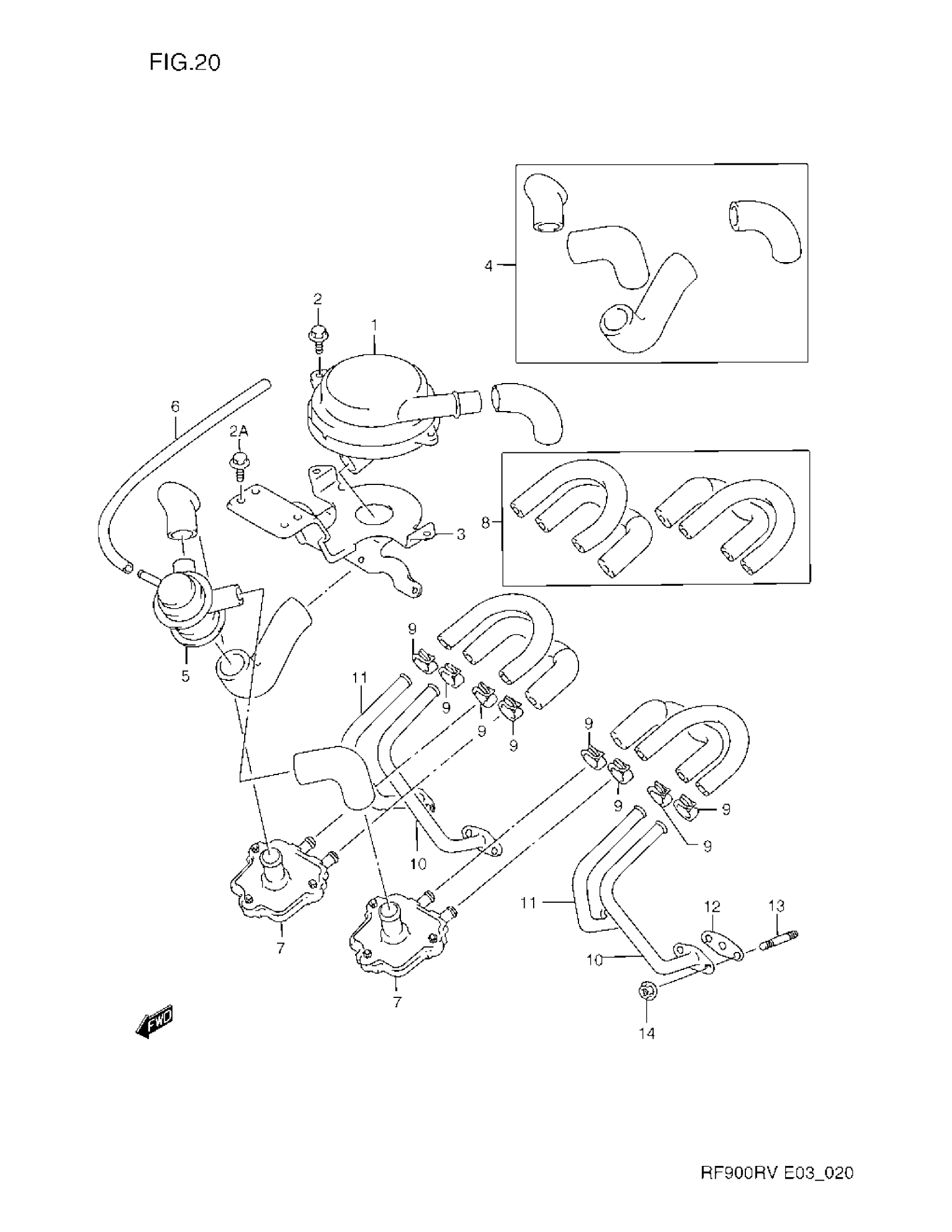

Suzuki RF900RV (1997) SECOND AIR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL R/S This part replaces 18700-26D01.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL T/V

18700-17C03

Unavailable

2

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

2A

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

3

BRACKET, 2ND AIR CLEANER

18750-21E00

Unavailable

4

HOSE SET

18420-17810

Unavailable

5

VALVE ASSY, AIR SWITCHING

18510-46E00

Unavailable

6

HOSE(4.5X8.5X60 | MODEL R/S/TL:600->300 This part replaces 09354-45853-600.

09355-45001-600

$9.48

6

HOSE(4.5X8.5X60 | MODEL VL:600->300 This part replaces 09355-45855-600.

09355-45001-600

$9.48

7

VALVE ASSY, 2ND AIR REED

18450-48B00

Unavailable

8

HOSE SET, 2ND AIR

18410-21810

Unavailable

9

CLAMP This part replaces 09401-13413.

09401-13417

$2.26

10

PIPE, 2ND AIR NO.1

18410-21E00

Unavailable

11

PIPE, 2ND AIR NO.2

18420-21E00

Unavailable

12

GASKET 2ND AIR PIPE This part replaces 18441-45C00.

18441-45C01

$7.05

13

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

14

NUT This part replaces 08316-10063.

08316-1006B

$2.50
