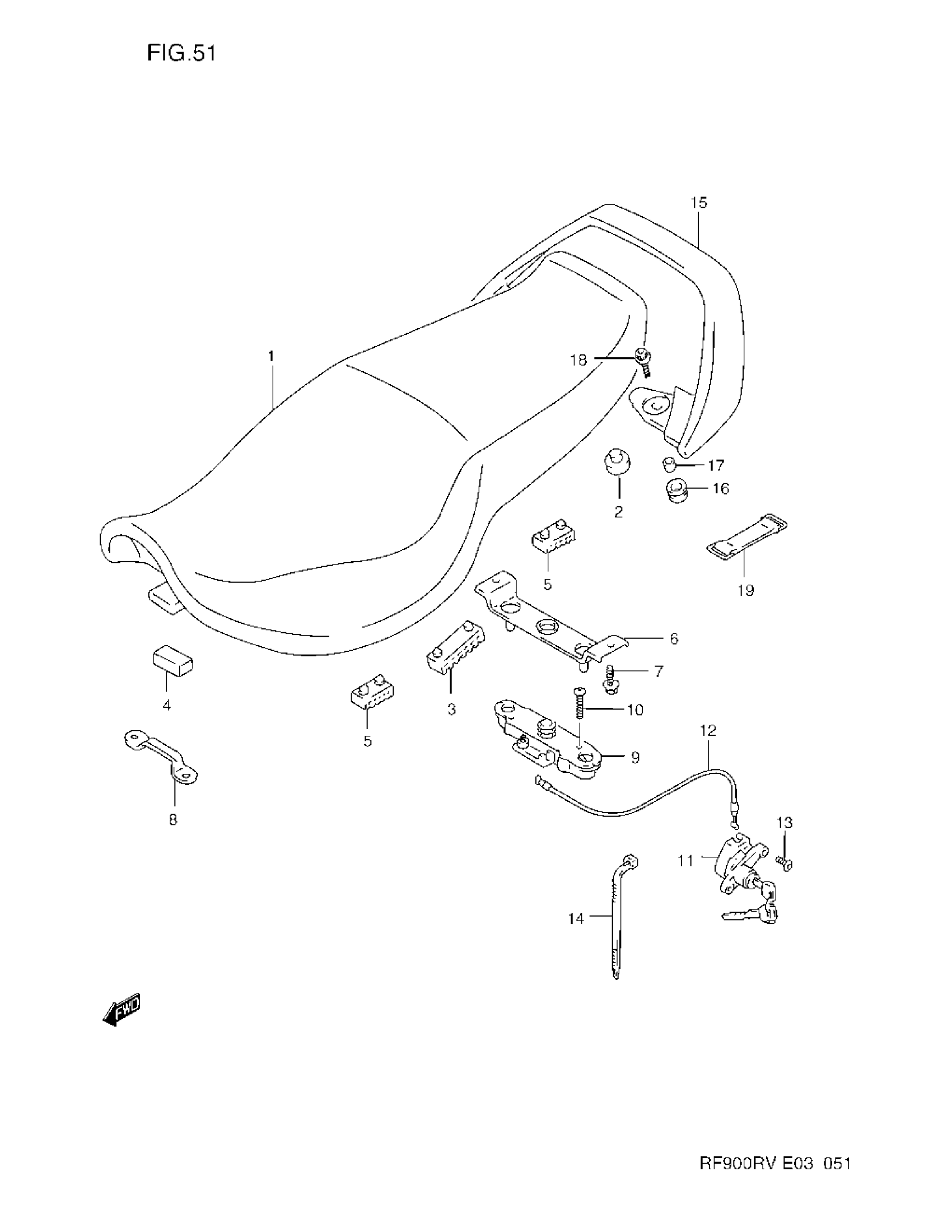

Suzuki RF900RV (1997) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 7

45100-31E00-6VP

Unavailable

2

CUSHION, REAR

09321-10011

$2.91

3

CUSHION, CENTER | INCLUDE OTHER SIDE ALSO

45148-31E00

$8.69

4

CUSHION, CENTER

45149-31E00

$6.92

5

CUSHION | INCLUDE OTHER SIDE ALSO

45149-31300

$3.56

6

STRIKER, SEAT LOCK

45210-22D01

Unavailable

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

PLATE, SEAT FRONT HOOK

45119-17E00

$14.45

9

BRACKET, SEAT SUPPORT REAR

45220-13601

$80.52

10

SCREW, SEAT SUPPORT BRK | MODEL R/SMODEL T/V This part replaces 02112-06303.

02112-0630A

$1.78

11

LOCK SET,SEAT | MODEL R This part replaces 95700-12851.

95700-12853

$137.02

11

LOCK SET,SEAT | MODEL S/T/V This part replaces 95700-12852.

95700-12853

$137.02

12

CABLE, SEAT LOCK

45280-12D00

Unavailable

13

SCREW (6X12) | MODEL R/S/T

09139-06075

Unavailable

13

SCREW (6X14) | MODEL V

09139-06092

$2.83

14

CLAMP | MODEL R/SMODEL T/V This part replaces 09407-18403.

09407-18402

$2.19

15

HANDLE, PILLION (BLACK) | RF900RR FOR 33J This part replaces 46211-31E00-019.

46211-31E00-33J

Unavailable

15

HANDLE, PILLION (RED) | RF900RR/RS

46211-31E00-19A

Unavailable

15

HANDLE, PILLION (GREEN) | RF900RS

46211-31E00-1UH

Unavailable

15

HANDLE, PILLION (SILVER) | RF900RZS

46211-31E00-0FP

Unavailable

15

HANDLE, PILLION (GRAY) | RF900RT FOR F3C

46211-31E00-17U

Unavailable

15

HANDLE, PILLION (BLACK) | RF900RT FOR E6M

46211-31E00-33J

Unavailable

15

HANDLE, PILLION (BLACK) | RF900RV FOR 7AY,G4H This part replaces 46211-31E00-019.

46211-31E00-33J

Unavailable

16

CUSHION

09320-20008

$4.32

17

WASHER

09160-08135

$2.35

18

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

19

BAND, TOOL

09462-00008

$4.77
