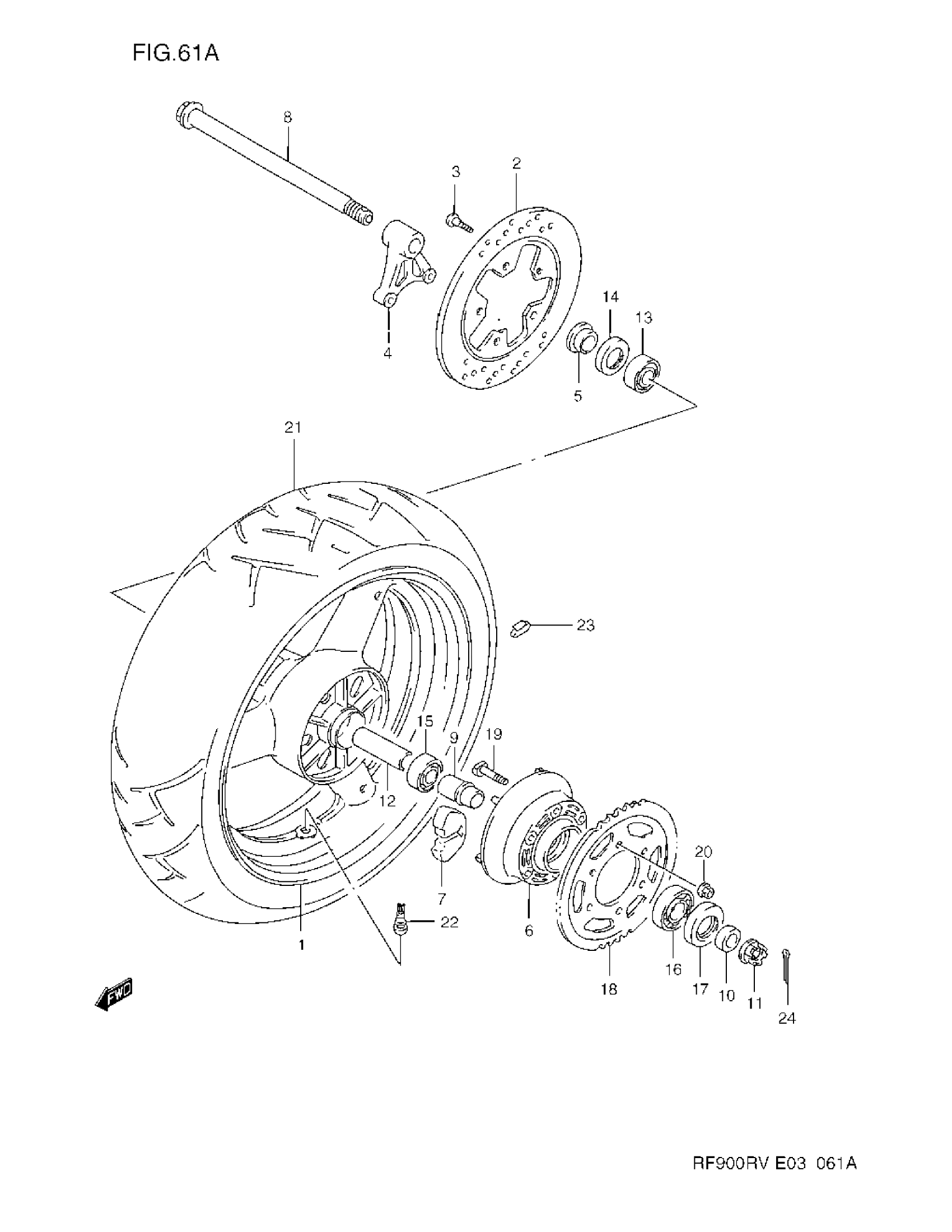

Suzuki RF900RV (1997) REAR WHEEL (MODEL T/V) Diagram

#

Description
Price

1

WHEEL,RR,17M/CX | FOR F3C,E6M,7AY,G4H This part replaces 64111-17E11-12R.

64111-17E12-12R

Unavailable

2

DISC, REAR BRAKE

69211-21E00

$388.57

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS

69721-46E00

Unavailable

5

SPACER, RH

64741-17E00

$25.52

6

DRUM, SPROCKET

64611-17E00

Unavailable

7

SHOCK ABSORBER, DRUM

64651-17E00

$15.63

8

AXLE, REAR

64711-17E10

Unavailable

9

RETAINER, DRUM

64733-48B00

$27.45

10

SPACER, LH

64751-46E00

$17.82

11

NUT

09141-20004

$29.20

12

SPACER, BEARING

64731-40C00

$25.75

13

BEARING, RH (20X47X14)

09262-20114

$32.57

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

15

BEARING, LH (20X47X14)

09262-20042

$23.28

16

BEARING, DRUM (25X62X17)

09262-25114

$54.63

17

SEAL,OIL (35X62X8)

09285-35001

$10.19

18

SPROCKET, REAR (NT:43)

64511-31E00

Unavailable

19

BOLT

09119-10037

$4.32

20

NUT

08319-31107

$2.73

21

TIRE, REAR 170/60 ZR17 (72W)

65110-31E00

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

23

BALANCER (10G)

55411-00A00

$1.49

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

24

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
