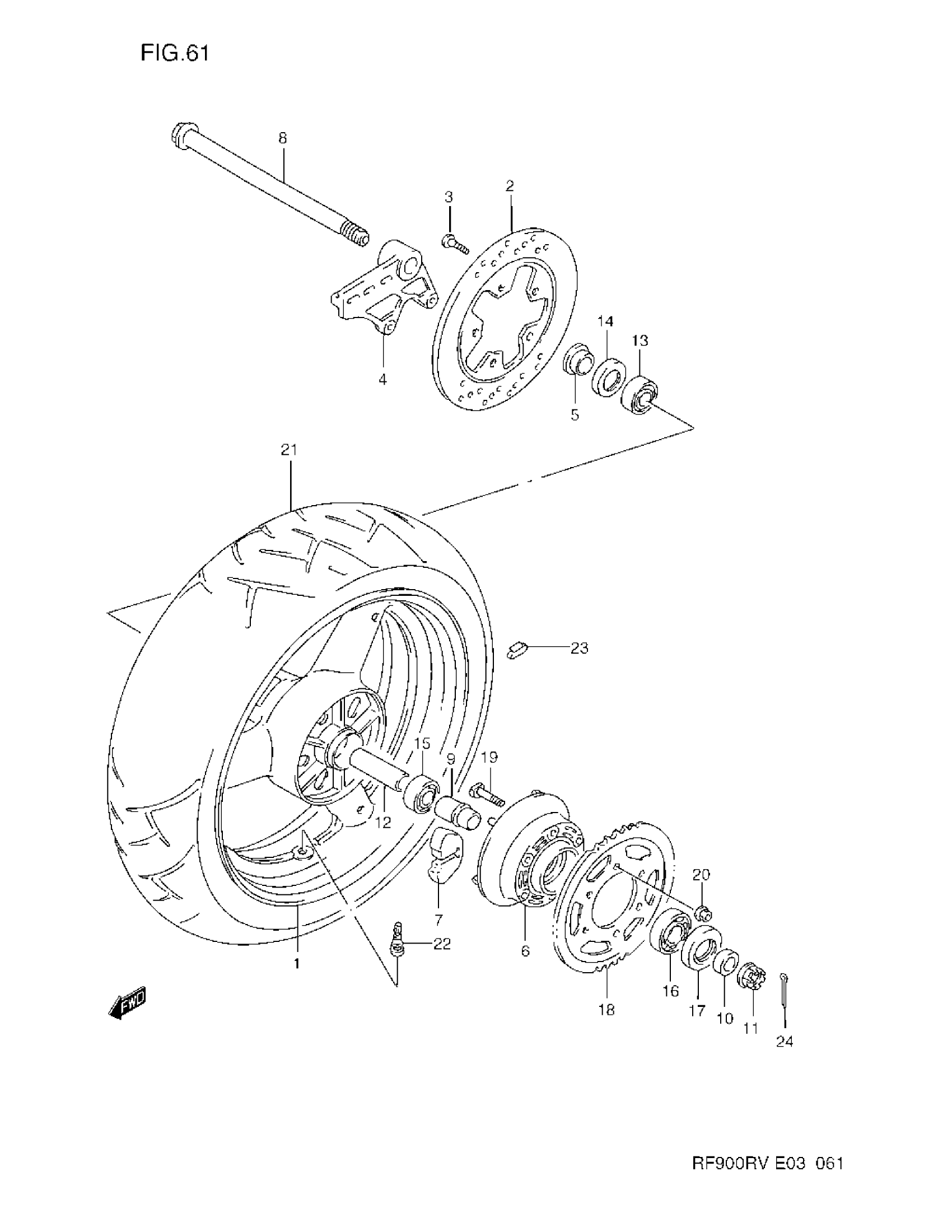

Suzuki RF900RV (1997) REAR WHEEL (MODEL R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | RF900RR FOR 33J This part replaces 64111-17E10-1TU.

64111-17E12-1TU

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 19A,1UH This part replaces 64111-17E10-35W.

64111-17E12-35W

Unavailable

1

WHEEL,REAR,MT4. | RF900RZSFOR D8A This part replaces 64111-17E10-Y22.

64111-17E11-Y22

Unavailable

2

DISC, REAR BRAKE

69211-21E00

$432.40

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.33

4

BRACKET, REAR CALIPERS This part replaces 69721-31E00.

69721-17E10

Unavailable

5

SPACER, RH

64741-17E00

$28.80

6

DRUM, SPROCKET

64611-17E00

Unavailable

7

SHOCK ABSORBER, DRUM

64651-17E00

$17.63

8

AXLE, REAR

64711-17E10

Unavailable

9

RETAINER, DRUM

64733-48B00

$30.98

10

SPACER, LH

64751-46E00

$20.12

11

NUT

09141-20004

Unavailable

12

SPACER, BEARING

64731-40C00

$29.07

13

BEARING, RH (20X47X14)

09262-20114

$35.40

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

15

BEARING, LH (20X47X14)

09262-20042

$21.31

16

BEARING, DRUM (25X52X17)

09262-25114

$59.37

17

SEAL,OIL (35X62X8)

09285-35001

$9.33

18

SPROCKET, REAR (NT:43)

64511-31E00

Unavailable

19

BOLT

09119-10037

$4.70

20

NUT

08319-31107

$2.73

21

TIRE, REAR (170/60 ZR17)

65110-31E00

Unavailable

21

TIRE, REAR 170/60 ZR17 (72W) | MODEL S This part replaces 65110-31E10.

65110-31E00

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.10

23

BALANCER (10G)

55411-00A00

$1.35

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$5.14

24

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

25

REFER TO FIG.61A(J-6) FOR

SPECIAL NOTE

Unavailable
