1997 Suzuki RF900RV Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

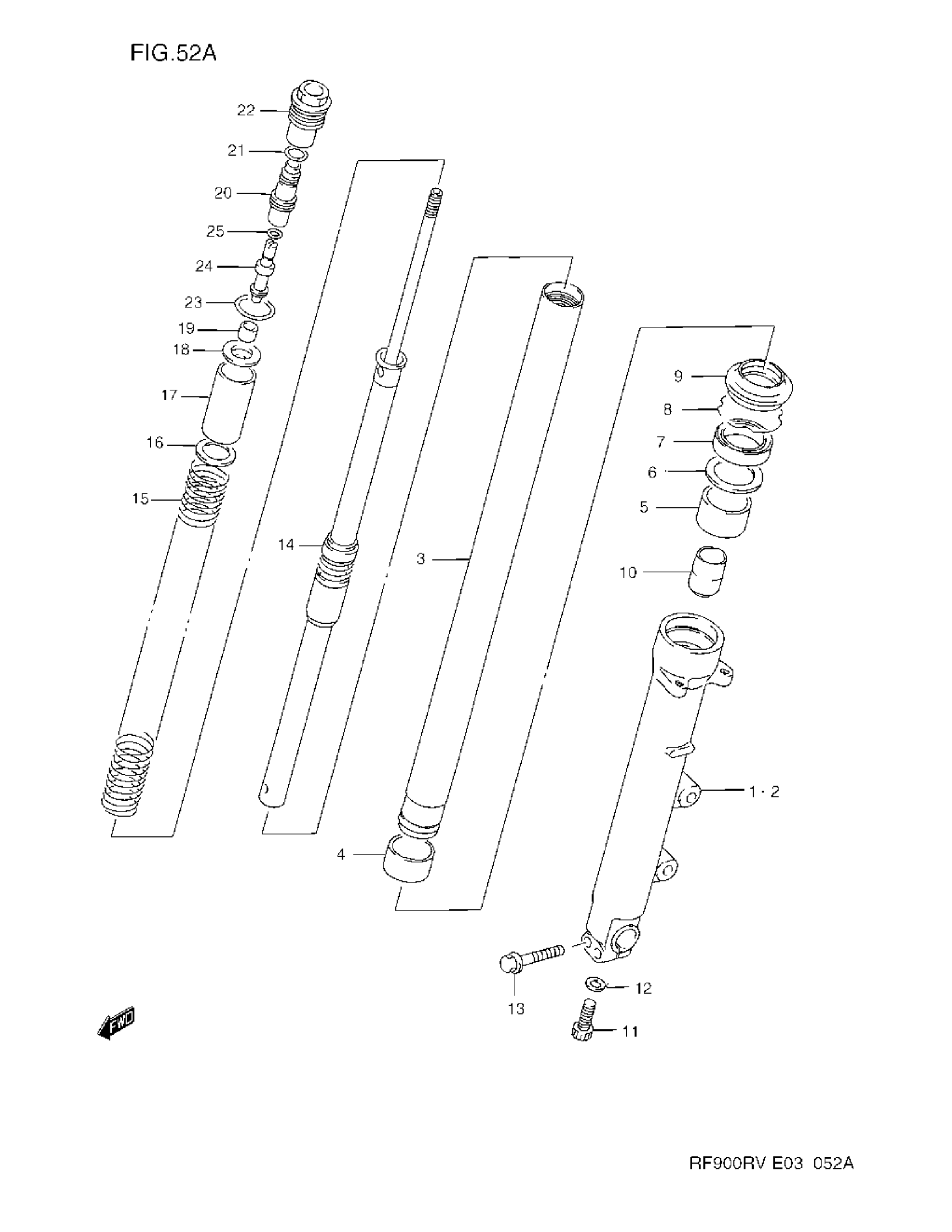

1997 Suzuki RF900RV Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, FRONT FORK RH

51103-31E20

1
Out of stock

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 25

51104-31E20

1
Out of stock

1

TUBE, OUTER RH

51130-31E00

1
Out of stock

2

TUBE, OUTER LH

51140-31E00

1
Out of stock

3

TUBE, INNER

51110-31E20

2
Out of stock

4

.BUSH,SLIDE This part replaces 51121-17C00.

51121-07J00

2
Out of stock

5

BUSH, GUIDE

51152-31E00

2
Out of stock

6

.SPACER, SEAL

51168-17C00

2
Out of stock

7

OIL SEAL

51153-14D00

2
Out of stock

8

RING, STPPER

51556-38B00

2
Out of stock

9

DUST SEAL

51173-29E00

2
Out of stock

10

PIECE, OIL LOCK

51195-31E00

2
Out of stock

11

BOLT, CYLINDER

51147-48130

2
Out of stock

12

GASKET

51148-36011

2
Out of stock

13

BOLT, RH

01550-08457

2
Out of stock

14

ROD, DAMPER

52110-31E20

2
Out of stock

15

SPRING

51171-31E20

2
Out of stock

16

SEAT, SPRING LOWER

51186-17C00

2
Out of stock

17

SPACER, SPRING

51176-17C00

2
Out of stock

18

SEAT, SPRING UPPER

51172-17C00

2
Out of stock

19

NUT

51827-17C00

2
Out of stock

20

ADJUSTER, SPRING

51185-31E20

2
Out of stock

21

O RING (ID:13.8,D:2.50)

09280-14011

2
Out of stock

22

BOLT, FORK

51189-17C00

2
Out of stock

23

O RING

51117-17C00

2
Out of stock

24

PIECE, ADJUSTER

51821-31E20

2
Out of stock

25

O RING (ID:3.8,D:1.90)

09280-03002

2
Out of stock
