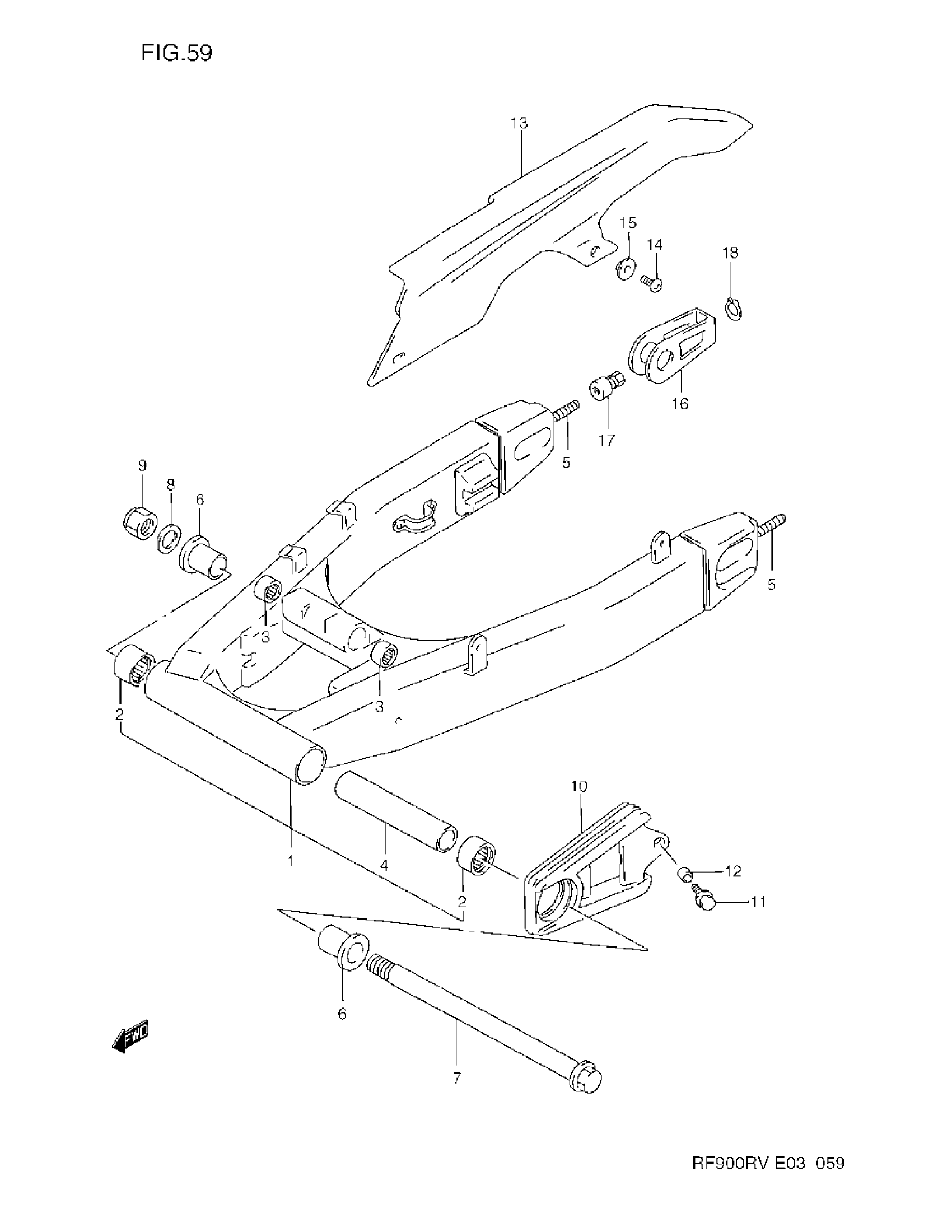

Suzuki RF900RV (1997) REAR SWINGING ARM (MODEL R/S) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 5

61000-31E01

Unavailable

2

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

SPACER

61282-31E00

Unavailable

5

BOLT,STUD This part replaces 61431-40C00.

09108-08261

$6.47

6

SPACER,PIVOT BEARING

61251-31E00

$59.25

7

SHAFT, PIVOT

61211-31E00

$128.72

8

WASHER This part replaces 09160-18026.

09160-18030

$2.56

9

NUT

09159-18007

$19.68

10

BUFFER,CHAIN TO This part replaces 61273-17E02.

61273-17E03

Unavailable

11

BOLT This part replaces 09116-06111.

09116-06152

$2.36

12

SPACER (6.5X10X7) This part replaces 09180-06002.

09180-06283

$1.91

13

CASE, CHAIN This part replaces 61310-45D11.

61310-45D12

Unavailable

14

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

15

WASHER

09169-06026

$2.20

16

ADJUSTER, CHAIN

61411-40C00

$14.85

17

NUT, CHAIN ADJUSTER | MODEL R->61415-22D00 This part replaces 61415-40C00.

61415-22D00

$25.60

17

NUT, CHAIN ADJUSTER | MODEL S

61415-22D00

$25.60

18

CIRCLIP This part replaces 08331-31136.

08331-3113A

$2.23

19

REFER TO FIG.59A(J-3) FOR

SPECIAL NOTE

Unavailable
