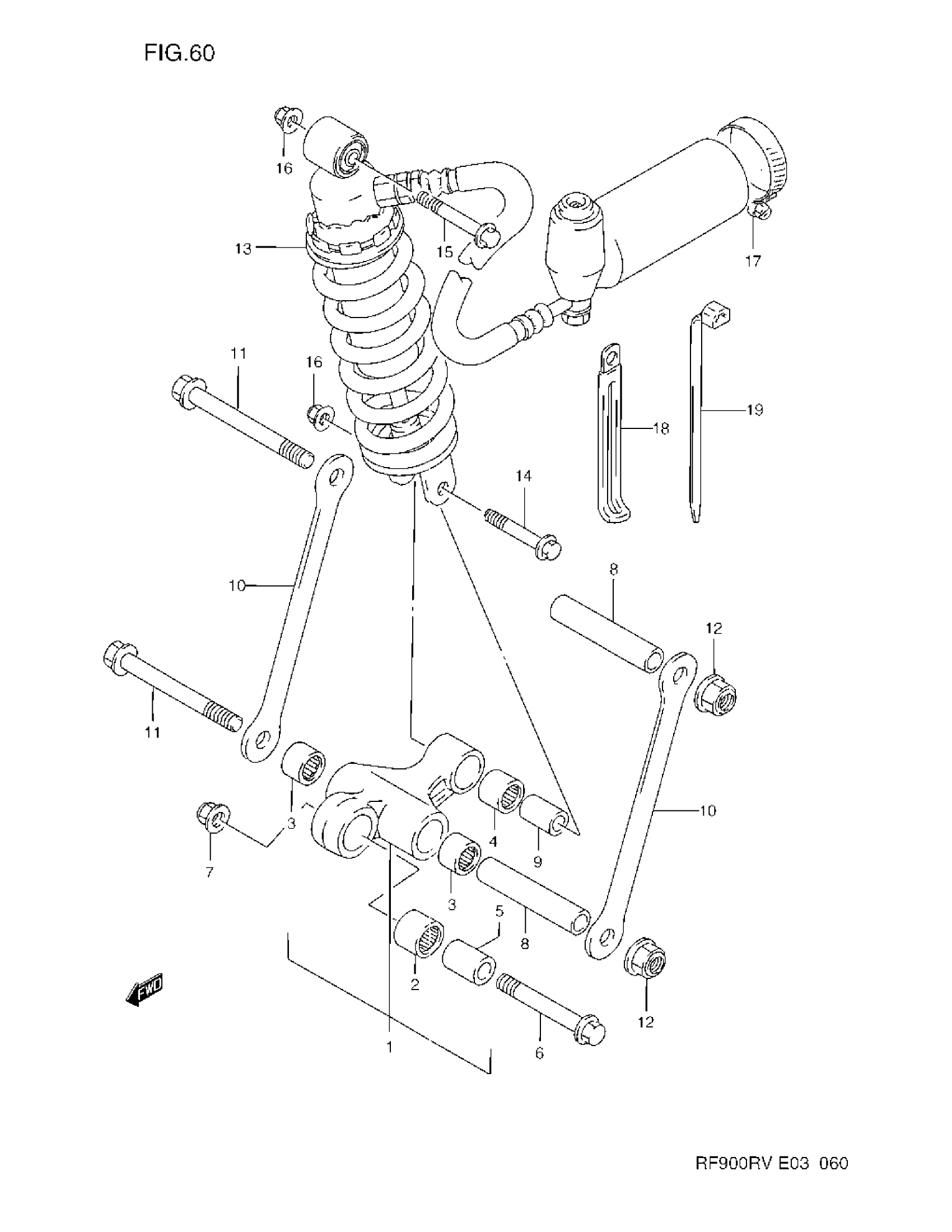

Suzuki RF900RV (1997) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-33871

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, LEVER FRONT

62684-01D00

$19.37

6

BOLT, LEVER FRONT

62668-42A02

$10.67

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

SPACER (12X17X85)

09180-12122

$23.05

9

SPACER, LEVER REAR

62684-40A10

$12.15

10

ROD, REAR CUSHION LEVER

62641-37D00

Unavailable

11

BOLT (12X115)

09103-12037

$13.53

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

ABSORBER ASSY, REAR SHOCK | ->62100-31E01 This part replaces 62100-31E10.

62100-31E01

Unavailable

13

ABSORBER ASSY, REAR SHOCK

62100-31E01

Unavailable

14

BOLT, LOWER (10X58)

09103-10027

$4.60

15

BOLT, UPPER (10X50)

09103-10064

$5.52

16

NUT

08319-31107

$2.73

17

CLAMP, TANK

09402-50511

$11.73

18

CLAMP | MODEL R/S This part replaces 09404-08405.

09404-08420

$3.16

18

CLAMP (L:80) | MODEL T/V This part replaces 09404-08419.

09404-08422

$2.65

19

CLAMP This part replaces 09407-18403.

09407-18402

$2.19
