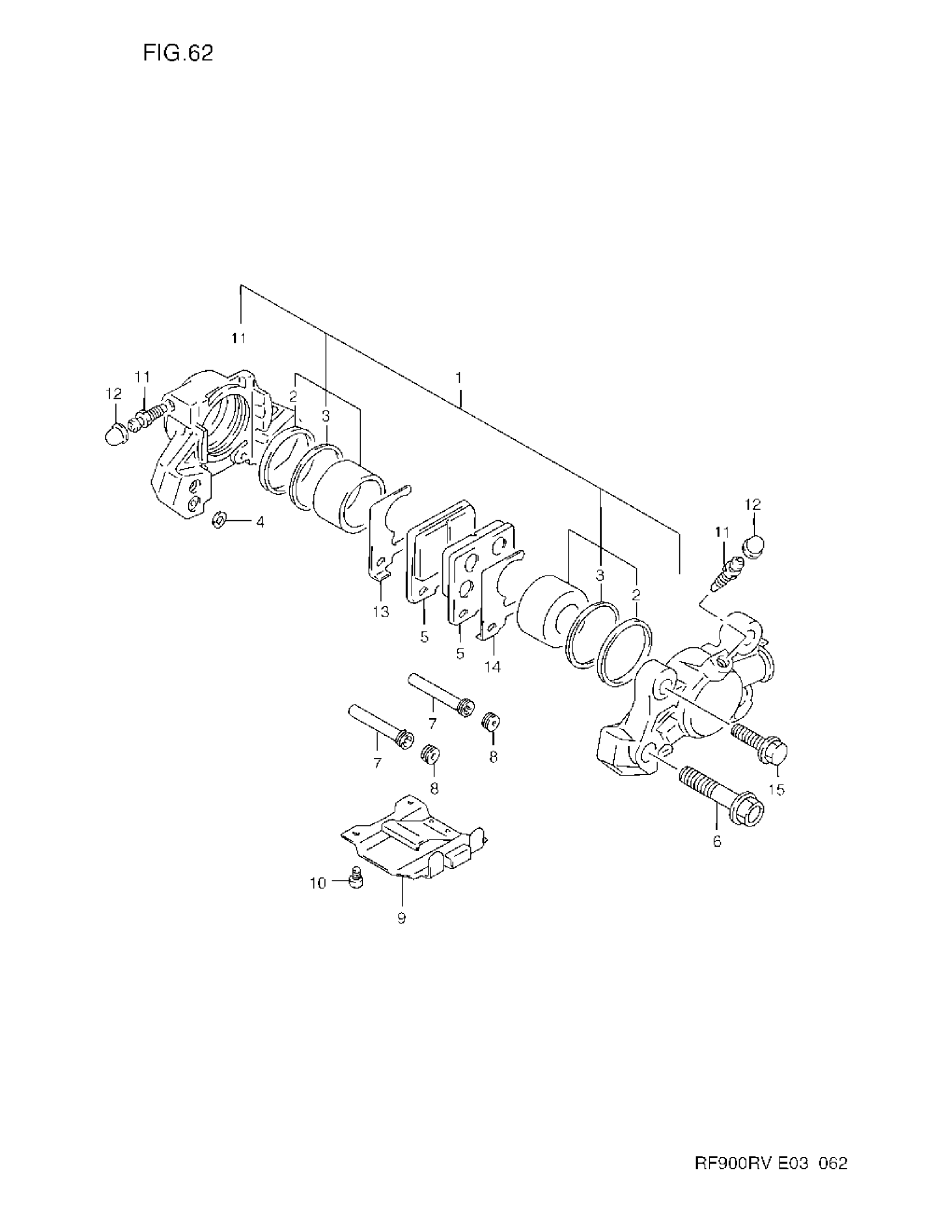

Suzuki RF900RV (1997) REAR CALIPER (MODEL R/S) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

69100-31E00

Unavailable

1

PISTON SET This part replaces 69100-32810.

69100-05851

$59.83

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

69108-32B00

$24.64

4

SEAL

69107-34200

$10.71

5

PAD SET | ->69100-31830 This part replaces 69130-31E00.

69100-31830

Unavailable

6

BOLT

59145-17C00

Unavailable

7

PIN

69141-31E00

Unavailable

8

PLUG, PAD PIN

69146-31E00

Unavailable

9

COVER

69151-31E00

Unavailable

10

.SCREW

59153-22D00

$6.30

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM, INNER

69133-31E00

Unavailable

14

SHIM, OUTER

69134-31E00

Unavailable

15

BOLT This part replaces 01550-08303.

01550-0830A

$3.04

16

REFER TO FIG.62A(J-8) FOR

SPECIAL NOTE

Unavailable
