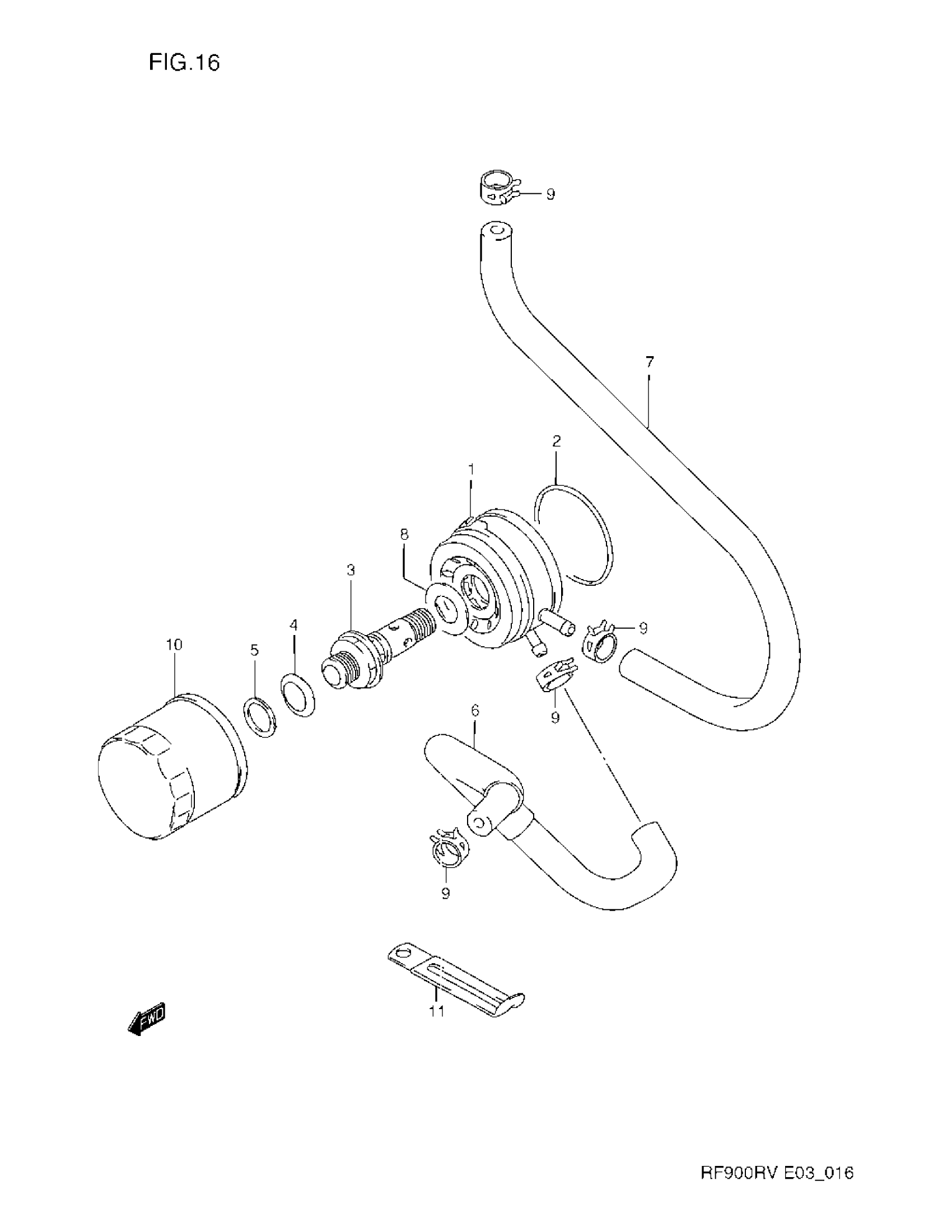

Suzuki RF900RV (1997) OIL COOLER - OIL FILTER Diagram

#

Description

Price

1

COOLER ASSY, OIL

16600-17E00

Unavailable

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

3

BOLT, OIL COOLER UNION

16591-33C00

Unavailable

4

WASHER, OIL FILTER WAVE

16513-31E00

Unavailable

5

WASHER (20X26X1) | MODEL R/S/T This part replaces 08211-20261.

09181-20139

$2.62

5

WASHER (20X26X1) | MODEL V

09181-20139

$2.62

6

HOSE, OIL COOLER,WATER IN

16461-31E00

Unavailable

7

HOSE, OIL COOLER,WATER OUT

16471-17E02

Unavailable

8

WASHER

08221-22355

Unavailable

9

CLIP This part replaces 09401-13410.

09401-12414

$3.26

10

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

$13.10

11

CLAMP | MODEL R This part replaces 09404-06402.

09404-06039

$1.74

11

CLAMP (L:45) | MODEL S/T/V

09404-06429

$1.83
