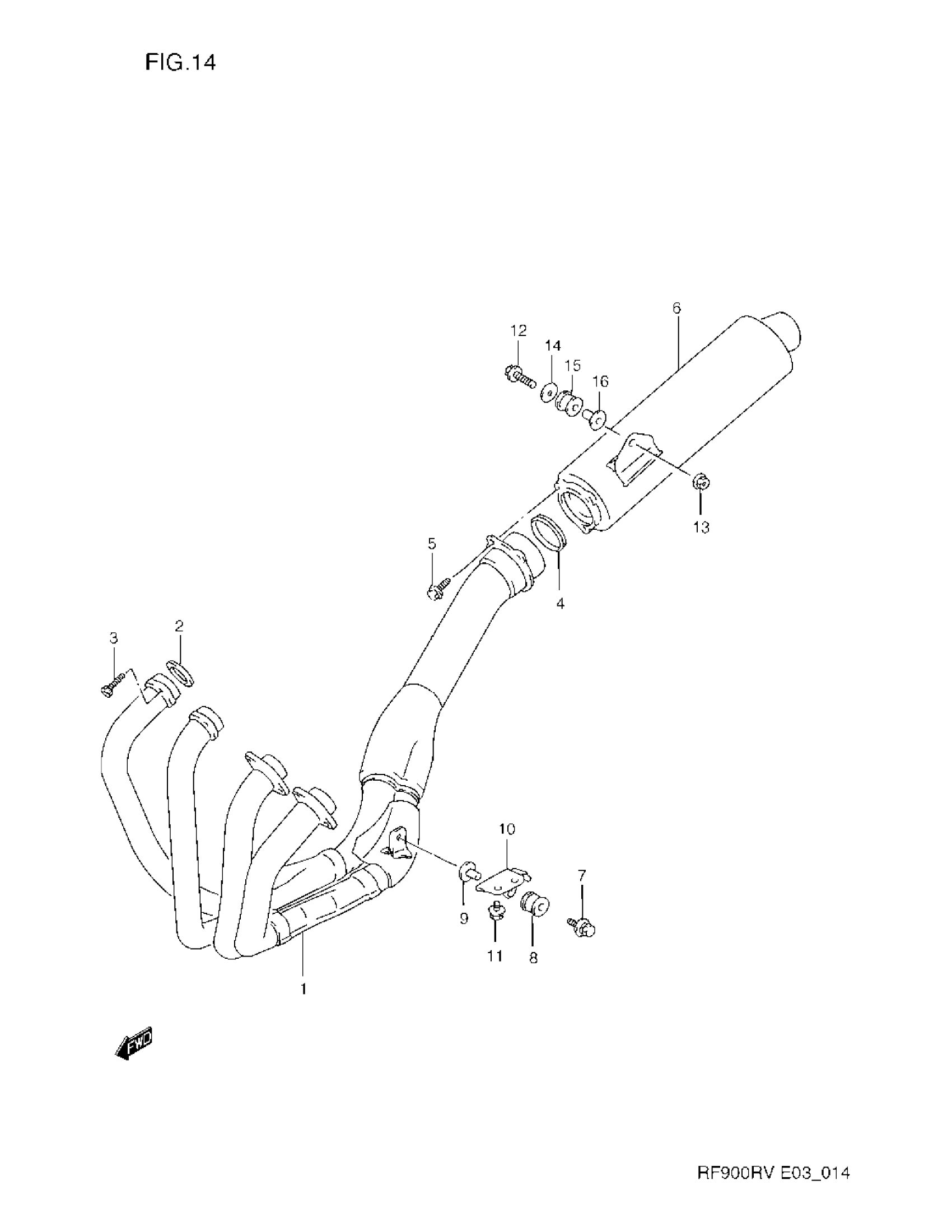

Suzuki RF900RV (1997) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14100-31E00

Unavailable

2

GASKET, EXHAUST PIPE

14181-17E00

$11.68

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

GASKET, MUFFLER JOINT

14181-31E00

Unavailable

5

BOLT, MUFFLER JOINT (8X20)

09106-08132

Unavailable

6

BODY, MUFFLER | RF900RR This part replaces 14310-31E00-H01.

14310-31E50-H01

Unavailable

6

BODY, MUFFLER | RF900RS This part replaces 14310-31E01-H01.

14310-31E50-H01

Unavailable

6

BODY, MUFFLER | RF900RZS/RT/RV

14310-31E50-H01

Unavailable

7

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

8

CUSHION

09320-12064

Unavailable

9

SPACER

09180-08152

$5.83

10

BRACKET, MUFFLER

14770-31E00

Unavailable

11

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

12

BOLT

01550-08457

$4.00

13

NUT | MODEL R/S This part replaces 08361-25083.

08361-2508A

$1.97

13

NUT | MODEL T/V This part replaces 08361-25088.

08361-2508A

$1.97

14

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.60

15

CUSHION

09320-12049

$10.68

16

SPACER

09180-08156

$6.70
