1997 Suzuki RF900RV Installation Parts Diagram

← All diagrams

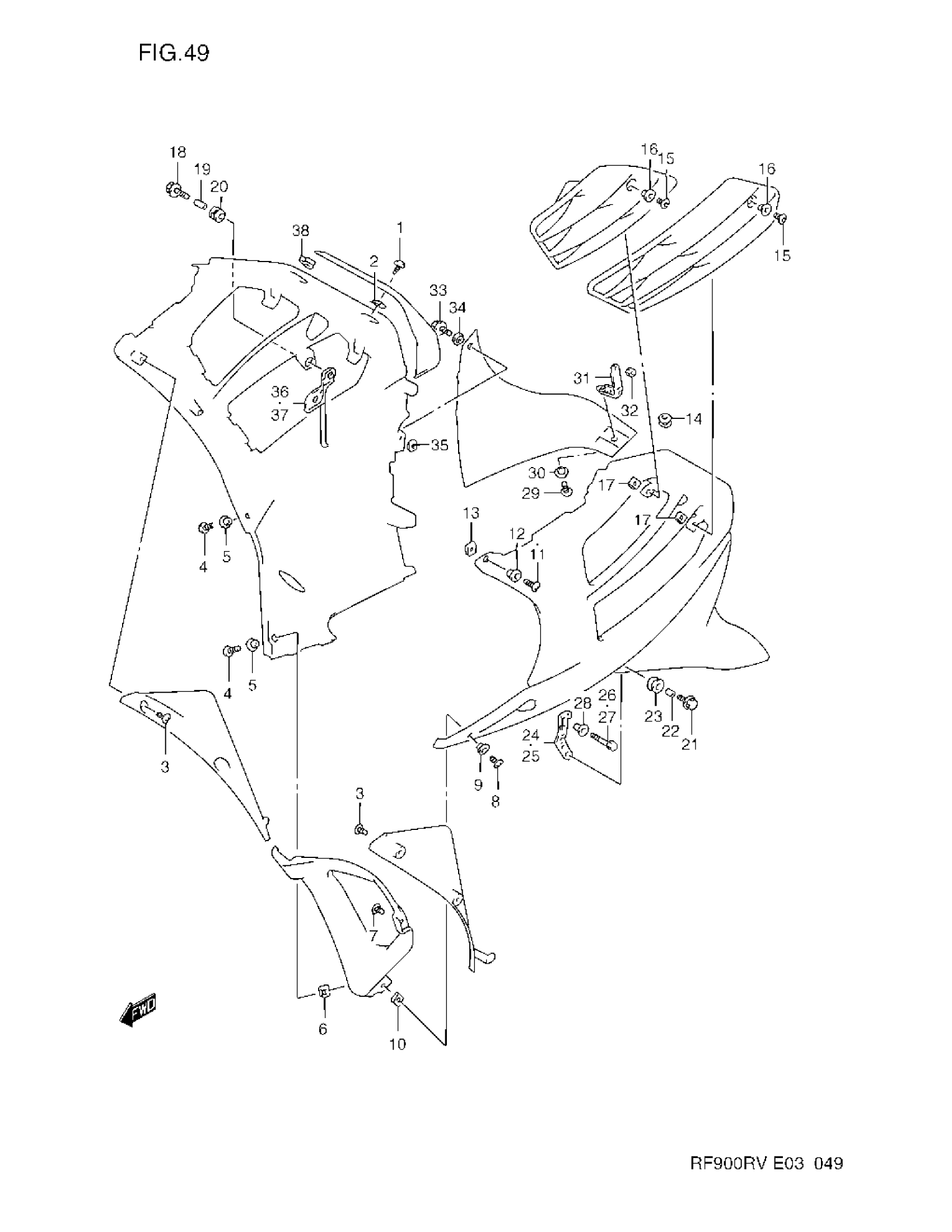

Find the part on the Installation Parts diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki RF900RV Installation Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

6
Out of stock

2

NUT

09148-05038

6
Out of stock

3

SCREW This part replaces 03541-05103.

03541-0510A

6
Out of stock

4

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

2
Out of stock

5

WASHER

09161-05017

2
Out of stock

6

2

$3.95

In stock

7

SCREW This part replaces 03541-05103.

03541-0510A

1
Out of stock

8

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

1
Out of stock

9

WASHER

09161-05017

1
Out of stock

10

1

$3.95

In stock

11

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

12

WASHER

09161-05017

4
Out of stock

13

4

$3.95

In stock

14

CUSHION, SIDE PANEL LH

09320-03004

1
Out of stock

15

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

16

WASHER

09161-05017

4
Out of stock

17

4

$3.95

In stock

18

BOLT (6X20) | MODEL R/S This part replaces 09116-06056.

09116-06115

2
Out of stock

18

BOLT, COVER LOWER (6X20) | MODEL T/V

09116-06115

2
Out of stock

19

SPACER

09180-06307

2
Out of stock

20

CUSHION

09320-09016

2
Out of stock

21

BOLT (6X20) | MODEL R/S This part replaces 09116-06056.

09116-06115

2
Out of stock

21

BOLT, UNDER COWL (6X20) | MODEL T/V

09116-06115

2
Out of stock

22

SPACER

09180-06307

2
Out of stock

23

CUSHION

09320-09016

2
Out of stock

24

BRACKET, UNDER COWL RH

94740-21E21

1
Out of stock

25

BRACKET, UNDER COWL LH

94750-21E20

1
Out of stock

26

BOLT, RH (6X55)

01570-06553

1
Out of stock

27

1

$3.30

In stock

28

SPACER

09180-06202

2
Out of stock

29

.SCREW This part replaces 02142-05123.

02142-0512A

2
Out of stock

30

WASHER

09161-05017

2
Out of stock

31

BRACKET, REAR

94761-21E00

1
Out of stock

32

NUT This part replaces 08316-20063.

08316-2006A

1
Out of stock

33

SCREW, SCREEN | MODEL R This part replaces 09139-05022.

09139-05042

4
Out of stock

33

SCREW, REAR (5X14) | MODEL S/T/V

09139-05024

4
Out of stock

34

WASHER

09161-05017

4
Out of stock

35

4

$3.95

In stock

36

BRACKET, UNDER COWL RH

94531-31E00

1
Out of stock

37

BRACKET, UNDER COWL LH

94541-31E00

1
Out of stock

38

CUSHION, UNDER PANEL

94642-06C00

2
Out of stock
