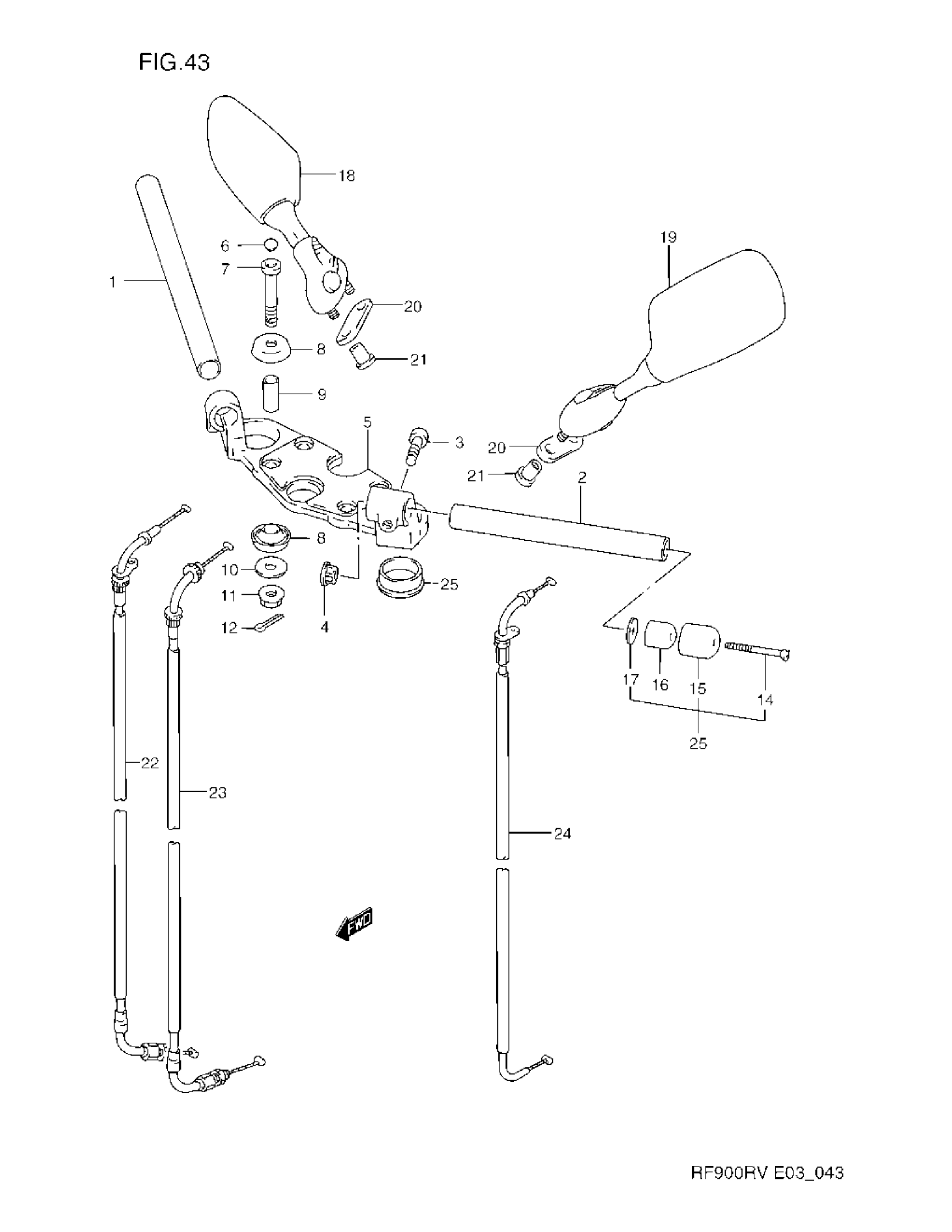

Suzuki RF900RV (1997) HANDLE BAR Diagram

#

Description
Price

1

HANDLEBAR, RH | MODEL R/S This part replaces 56110-31E10.

56110-31E11

Unavailable

1

HANDLEBAR, RH | MODEL T/V

56110-31E11

Unavailable

2

HANDLEBAR, LH | MODEL R/S This part replaces 56150-31E10.

56150-31E11

Unavailable

2

HANDLEBAR, LH | MODEL T/V

56150-31E11

Unavailable

3

BOLT

07130-08307

$3.89

4

CAP, HANDLEBAR

57215-33400

$5.50

5

HOLDER, HANDLEBAR

56211-31E00

Unavailable

6

CAP

09250-06011

$2.50

7

BOLT

09106-10055

Unavailable

8

CUSHION,UPR BRKT This part replaces 56240-01D00.

56240-01D01

$28.17

9

SPACER, HOLDER

09180-10136

Unavailable

10

WASHER

09160-10094

$3.16

11

NUT This part replaces 08316-10103.

08316-1010B

$2.66

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

BALANCER SET,HN | Includes Item(s) 14 - 17 This part replaces 56200-31810.

56200-48822

Unavailable

14

SCREW This part replaces 02122-06653.

02122-0665B

$2.76

15

CAP

56274-00A11

Unavailable

16

BALANCER

56271-00A00

Unavailable

17

SPACER This part replaces 56275-26D00.

56275-26D01

Unavailable

18

MIRROR ASSY, REAR VIEW RH

56500-31E00

Unavailable

19

MIRROR ASSY, REAR VIEW LH

56600-31E00

Unavailable

20

CUSHION, MIRROR

94576-41C00

Unavailable

21

NUT, MIRROR

56619-12C00

$7.78

22

CABLE ASSY, THROTTLE NO.1 | MODEL R/S This part replaces 58300-31E00.

58300-31E01

Unavailable

22

CABLE ASSY, THROTTLE NO.1 | MODEL T/V

58300-31E01

Unavailable

23

CABLE ASSY, THROTTLE NO.2 | MODEL R/S This part replaces 58300-31E10.

58300-31E11

Unavailable

23

CABLE ASSY, THROTTLE NO.2 | MODEL T/V

58300-31E11

Unavailable

24

CABLE,STARTER This part replaces 58410-21E00.

58410-21E01

Unavailable

25

CUSHION, HANDLE HOLDER

56247-31E00

Unavailable
