1997 Suzuki RF900RV Fuel Tank Diagram

← All diagrams

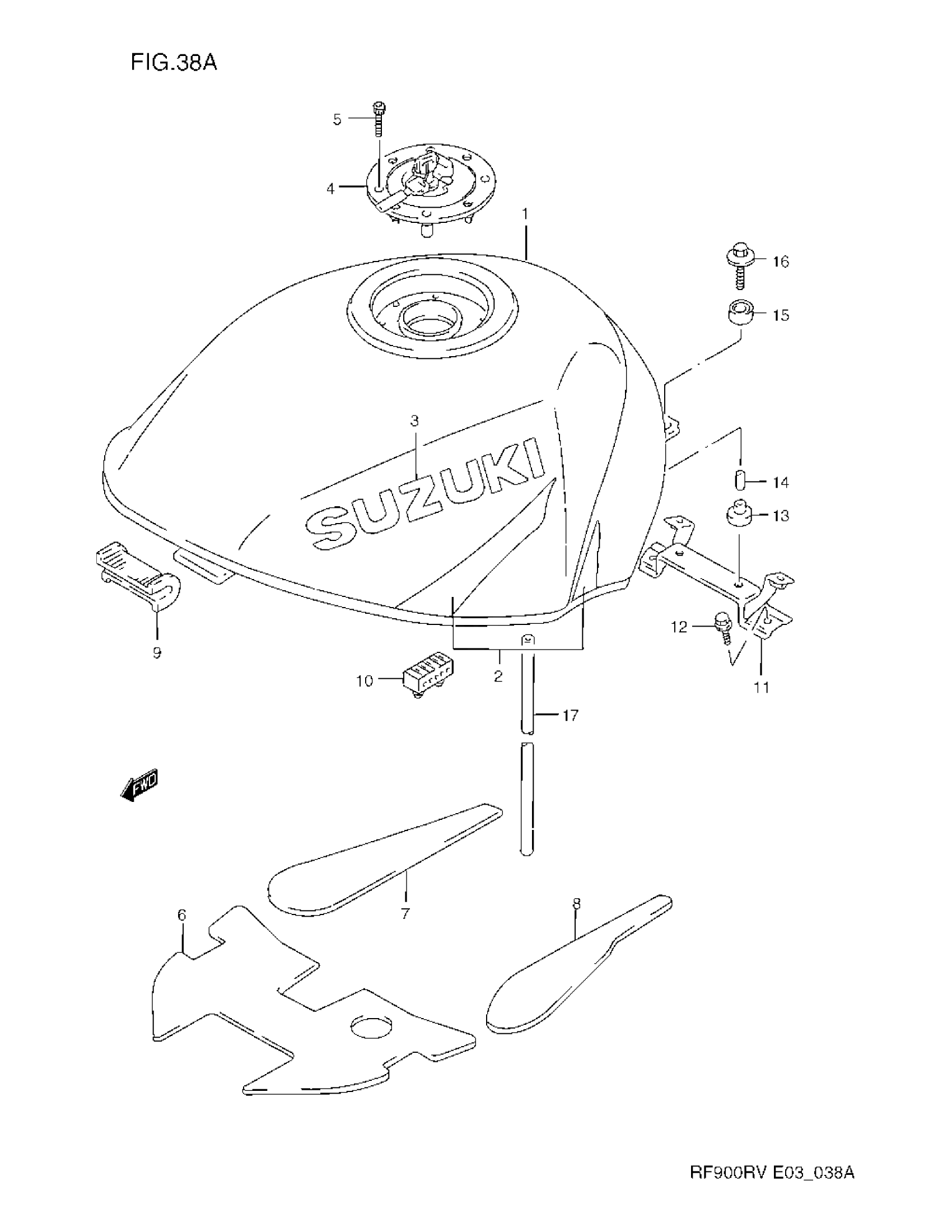

Find the part on the Fuel Tank diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki RF900RV Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-31E50-F3C

1
Out of stock

1

TANK ASSY, FUEL

44100-31E50-E6M

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-31E60-F3C.

44110-31E21-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-31E60-E6M.

44110-31E21-13L

1
Out of stock

2

TAPE SET (YELLOW) | FOR F3C

68110-31E20-163

1
Out of stock

2

TAPE SET (GRAY) | FOR E6M

68110-31E20-1ZZ

1
Out of stock

3

EMBLEM (WHITE) | FOR F3C

68111-01D00-0JW

2
Out of stock

3

EMBLEM (SILVER) | FOR E6M

68111-01D00-13L

2
Out of stock

4

CAP SET,FUEL TA This part replaces 44201-01832.

44201-01833

1
Out of stock

4

CAP SET, FUEL TANK | CALIFORNIA ONLY

44201-01842

1
Out of stock

5

BOLT

09106-05017

4
Out of stock

6

SHIELD, TANK NO.1

44191-21E00

1
Out of stock

7

SHIELD, TANK NO.2

44192-21E00

1
Out of stock

8

SHIELD, TANK NO.3

44193-21E00

1
Out of stock

9

CUSHION,FUEL TA This part replaces 44511-32C01.

44511-32C02

1
Out of stock

10

CUSHION, SIDE

45149-31300

2
Out of stock

11

BRACKET, FUEL TANK REAR

44530-21E02

1
Out of stock

12

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

13

CUSHION, REAR LOWER

09320-10038

2
Out of stock

14

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

15

CUSHION, REAR UPPER

09320-14017

2
Out of stock

16

BOLT This part replaces 01550-06303.

01550-0630A

2
Out of stock

17

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

1
Out of stock

18

COLOR : F3C = 1HU(PURPLE),

SPECIAL NOTE

—
Out of stock
