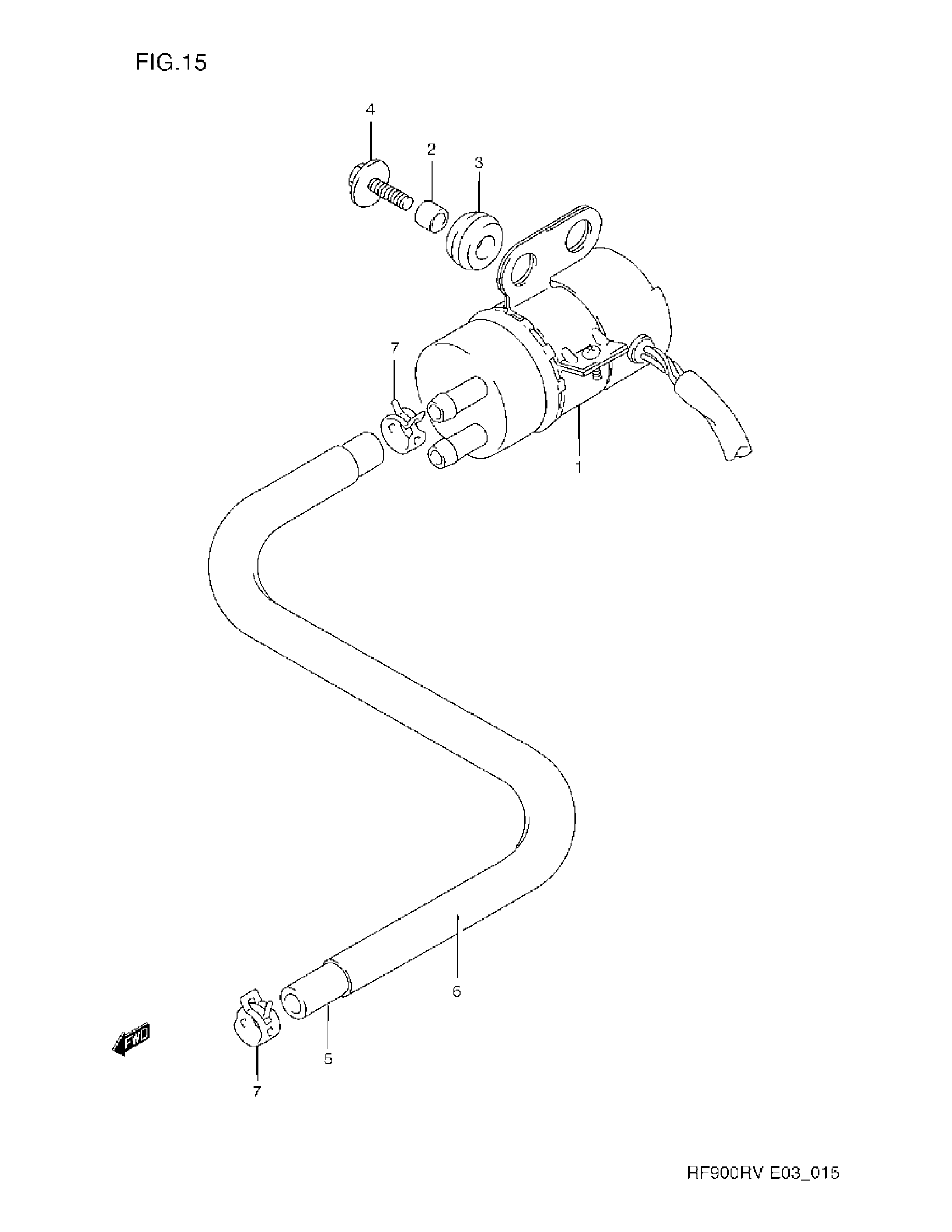

Suzuki RF900RV (1997) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL This part replaces 15100-21E01.

15100-21E02

$267.38

2

SPACER (6.5X9X9) | MODEL R/S/T This part replaces 09180-06011.

09180-06263

$2.03

2

SPACER | MODEL V

09180-06263

$2.03

3

CUSHION (6X20)

09320-09009

$4.64

4

BOLT

09116-06010

$2.19

5

HOSE,6.5X11.5X6 | L:600->370,MODEL R/S/T This part replaces 09354-70133-600.

44421-12FR0

$12.33

5

HOSE,6.5X11.5X6 | L:600->370,MODEL V This part replaces 09355-70125-600.

44421-12FR0

$12.33

6

PROTECTOR | L:600->330

09351-14152-600

$10.62

7

CLIP | MODEL R

09401-12404

$2.34

7

CLIP | MODEL S/T/V This part replaces 09401-11407.

09401-11415

$2.23
