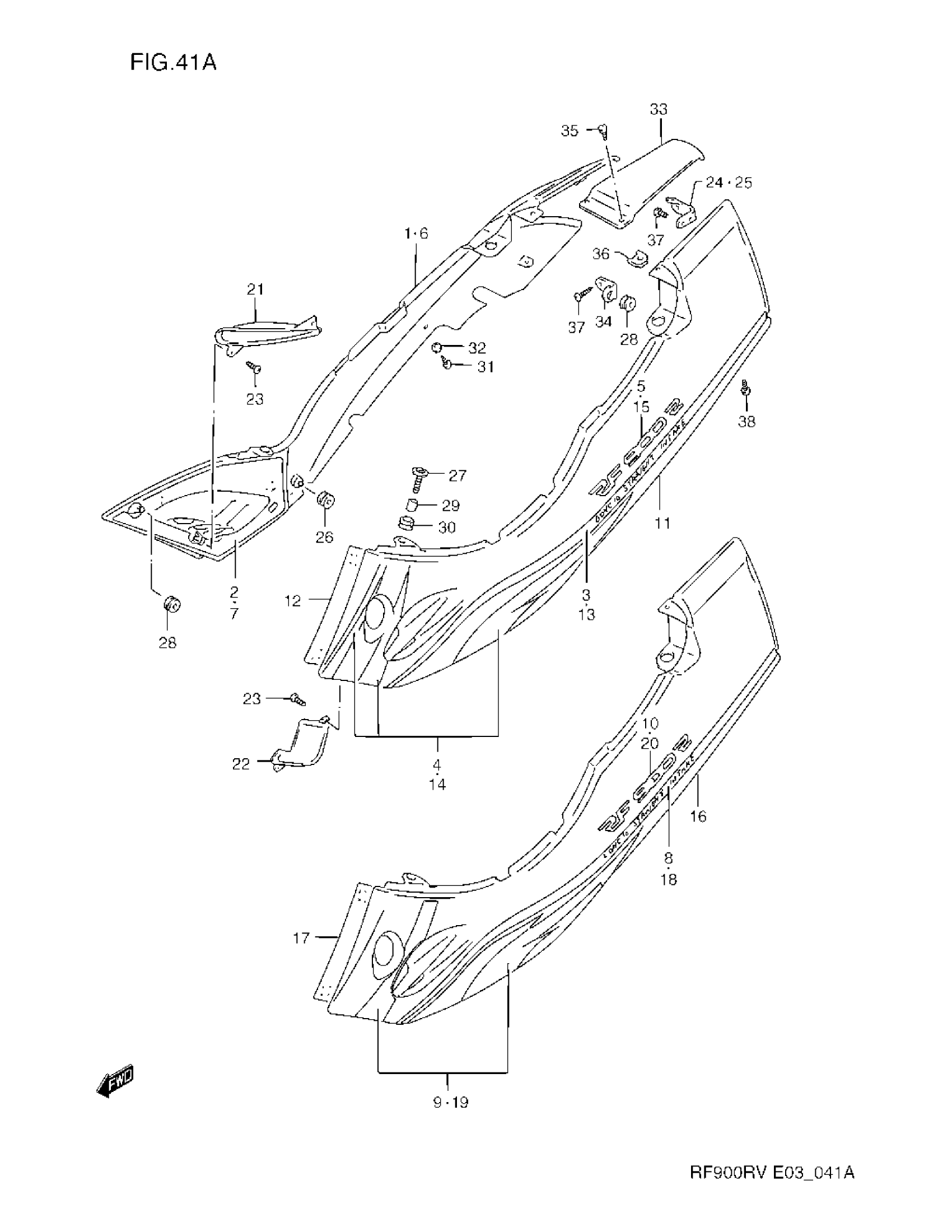

Suzuki RF900RV (1997) FRAME COVER (MODEL T/V) Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY) | MODEL T FOR F3C

47100-31E20-17U

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL T FOR E6M; Includes Item(s) 2 - 5

47100-31E20-33J

Unavailable

2

SHIELD, HEAT RH | MODEL T

47117-31E00

Unavailable

3

TAPE SET, STRIPING RH | MODEL T FOR 17U

68130-31E00-F3H

Unavailable

3

TAPE SET, STRIPING RH | MODEL T FOR 33J

68130-31E00-F3J

Unavailable

4

TAPE SET, RH | MODEL T FOR 17U

68130-31E20-F3D

Unavailable

4

TAPE SET, RH | MODEL T FOR 33J

68130-31E20-F3E

Unavailable

5

EMBLEM | MODEL T FOR 17U

68131-31E00-F3F

Unavailable

5

EMBLEM | MODEL T FOR 33J

68131-31E00-F3G

Unavailable

6

COVER, FRAME RH (BLACK) | MODEL V FOR 7AY

47100-31E30-019

Unavailable

6

COVER, FRAME RH (BLACK) | MODEL V FOR G4H; Includes Item(s) 7 - 10

47100-31E30-3DX

Unavailable

7

SHIELD, HEAT RH | MODEL V

47117-31E00

Unavailable

8

TAPE SET, STRIPING RH | MODEL V

68130-31E00-F3H

Unavailable

9

TAPE SET, RH | MODEL V FOR 019

68130-31E30-G4Y

Unavailable

9

TAPE SET, RH | MODEL V FOR 3DX

68130-31E30-G4Z

Unavailable

10

EMBLEM | MODEL V FOR 019

68131-31E00-G5A

Unavailable

10

EMBLEM | MODEL V FOR 3DX

68131-31E00-G5B

Unavailable

11

COVER, FRAME LH (GRAY) | MODEL T FOR F3C

47200-31E20-17U

Unavailable

11

COVER, FRAME LH (BLACK) | MODEL T FOR E6M; Includes Item(s) 12 - 15

47200-31E20-33J

Unavailable

12

SHIELD, HEAT LH | MODEL T

47217-31E00

Unavailable

13

TAPE SET, STRIPING LH | MODEL T FOR 17U

68140-31E00-F3H

Unavailable

13

TAPE SET, STRIPING LH | MODEL T FOR 33J

68140-31E00-F3J

Unavailable

14

TAPE SET, LH | MODEL T FOR 17U

68140-31E20-F3D

Unavailable

14

TAPE SET, LH | MODEL T FOR 33J

68140-31E20-F3E

Unavailable

15

EMBLEM | MODEL T FOR 17U

68131-31E00-F3F

Unavailable

15

EMBLEM | MODEL T FOR 33J

68131-31E00-F3G

Unavailable

16

COVER, FRAME LH (BLACK) | MODEL V FOR 7AY

47200-31E30-019

Unavailable

16

COVER, FRAME LH (BLACK) | MODEL V FOR G4H; Includes Item(s) 17 - 20

47200-31E30-3DX

Unavailable

17

SHIELD, HEAT LH | MODEL V

47217-31E00

Unavailable

18

TAPE SET, STRIPING LH | MODEL V

68140-31E00-F3H

Unavailable

19

TAPE SET, LH | MODEL V FOR 019

68140-31E30-G4Y

Unavailable

19

TAPE SET, LH | MODEL V FOR 3DX

68140-31E30-G4Z

Unavailable

20

EMBLEM | MODEL V FOR 019

68131-31E00-G5A

Unavailable

20

EMBLEM | MODEL V FOR 3DX

68131-31E00-G5B

Unavailable

21

COVER, INNER RH

47511-31E00

Unavailable

22

COVER, INNER LH

47611-31E00

Unavailable

23

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

24

BRACKET, FRAME COVER RH

47191-21E00

Unavailable

25

BRACKET, FRAME COVER LH

47192-21E00

Unavailable

26

CUSHION, SIDE

09320-08018

$3.04

27

BOLT, FRONT

09116-06131

$2.36

28

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

$10.17

29

SPACER

09180-06265

$3.68

30

CUSHION This part replaces 09320-08061.

09320-08525

$3.35

31

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

32

WASHER

09161-05017

$3.18

33

NO DESCRIPTION AVAILABLE | MODEL T FOR F3C This part replaces 47311-31E00-17U.

47311-31E00

Unavailable

33

COVER, FRAME CENTER (BLACK) | MODEL T FOR E6M

47311-31E00-33J

Unavailable

33

COVER, FRAME CENTER (BLACK) | MODEL V

47311-31E00-019

Unavailable

34

BRACKET, REAR

47193-21E00

Unavailable

35

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

36

NUT

09148-05021

$1.86

37

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

38

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

39

COLOR : F3C = 1HU(PURPLE),

SPECIAL NOTE

Unavailable
