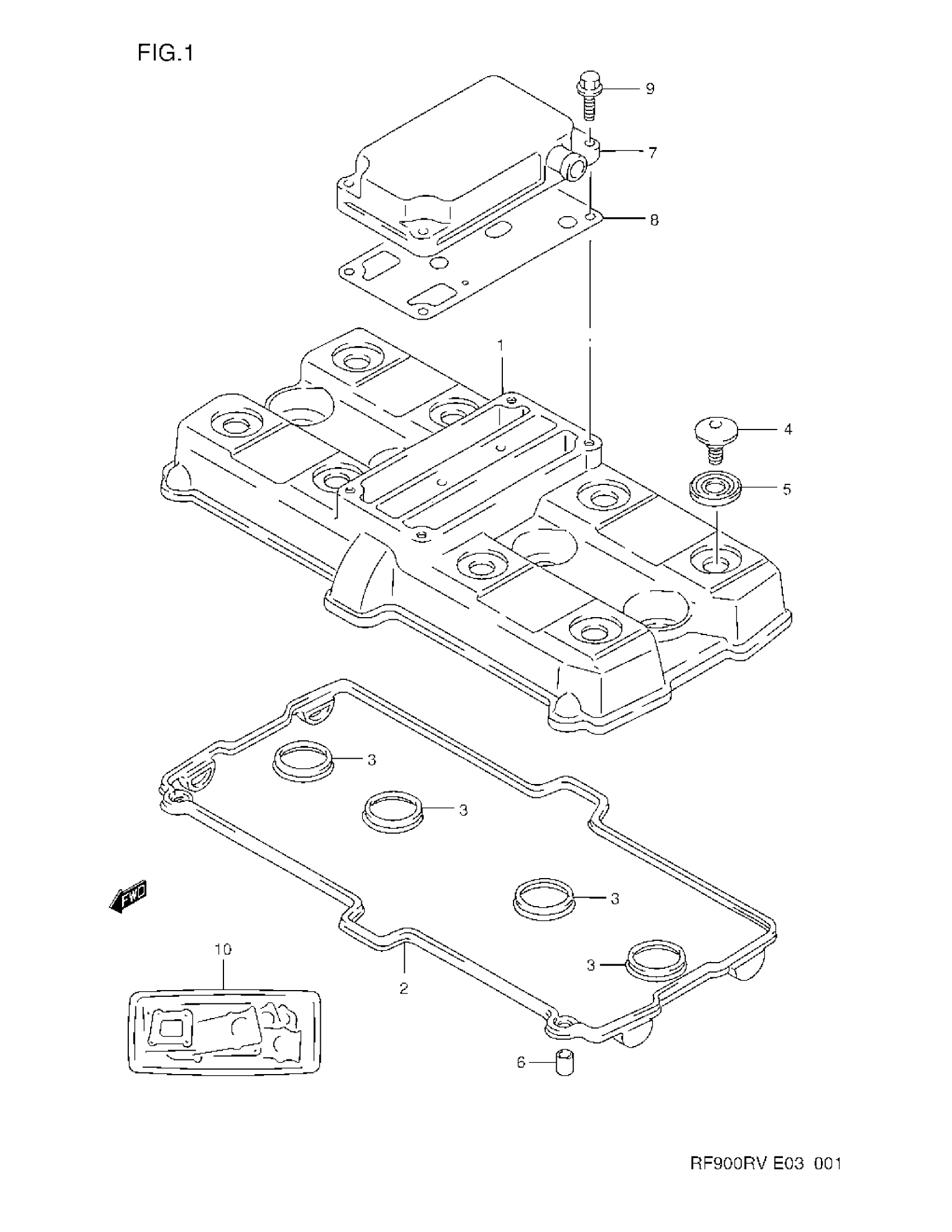

Suzuki RF900RV (1997) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-31E00

Unavailable

2

GASKET, HEAD COVER NO.1

11173-21E00

Unavailable

3

GASKET, HEAD COVER NO.2

11178-17E00

$6.64

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

5

WASHER

09161-11008

$4.49

6

PIN

09206-08001

$1.78

7

COVER, BREATHER

11176-31E00

Unavailable

8

GASKET, BREATHER COVER

11177-17E00

$10.24

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

10

GASKET SET | MODEL R This part replaces 11400-31890.

11400-31892

Unavailable

10

GASKET SET | MODEL S/T This part replaces 11400-31891.

11400-31892

Unavailable

10

GASKET SET | MODEL V

11400-31892

Unavailable
