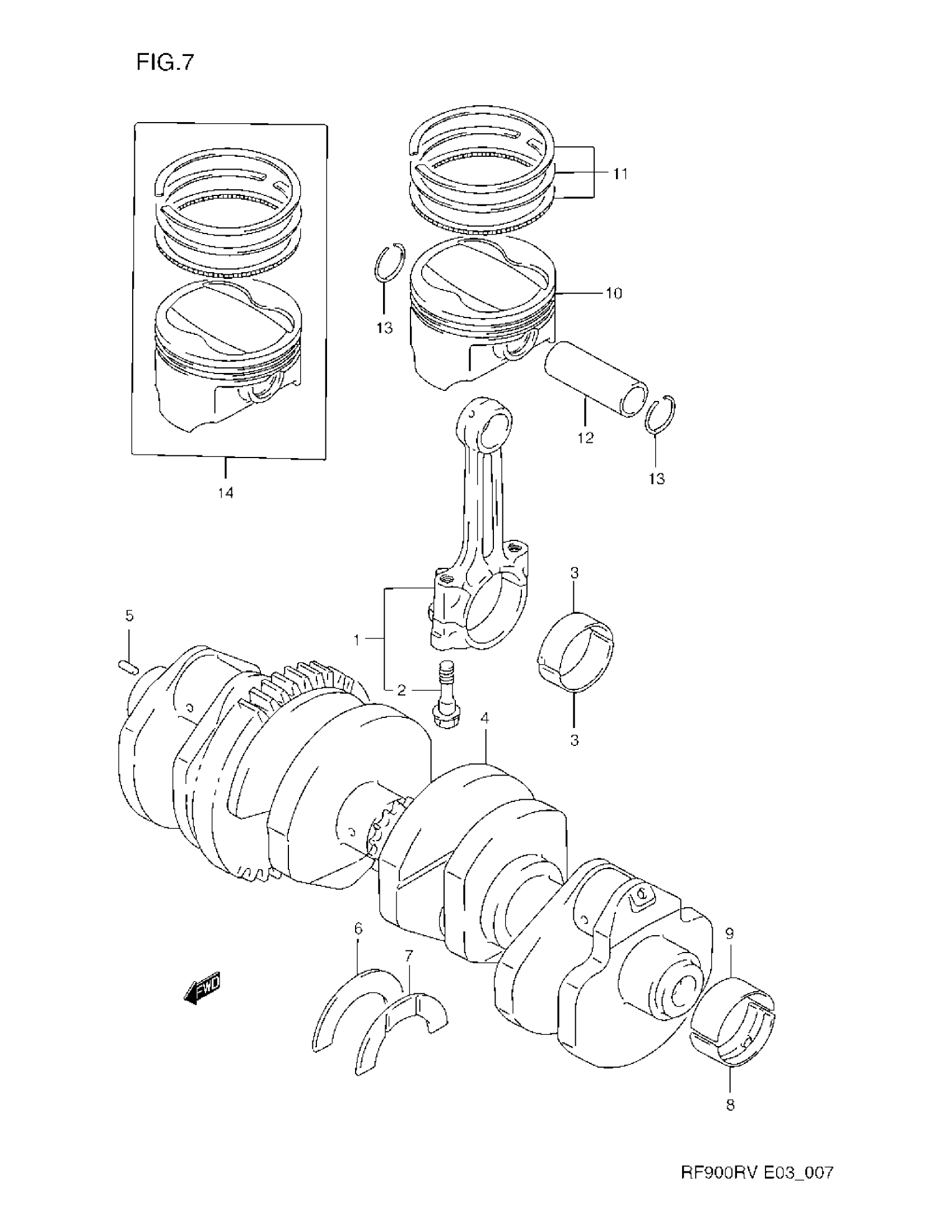

Suzuki RF900RV (1997) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-31E02

Unavailable

2

BOLT

12163-17C50

Unavailable

3

BEARING, CRANK PIN (GREEN) | MODEL R/S

12164-31E00-0A0

$23.00

3

BEARING, CRANK PIN (BLACK) | MODEL R/S

12164-31E00-0B0

$19.55

3

BEARING, CRANK PIN (BROWN) | MODEL R/S

12164-31E00-0C0

$23.00

3

BEARING, CRANK PIN (YELLOW) | MODEL R/S

12164-31E00-0D0

$23.00

3

BEARING, CRANK PIN (GREEN) | MODEL T/V This part replaces 12164-31E50-0A0.

12164-31E00-0A0

$23.00

3

BEARING, CRANK PIN (BLACK) | MODEL T/V

12164-31E50-0B0

Unavailable

3

BEARING, CRANK PIN (BROWN) | MODEL T/V

12164-31E50-0C0

Unavailable

3

BEARING, CRANK PIN (YELLOW) | MODEL T/V

12164-31E50-0D0

Unavailable

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-31810

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING, CRANKSHAFT (GREEN) | LOWER MODEL R/S

12229-31E00-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK) | MODEL R/S

12229-31E00-0B0

Unavailable

8

BEARING, CRANKSHAFT (BROWN) | MODEL R/S

12229-31E00-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW) | MODEL R/S

12229-31E00-0D0

Unavailable

8

BEARING, CRANKSHAFT (GREEN) | MODEL T/V

12229-31E50-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK) | MODEL T/V

12229-31E50-0B0

Unavailable

8

BEARING, CRANKSHAFT (BROWN) | MODEL T/V

12229-31E50-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW) | MODEL T/V

12229-31E50-0D0

$18.82

9

BEARING, CRANKSHAFT (GREEN) | UPPER MODEL R/S

12229-31E10-0A0

Unavailable

9

BEARING, CRANKSHAFT (BLACK) | MODEL R/S

12229-31E10-0B0

Unavailable

9

BEARING, CRANKSHAFT (BROWN) | MODEL R/S

12229-31E10-0C0

Unavailable

9

BEARING, CRANKSHAFT (YELLOW) | MODEL R/S

12229-31E10-0D0

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | MODEL T/V

12229-31E60-0A0

Unavailable

9

BEARING, CRANKSHAFT (BLACK) | MODEL T/V

12229-31E60-0B0

Unavailable

9

BEARING, CRANKSHAFT (BROWN) | MODEL T/V

12229-31E60-0C0

Unavailable

9

BEARING, CRANKSHAFT (YELLOW) | MODEL T/V

12229-31E60-0D0

Unavailable

10

PISTON

12111-31E02-0F0

Unavailable

11

RING SET, PISTON This part replaces 12140-31E60.

12140-13E00

$74.27

12

PIN, PISTON

12151-17C00

$18.43

13

RING,SNAP

09381-19001

$2.29

14

PISTON SET (OS:0.5) | OPT

12100-31E00-050

Unavailable

14

PISTON SET (OS:1.0) | OPT

12100-31E00-100

Unavailable
