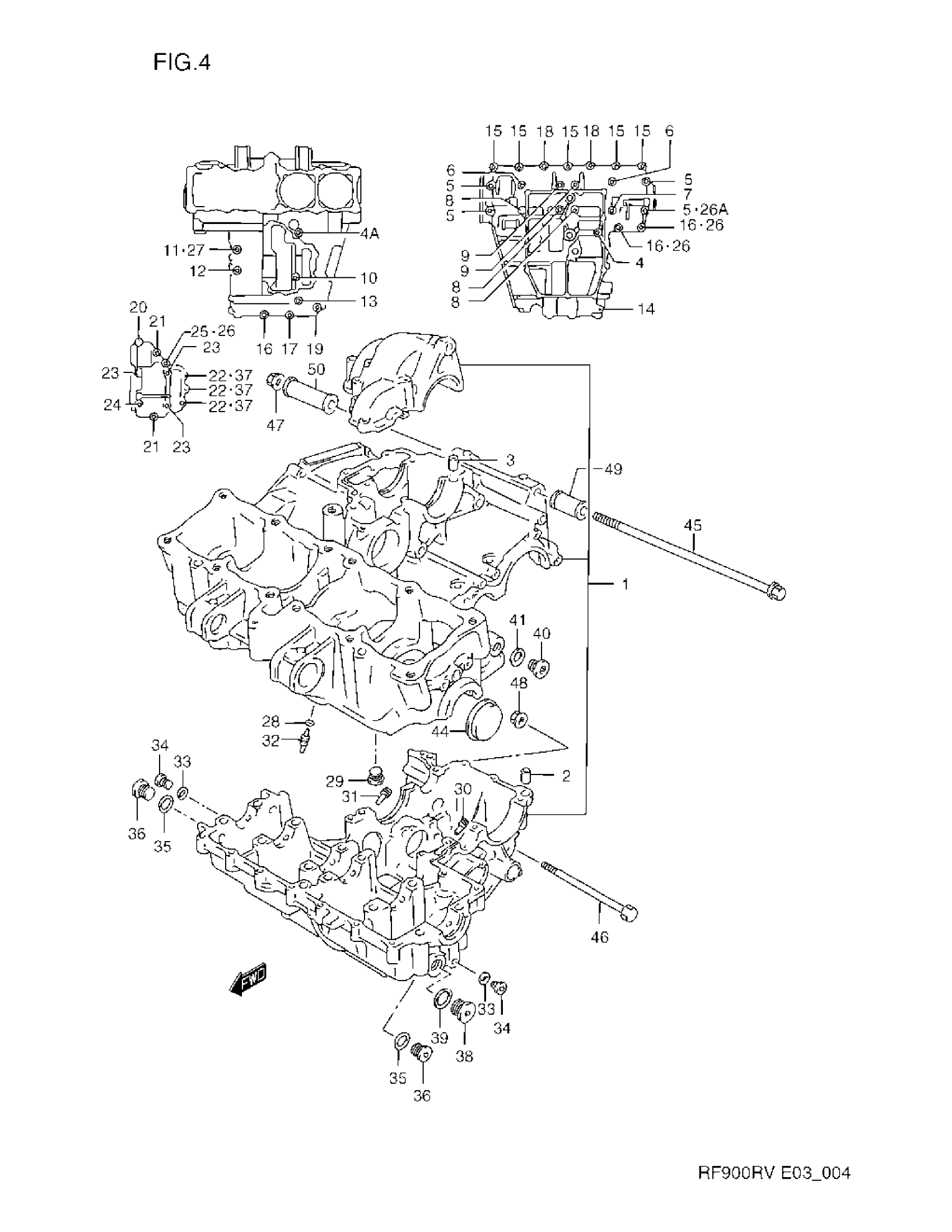

Suzuki RF900RV (1997) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL R This part replaces 11302-46870.

11302-46876

Unavailable

1

CRANKCASE SET | MODEL S This part replaces 11302-46874.

11302-46876

Unavailable

1

CRANKCASE SET | MODEL T This part replaces 11302-46875.

11302-46876

Unavailable

1

CRANKCASE SET | MODEL V; Includes Item(s) 2 - 43

11302-46876

Unavailable

2

PIN

09206-13004

$2.40

3

PIN

04211-09129

$1.65

4

BOLT (6X105)

09103-06163

Unavailable

4A

BOLT (6X105)

09103-06067

$2.48

5

NO DESCRIPTION AVAILABLE This part replaces 09103-09007.

09103-09007-XC0

Unavailable

6

BOLT (9X95)

09103-09008

$7.59

7

BOLT (9X105)

09103-09009

Unavailable

8

BOLT (9X115)

09103-09010

$9.92

9

BOLT (9X60)

09106-09001

Unavailable

10

BOLT This part replaces 07130-06753.

07130-0675B

$4.60

11

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

12

BOLT This part replaces 07130-08603.

07130-0860B

Unavailable

13

BOLT This part replaces 07130-08803.

07130-0880B

Unavailable

14

BOLT This part replaces 01550-08603.

01550-0860A

$4.17

15

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

16

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

17

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

18

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

19

BOLT This part replaces 01550-06653.

01550-0665A

$3.16

20

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

21

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

22

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

23

BOLT This part replaces 07130-06503.

07130-0650B

$4.10

24

BOLT This part replaces 07130-06603.

07130-0660B

$4.68

25

BOLT (6X145)

09103-06062

Unavailable

26

GASKET

09168-06018

$1.77

26A

.GASKET (10.2X20X2.3) | MODEL S/T/V

09168-10031

$2.03

27

GASKET (8.2X14X1)

09168-08016

$1.65

28

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

29

PLUG (18X8) This part replaces 09248-18002.

09248-18011

$7.35

30

JET, OIL GALLERY MISSION L

09493-24010

$16.87

31

JET, OIL GALLERY MISSION R

09493-28012

$16.87

32

JET, OIL GALLERY PISTON

09493-80008

Unavailable

33

GASKET | ~E.NO.110298

09168-10002

$2.13

33

GASKET | E.NO.110299~

09168-10007

$1.71

34

PLUG, OIL GALLERY | ~E.NO.110298

09248-10007

$6.50

34

PLUG, OIL GALLERY | E.NO.110299~

11315-17E00

Unavailable

35

GASKET

09168-16002

$1.91

36

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

37

GASKET

09168-06024

$2.20

38

PLUG, LH

09248-22002

Unavailable

39

GASKET

09168-22002

$5.77

40

PLUG, OIL GALLERY

09248-14010

$5.50

41

GASKET

09168-14002

$2.26

42

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7 (B-9)

12228-17E00-0D0

$9.50

43

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7 (B-9)

12228-17E00-0A0

$11.38

43

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

43

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

43

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

43

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

43

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

44

PLUG, CRANKCASE LH

09241-37002

$18.37

45

BOLT (10X280)

09103-10274

Unavailable

46

BOLT (12X140)

09103-12045

Unavailable

47

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

48

NUT This part replaces 08319-31128.

08319-3112A

$3.76

49

SPACER, LH (L:45)

11611-21E00

Unavailable

50

SPACER, RH (L:65)

11611-14210

Unavailable
