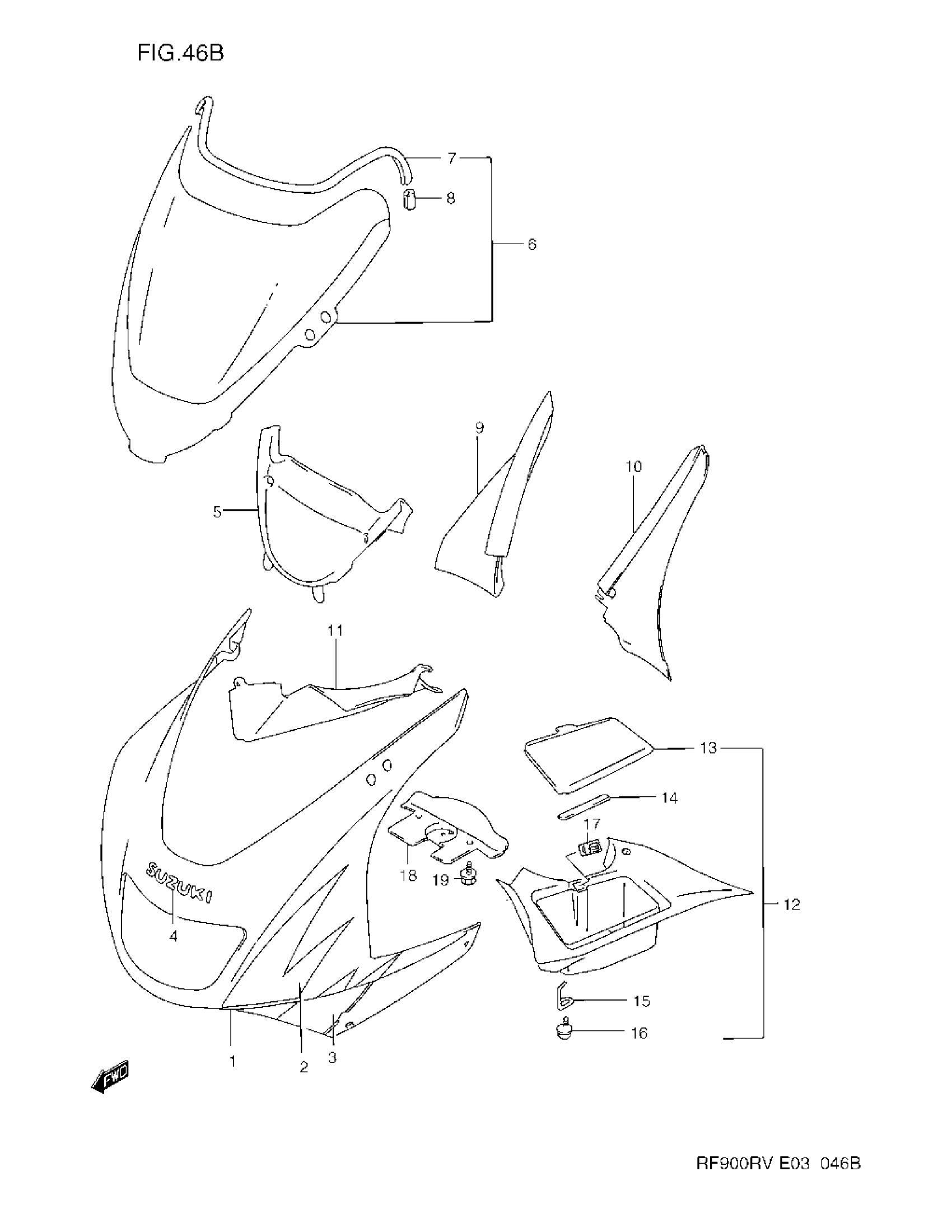

Suzuki RF900RV (1997) COWLING BODY (MODEL T/V) Diagram

#

Description
Price

1

COWLING ASSY, BODY (PURPLE) | MODEL T FOR F3C

94400-31E10-1HU

Unavailable

1

COWLING ASSY, BODY (GREEN) | MODEL T FOR E6M

94400-31E10-Y98

Unavailable

1

COWLING ASSY, BODY (MAROON) | MODEL V FOR 7AY

94400-31E10-20F

Unavailable

1

COWLING ASSY, BODY (GREEN) | MODEL V FOR G4H; Includes Item(s) 2 - 4

94400-31E10-0WP

Unavailable

2

TAPE SET, FRONT | MODEL T FOR 1HU

68270-31E10-F3K

Unavailable

2

TAPE SET, FRONT | MODEL T FOR Y98

68270-31E10-F3L

Unavailable

2

TAPE SET, FRONT | MODEL V FOR 20F

68270-31E10-G5C

Unavailable

2

TAPE SET, FRONT | MODEL V FOR 0WP

68270-31E10-G5D

Unavailable

3

TAPE SET, SIDE | MODEL T FOR 1HU

68280-31E10-F3C

Unavailable

3

TAPE SET, SIDE | MODEL T FOR Y98

68280-31E10-E6M

Unavailable

3

TAPE SET, SIDE | MODEL V FOR 20F

68280-31E10-7AY

Unavailable

3

TAPE SET, SIDE | MODEL V FOR 0WP

68280-31E10-G4H

Unavailable

4

EMBLEM (SILVER) | MODEL T FOR 1HU This part replaces 68185-05C10-0JW.

68185-05C10-13L

Unavailable

4

EMBLEM, SUZUKI (SILVER) | MODEL T FOR Y98

68185-05C10-13L

Unavailable

4

EMBLEM, SUZUKI (SILVER) | MODEL V

68185-05C10-0FP

Unavailable

5

PANEL, CENTER

94640-21E00

Unavailable

6

SCREEN SET, WIND | Includes Item(s) 7 - 8

94610-21E00

Unavailable

7

MOLDING | L:700->600

94631-33C01

$18.02

8

CLIP

94637-21E00

$8.18

9

PANEL, UPPER RH

94423-21E00

Unavailable

10

PANEL, UPPER LH

94424-21E00

Unavailable

11

PANEL, SIDE RH

94630-21E00

Unavailable

12

PANEL, SIDE LH | Includes Item(s) 13 - 17

94650-21E00

Unavailable

13

LID

94427-21E00

Unavailable

14

CUSHION

94456-21E00

Unavailable

15

HINGE

94553-21E00

Unavailable

16

SCREW This part replaces 03541-15103.

03541-1510A

$2.48

17

LOCK, LID

73170-50A00

$16.87

18

COVER, FRONT LOWER

94457-21E10

Unavailable

19

BOLT

09116-06109

$3.00

20

COLOR : F3C = 1HU(PURPLE),

SPECIAL NOTE

Unavailable
