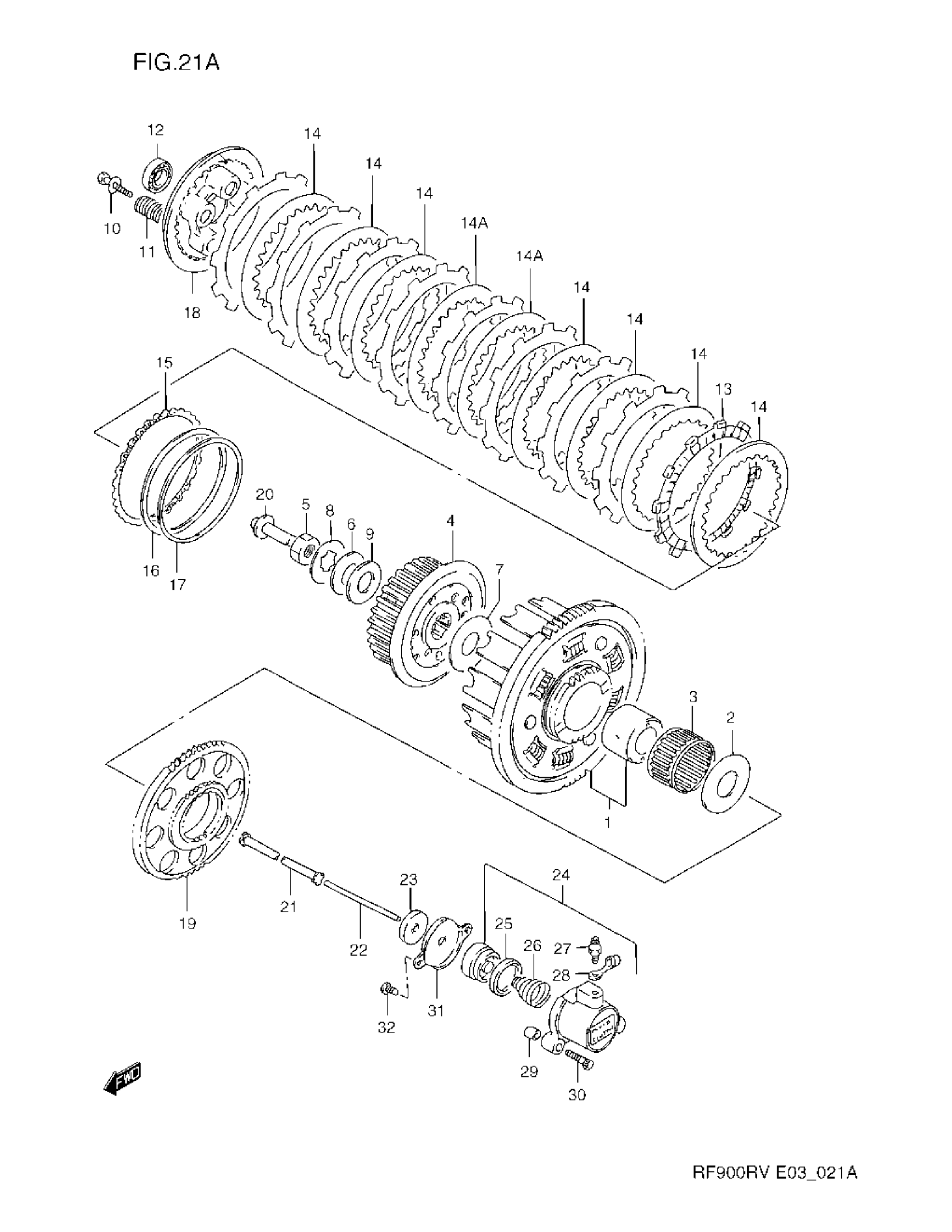

Suzuki RF900RV (1997) CLUTCH (MODEL S/T/V) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL S This part replaces 21200-31850.

21200-31861

$516.58

1

GEAR ASSY, PRIMARY DRIVEN | MODEL T/V This part replaces 21200-31860.

21200-31861

$516.58

2

WASHER (25X54X2.5)

09160-25067

Unavailable

3

BEARING (35X40X35.8)

09263-35017

$40.54

4

HUB, CLUTCH SLEEVE

21410-31E00

Unavailable

5

NUT

09140-24012

Unavailable

6

WASHER

09164-25001

Unavailable

7

.WASHER (25X50X2.5)

09160-25056

$11.61

8

LOCK WASHER

09167-25007

Unavailable

9

THRUST WASHER

08211-25441

Unavailable

10

BOLT, CLUTCH SPRING This part replaces 21412-31E00.

21412-35F00

$3.41

11

SPRING, CLUTCH

21413-31E00

$8.57

12

BEARING (15X35X11) This part replaces 08110-62020.

09262-15031

Unavailable

13

PLATE, CLUTCH SLEEVE

21441-31E00

$28.38

14

PLATE, CLUTCH DRIVEN NO.1 | T:1.6

21451-31E00

$10.53

14A

PLATE, CLUTCH DRIVEN NO.2 | T:2.0

21451-31E10

$11.28

15

PLATE, CLUTCH DRIVE

21442-31E00

$39.23

16

WASHER, CLUTCH PLATE WAVE | MODEL S This part replaces 21472-31E00.

21472-31E01

$17.75

16

WASHER, CLUTCH PLATE WAVE | MODEL T/V

21472-31E01

$17.75

17

SEAT, CLUTCH PLATE WAVE WASHE

21471-31E00

Unavailable

18

DISK, CLUTCH PRESSURE

21462-31E00

Unavailable

19

GEAR, ALTERNATOR (NT:34/61) This part replaces 22721-21E01.

22721-21E02

Unavailable

20

PIECE, CLUTCH PUSH

23121-31E00

$23.92

21

ROD, CLUTCH

23110-27A00

$21.09

22

ROD, CLUTCH PUSH

23111-30001

Unavailable

23

OIL SEAL

09285-06015

$7.98

24

CYLINDER,CLUTCH | Includes Item(s) 25 - 28 This part replaces 23160-06B02.

23160-06B03

$101.68

25

CUP

23163-06B00

$7.22

26

SPRING

23164-05A00

$4.34

27

BLEEDER

59121-01A00

$8.73

28

CAP, BLEEDER

59122-01A00

$4.34

29

KNOCK PIN (H:12)

04211-09129

$1.65

30

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

31

COVER, CLUTCH RELEASE CYLINDE

23117-46E00

$6.79

32

SCREW This part replaces 02112-06103.

02112-0610B

$1.84
