1997 Suzuki RF900RV Clutch Diagram

← All diagrams

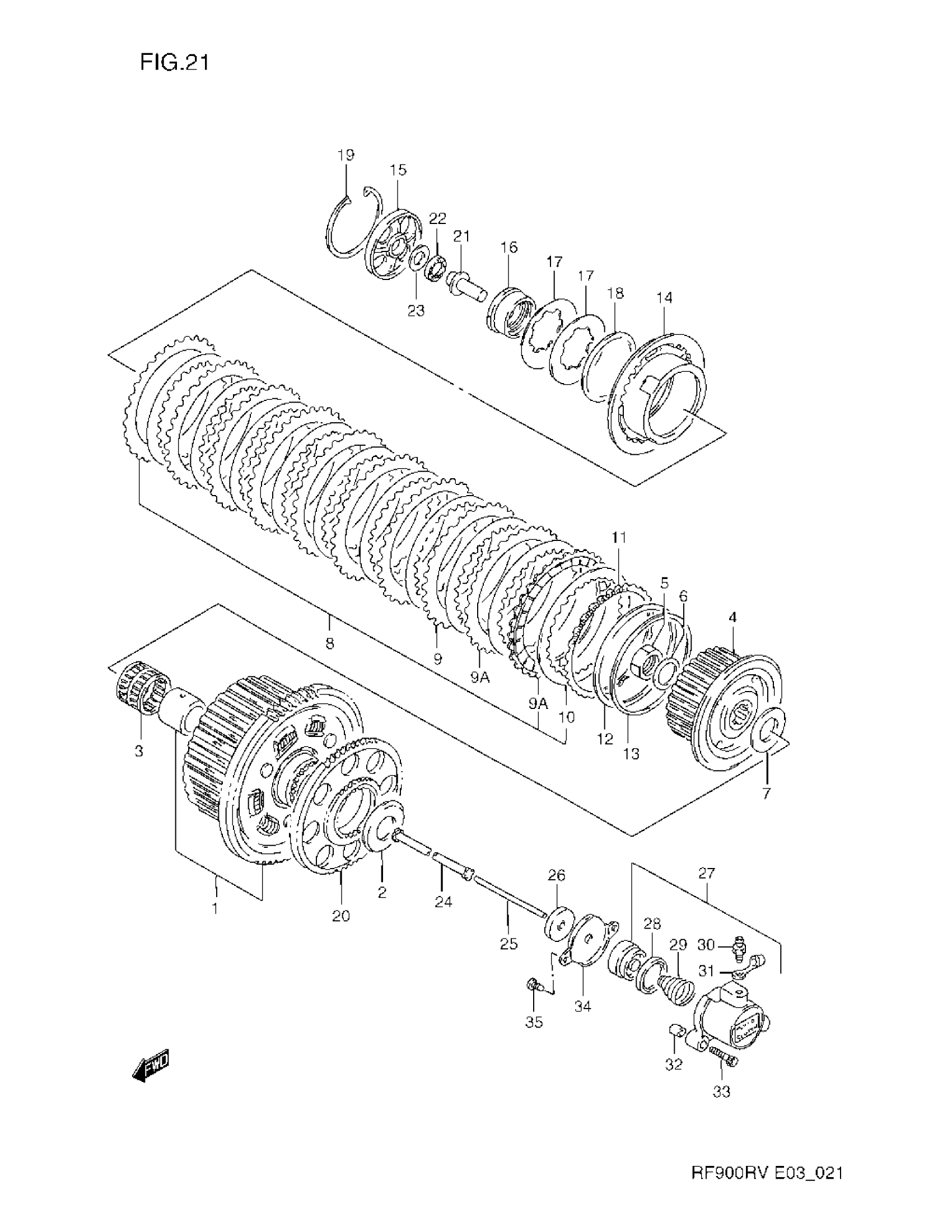

Find the part on the Clutch diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki RF900RV Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN (NT:72)

21200-40831

1
Out of stock

2

WASHER

09160-25067

1
Out of stock

3

BEARING (35X40X35.8)

09263-35017

1
Out of stock

4

HUB, SLEEVE

21410-46E00

1
Out of stock

5

NUT

09159-24008

1
Out of stock

6

WASHER

09164-24006

1
Out of stock

7

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

8

PLATE ASSY, CLUTCH | Includes Item(s) 9 - 10

21400-40C01

1
Out of stock

9

PLATE, DRIVE NO.1 (T:2.6)

21441-48B00

8
Out of stock

9A

PLATE, DRIVE NO.2 (T:2.6)

21441-48B10

2
Out of stock

10

PLATE, DRIVEN (T:2.0)

21451-48B00

10
Out of stock

11

PLATE, DRIVE (T:2.6)

21442-46E00

1
Out of stock

12

WAVE WASHER

09164-00007

1
Out of stock

13

SEAT, CLUTCH PLATE

21471-40C01

1
Out of stock

14

DISK, PRESSURE

21462-40C02

1
Out of stock

15

LIFTER, CLUTCH PRESSURE DISK

21463-40C01

1
Out of stock

16

HOLDER, CLUTCH SPRING

21611-40C01

1
Out of stock

17

SPRING

09164-47001

2
Out of stock

18

SEAT, CLUTCH SPRING

21623-40C00

1
Out of stock

19

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

1
Out of stock

20

GEAR, ALTERNATOR (NT:34/61) This part replaces 22721-21E01.

22721-21E02

1
Out of stock

21

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

1
Out of stock

22

BEARING (15X28X2)

09263-15003

1
Out of stock

23

WASHER (15.5X28X1)

09160-15045

1
Out of stock

24

ROD, PUSH RH

23110-27A00

1
Out of stock

25

ROD, PUSH LH (L:108.5)

23111-24A01

1
Out of stock

26

OIL SEAL

09285-06015

1
Out of stock

27

CYLINDER,CLUTCH | Includes Item(s) 28 - 31 This part replaces 23160-06B02.

23160-06B03

1
Out of stock

28

CUP

23163-06B00

1
Out of stock

29

SPRING

23164-05A00

1
Out of stock

30

BLEEDER

59121-01A00

1
Out of stock

31

CAP, BLEEDER

59122-01A00

1
Out of stock

32

PIN

04211-09129

2
Out of stock

33

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock

34

COVER, CYLINDER

23117-46E00

1
Out of stock

35

SCREW This part replaces 02112-06103.

02112-0610B

2
Out of stock

36

REFER TO FIG.21A(D-8) FOR

SPECIAL NOTE

—
Out of stock
