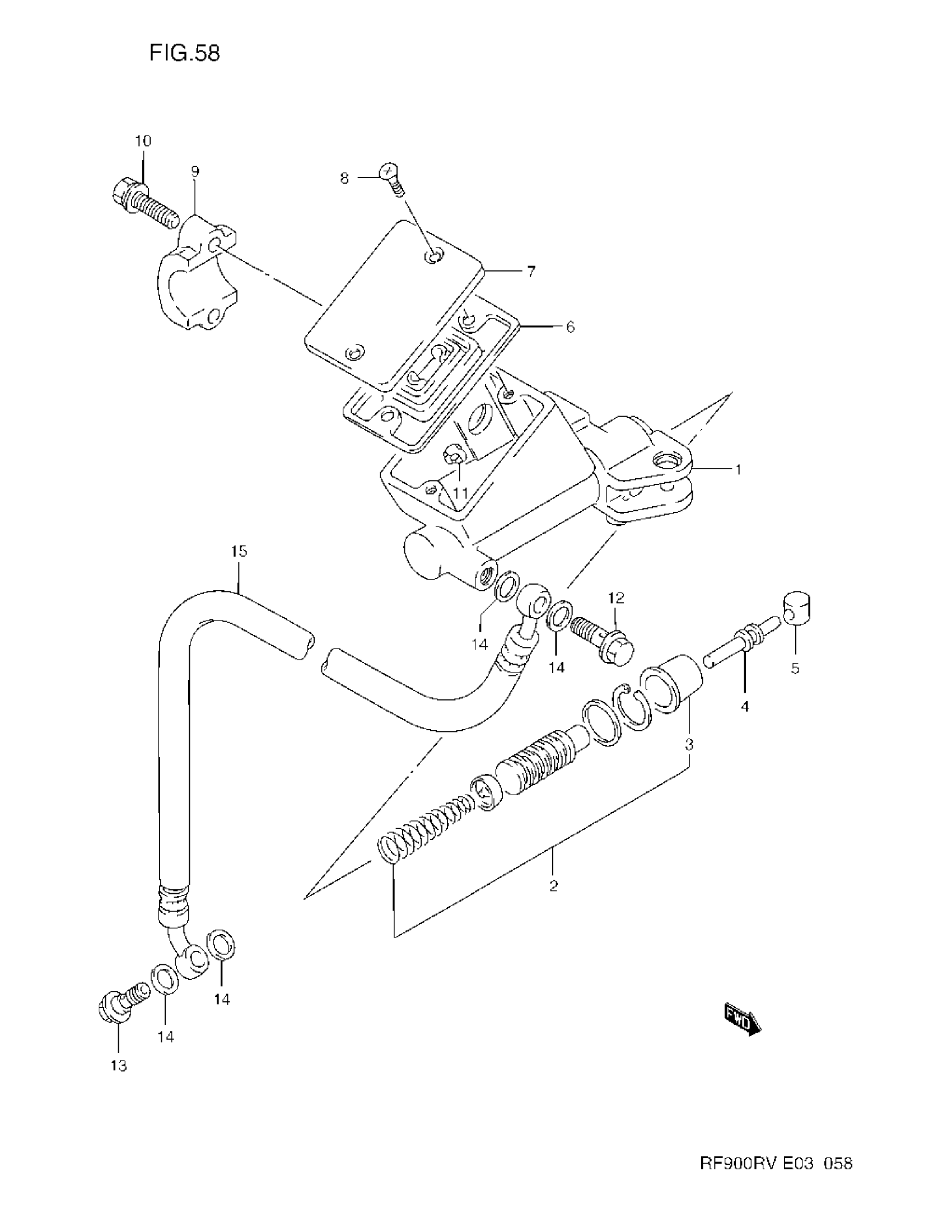

Suzuki RF900RV (1997) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 2 - 11

59800-46E00

Unavailable

2

PISTON & CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD

59871-08A00

Unavailable

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-44B00

$9.78

7

CAP

69669-24A01

$15.10

8

SCREW

69689-49300

$1.91

9

.HOLDER

59671-36500

$12.21

10

BOLT HOLDER SET

59675-19C00

$4.02

11

PROTECTOR

59664-48B00

$11.02

12

UNION This part replaces 09360-10040.

09360-10062

$6.43

13

UNION This part replaces 09360-10039.

09360-10061

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, CLUTCH

59910-31E00

Unavailable
