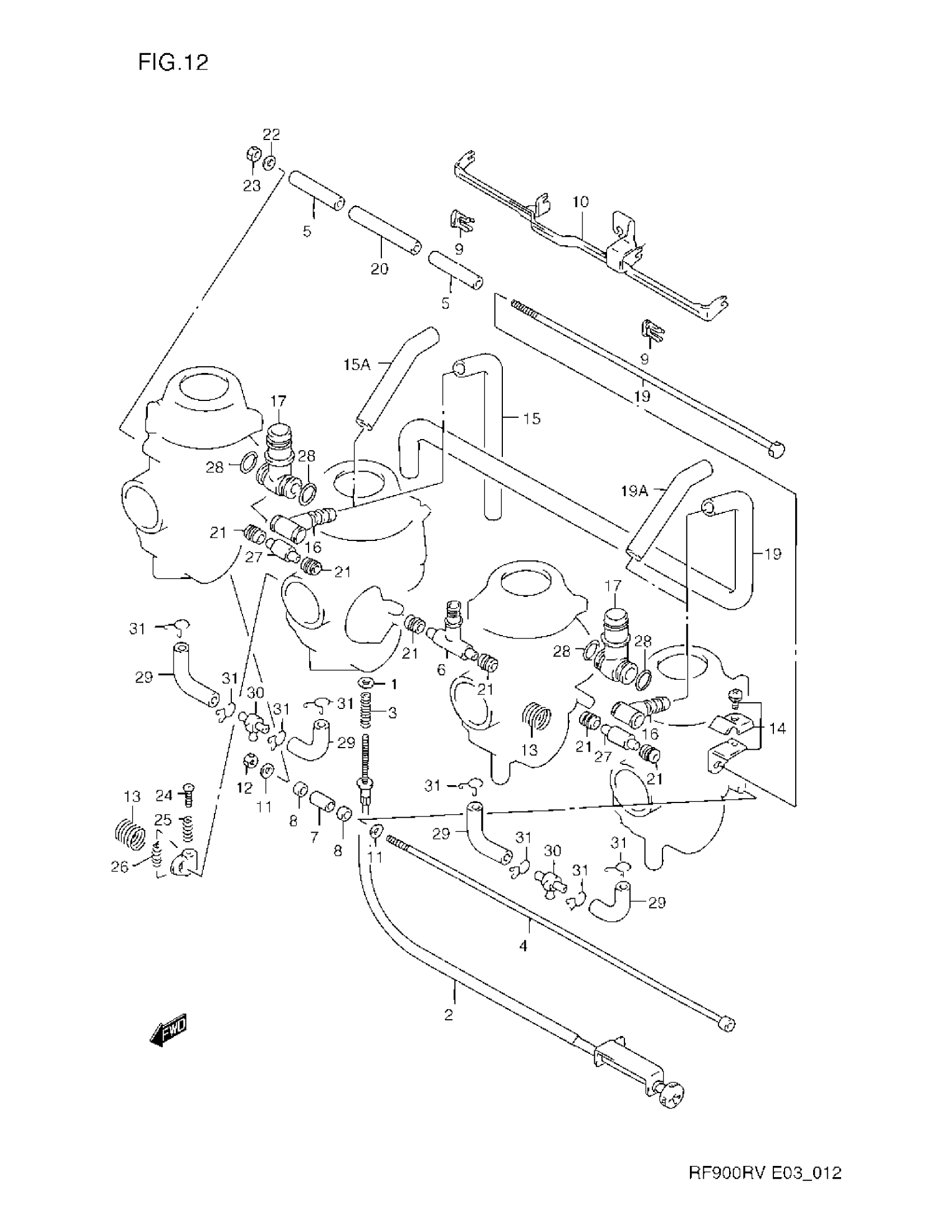

Suzuki RF900RV (1997) CARBURETOR FITTINGS Diagram

#

Description
Price

1

WASHER

13427-38300

$1.92

2

ADJUSTER

13267-21E00

Unavailable

3

SPRING

13271-33C00

$6.03

4

BOLT

13612-21E00

Unavailable

5

RING

13331-21E00

Unavailable

6

NIPPLE

13685-21E00

Unavailable

7

RING

13331-21E20

Unavailable

8

RING

13331-21E30

Unavailable

9

HOLDER

13439-17C00

$10.62

10

LEVER, STARTER

13413-31E00

Unavailable

11

WASHER, FRONT | MODEL R This part replaces 13606-00A10.

08322-0105A

$1.84

11

WASHER, FRONT | MODEL S/T/V This part replaces 08322-01053.

08322-0105A

$1.84

12

NUT | MODEL R

13607-33C00

Unavailable

12

NUT | MODEL S/T/V This part replaces 08310-00053.

08310-0005A

$1.84

13

SPRING

13573-06C10

$7.77

14

BRACKET ASSY

13624-33C00

Unavailable

15

HOSE (ID:9XOD:13)

13683-21E10

$42.22

15A

HOSE(9X13X600) | MODEL R/S/TCALIFORNIA ONLY This part replaces 13683-31E00.

09352-90134-600

$13.28

15A

HOSE(9X13X600) | MODEL VCALIFORNIA ONLY This part replaces 09352-90133-600.

09352-90134-600

$13.28

16

HOSE

13683-34C00

$9.03

17

NIPPLE

13685-33C00

Unavailable

18

BOLT

13612-21E10

Unavailable

19

HOSE (ID:9XOD:13)

13683-21E00

Unavailable

19A

HOSE(9X13X600) | MODEL R/S/TCALIFORNIA ONLY This part replaces 13683-31E00.

09352-90134-600

$13.28

19A

HOSE(9X13X600) | MODEL VCALIFORNIA ONLY This part replaces 09352-90133-600.

09352-90134-600

$13.28

20

RING

13331-21E10

Unavailable

21

SEAL

13673-44B00

$4.60

22

.WASHER | MODEL R This part replaces 13606-06C00.

08322-0106B

$2.26

22

.WASHER | MODEL S/T/V This part replaces 08322-01063.

08322-0106B

$2.26

23

NUT | MODEL R This part replaces 13607-06C00.

08310-0006A

$1.84

23

NUT | MODEL S/T/V This part replaces 08310-00063.

08310-0006A

$1.84

24

SCREW

13267-44B00

$4.10

25

SPRING

13271-44B00

$3.89

26

SPRING This part replaces 13268-96110.

13268-96111

$4.35

27

PIPE

13685-21E10

Unavailable

28

O RING (D:1.9,ID:9.8) | MODEL R This part replaces 13509-33C00.

09280-10016

$3.37

28

O RING (D:1.9,ID:9.8) | MODEL S/T/V This part replaces 09280-10005.

09280-10016

$3.37

29

HOSE | MODEL R/S/TCALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.96

29

HOSE | MODEL VCALIFORNIA ONLY This part replaces 13684-48B10.

13684-48B11

$15.96

30

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

31

CLIP | MODEL R/S/TCALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.49

31

CLIP | MODEL VCALIFORNIA ONLY This part replaces 09401-10410.

09401-10401

$1.49
