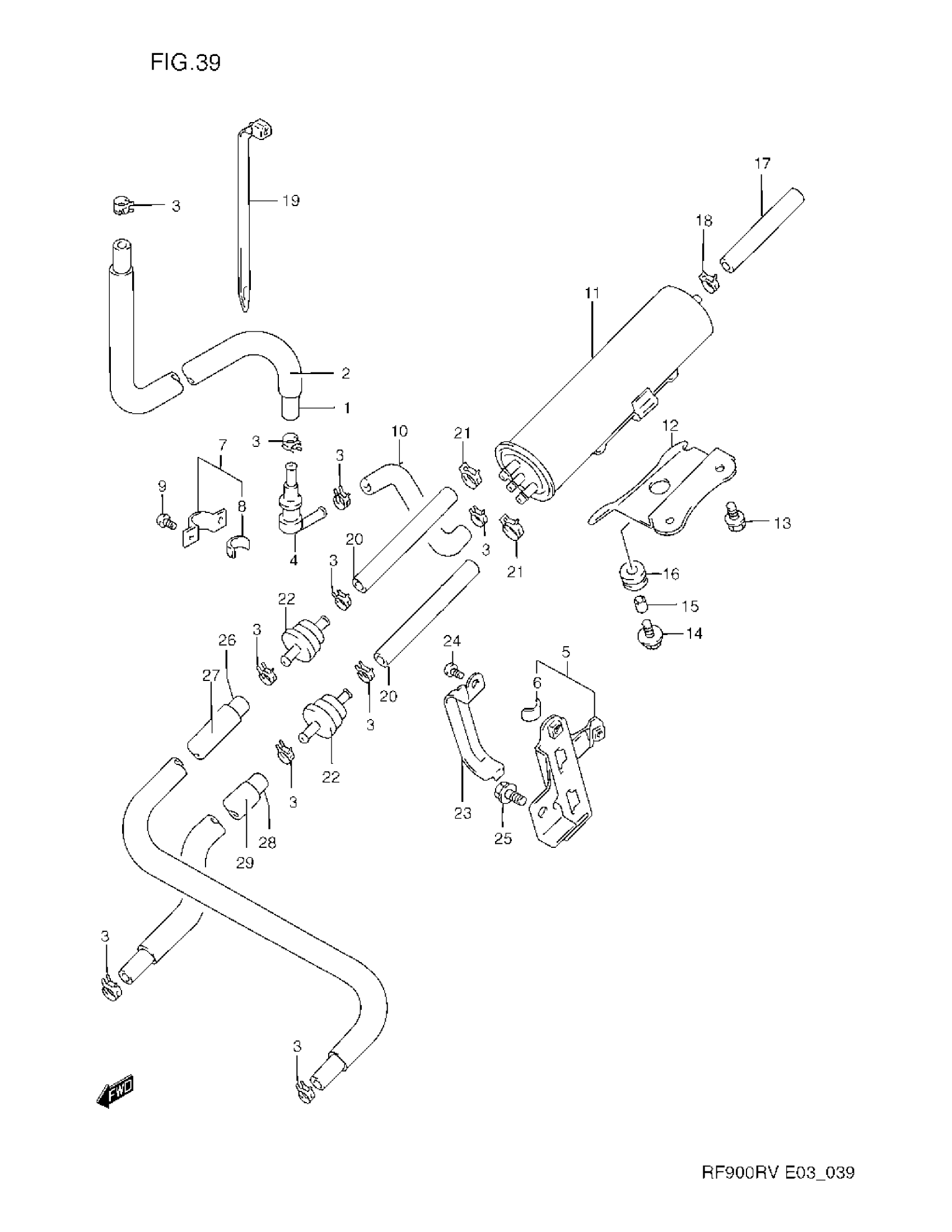

Suzuki RF900RV (1997) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:2000->700

09355-54116-00B

Unavailable

2

PROTECTOR | L:600->580

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET, BREATHER VALVE | MODEL R This part replaces 44890-31E00.

44890-31E01

Unavailable

5

BRACKET, BREATHER VALVE | MODEL S/T/V; Includes Item(s) 6

44890-31E01

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

10

HOSE, VALVE & CANISTER | L:600->100

09355-54116-600

$12.06

11

CANISTER

17210-17E00

Unavailable

12

BRACKET, CANISTER

44881-31E00

Unavailable

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

BOLT (6X16) | MODEL R/S/T This part replaces 09116-06016.

09116-06168

$2.50

14

BOLT, CANISTER | MODEL V

09116-06168

$2.50

15

SPACER | MODEL R/S/T This part replaces 09180-06152.

09180-06262

$2.55

15

SPACER | MODEL V

09180-06262

$2.55

16

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

17

HOSE,6.5X11.5X6 | L:600->140 This part replaces 09355-70125-600.

44421-12FR0

$12.33

18

CLIP This part replaces 09401-11407.

09401-11415

$2.23

19

CLAMP

09407-14403

$2.26

20

HOSE, PURGE VALVE NO.1 | L:600->110L:600->120

09359-54111-600

$25.80

21

CLIP This part replaces 09401-11407.

09401-11415

$2.23

22

VALVE, PURGE

44250-48B00

Unavailable

23

HOLDER, PURGE VALVE

44884-31E00

Unavailable

24

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

25

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

26

HOSE, PURGE & CARB NO.1 | L:2000->740

09355-54115-00B

Unavailable

27

PROTECTOR

44461-31E00

Unavailable

28

HOSE, PURGE & CARB NO.2 | L:600->580

09355-54115-600

$14.59

29

PROTECTOR,FUEL This part replaces 44461-31E10.

18498-99E11

$10.88
