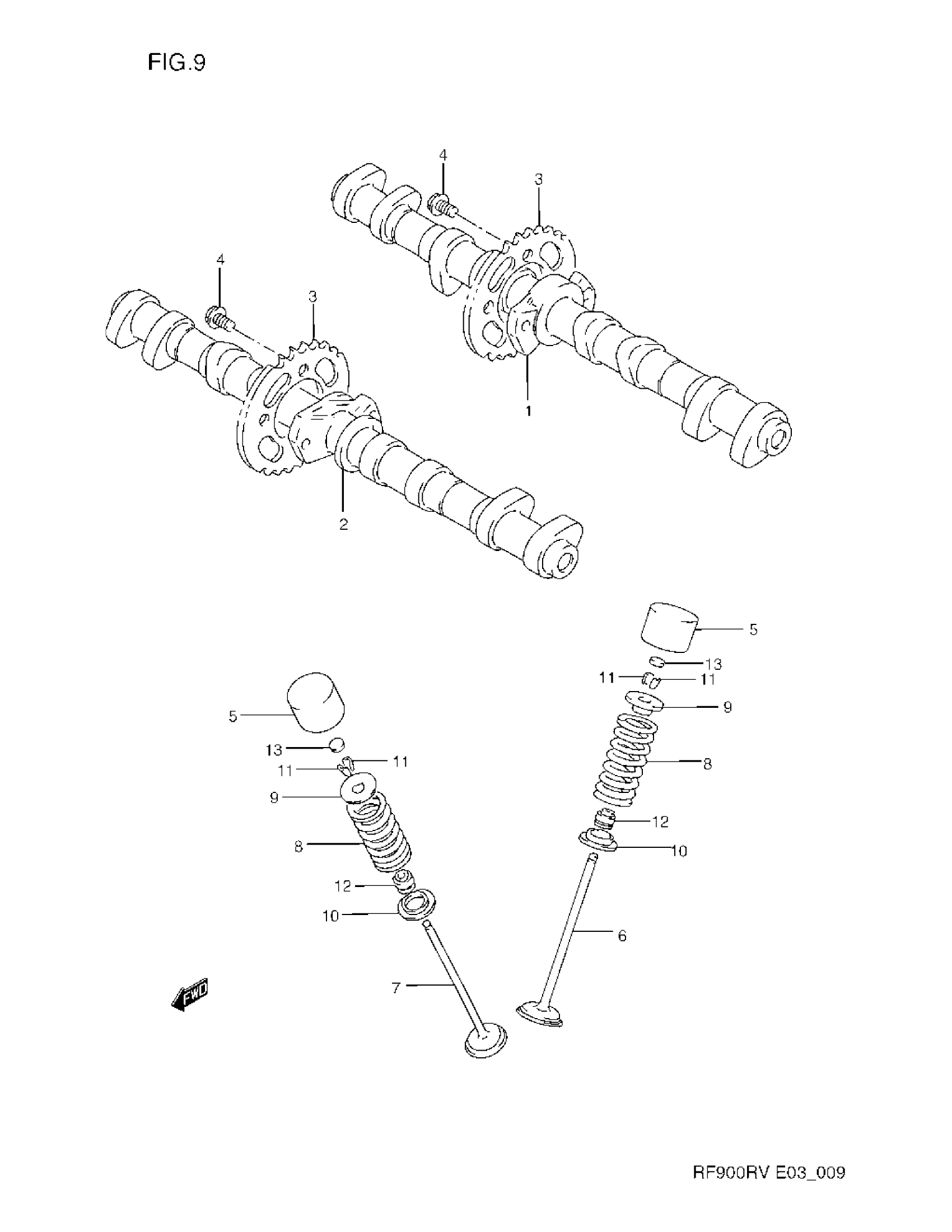

Suzuki RF900RV (1997) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-31E10

Unavailable

2

CAM SHAFT, EXHAUST

12721-31E00

Unavailable

2

CAM SHAFT, EXHAUST | CALIFORNIA ONLY

12721-31E10

Unavailable

3

SPROCKET, CAM SHAFT

12741-17E00

Unavailable

4

BOLT (7X11.5)

09103-07001

$2.43

5

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

6

VALVE, INTAKE

12911-31E00

Unavailable

7

VALVE, EXHAUST | MODEL R/S This part replaces 12912-17E00.

12912-17E01

Unavailable

7

VALVE, EXHAUST | MODEL T/V

12912-17E01

Unavailable

8

SPRING, VALVE

12921-17E00

Unavailable

9

RETAINER,VALVE SPRING | MODEL R This part replaces 12931-17E00.

12931-17E01

$16.13

9

RETAINER,VALVE SPRING | MODEL S/T/V

12931-17E01

$16.13

10

SEAT,VALVE SPRING

12933-17E00

$6.89

11

COTTER, VALVE

12932-32C00

$2.03

12

OIL SEAL (4.5X10X8)

09289-04002

$6.49

13

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

13

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

13

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

13

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

13

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

13

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

13

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

13

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

13

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

13

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

13

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

13

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

13

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

13

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

13

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

13

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

13

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

13

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

13

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

13

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

14

SHIM SET, TAPPET | OPT,NOT SHOWN; Includes Item(s) 15 This part replaces 12800-05820.

12800-05830

$1,211.58

15

CASE, TAPPET SHIM | OPT

99000-69491

Unavailable
