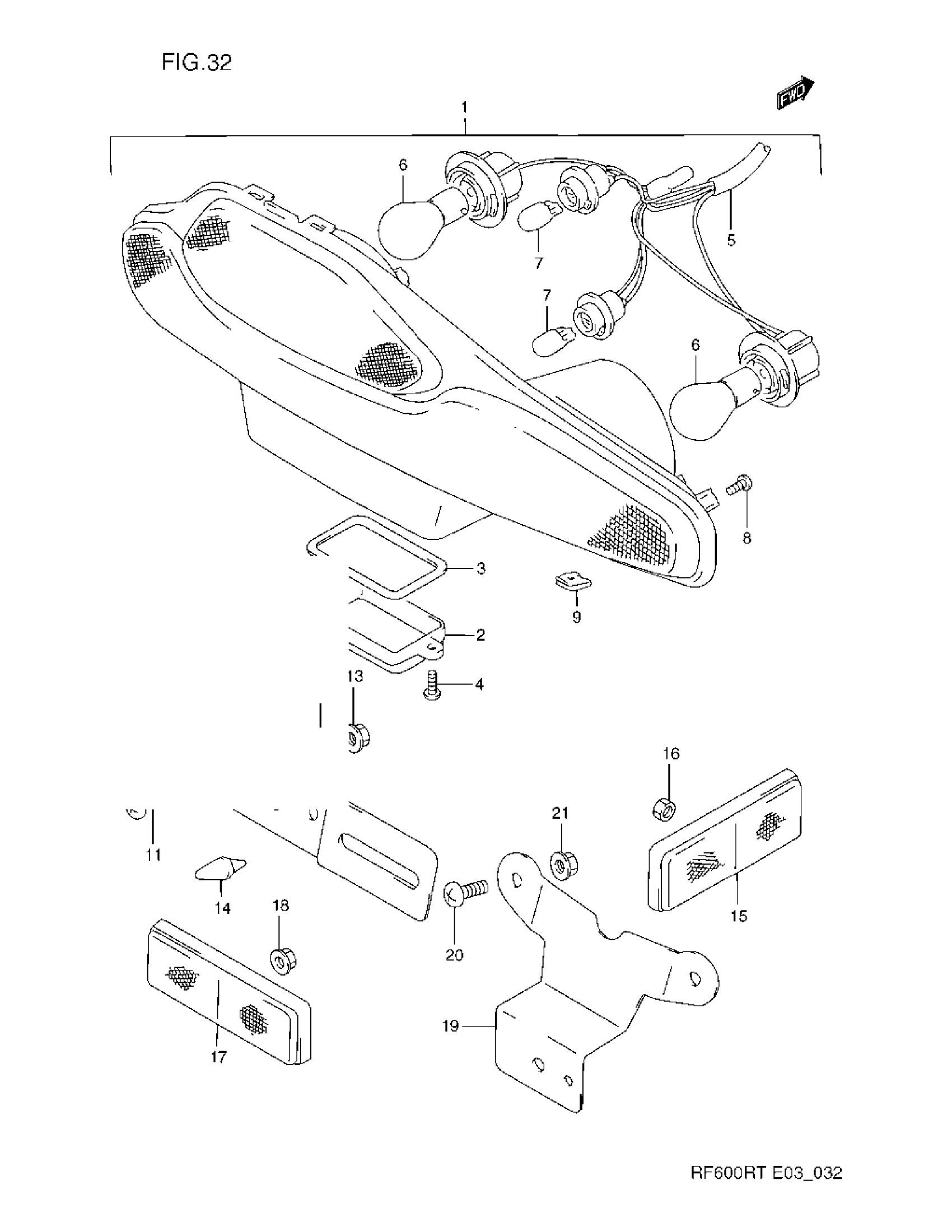

Suzuki RF600RT (1996) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | MODEL R/S This part replaces 35710-21E00.

35710-21E01

Unavailable

1

LAMP ASSY, REAR COMBINATION | MODEL T; Includes Item(s) 2 - 7

35710-21E01

Unavailable

2

LENS, LICENSE

35912-21E00

Unavailable

3

GASKET

35913-26D00

Unavailable

4

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

5

SOCKET ASSY | MODEL R/S

35718-21E00

Unavailable

5

SOCKET ASSY | MODEL T This part replaces 35718-21E01.

35718-21E00

Unavailable

6

BULB (12V,21W)

09471-12045

$3.27

7

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

8

SCREW | MODEL R/S This part replaces 03541-14123.

03541-1412A

$2.13

8

SCREW | MODEL T This part replaces 03511-14123.

03511-1412B

$2.93

9

NUT

09148-05021

$1.86

10

BRACKET, LICENSE PLATE

35927-48B30

$14.20

11

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

12

.WASHER (6.5X20X1.6) | MODEL R This part replaces 09160-06059.

09160-06088

$1.65

12

.WASHER (6.5X20X1.6) | MODEL S/T

09160-06088

$1.65

13

NUT | MODEL R This part replaces 08316-20063.

08316-2006A

$2.63

13

NUT | MODEL S This part replaces 08310-00063.

08310-0006A

$1.84

13

NUT | MODEL T This part replaces 08316-10063.

08316-1006B

$2.50

14

CUSHION, PLATE This part replaces 09321-06029.

09321-06030

$3.93

15

REFLECTOR, REAR SIDE

35970-24D60

$25.98

16

NUT This part replaces 08310-00053.

08310-0005A

$1.84

17

REFLECTOR, REAR

35970-24D60

$25.98

18

NUT This part replaces 08310-00053.

08310-0005A

$1.84

19

BRACKET, REAR REFLECTOR

35974-21E00

Unavailable

20

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

21

NUT | MODEL R/S This part replaces 08316-20063.

08316-2006A

$2.63

21

NUT | MODEL T This part replaces 08316-10063.

08316-1006B

$2.50
