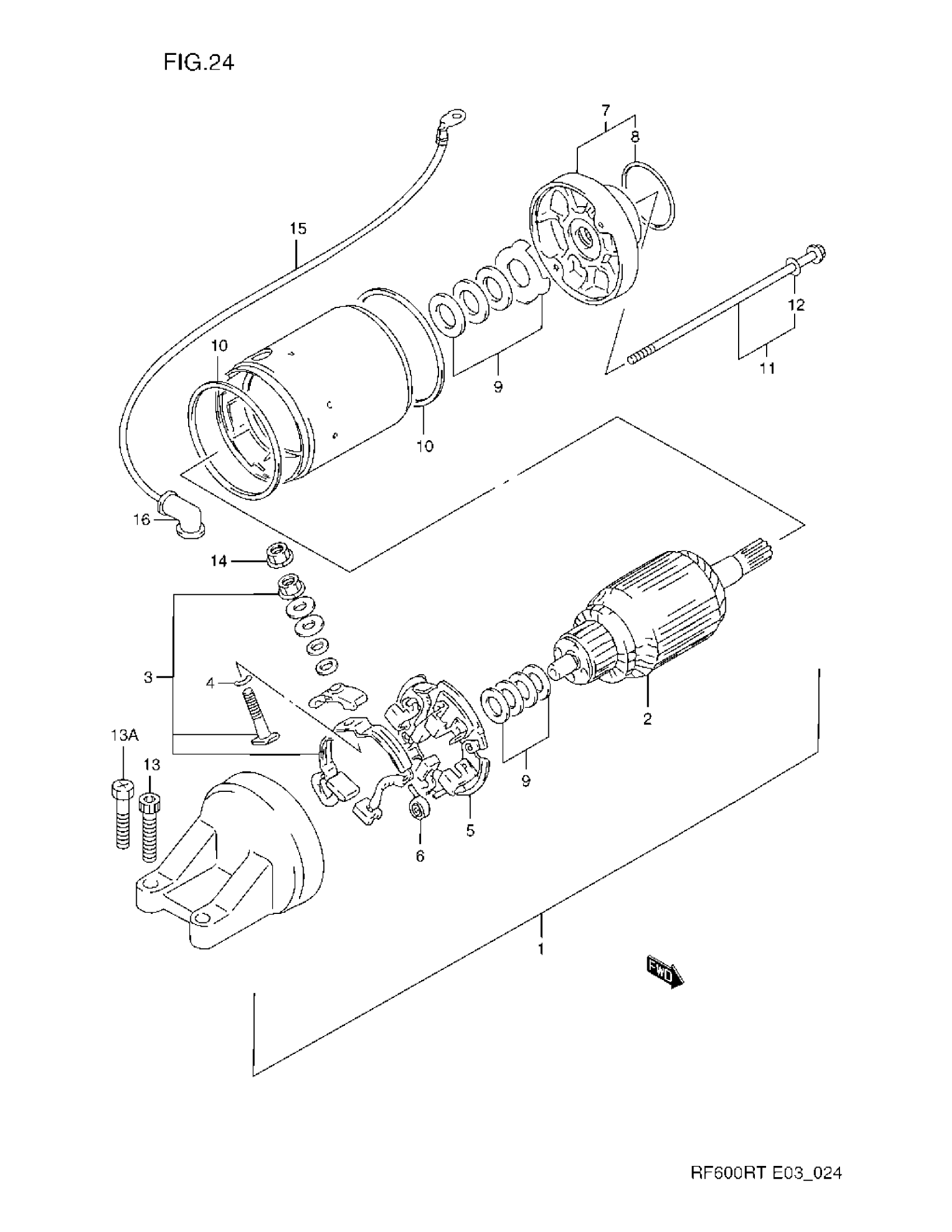

Suzuki RF600RT (1996) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR, STARTING | Includes Item(s) 2 - 12

31100-46E00

Unavailable

2

ARMATURE

31311-19C02

Unavailable

3

TERMINAL SET, BRUSH

31130-19B10

$28.15

4

O RING

31143-49040

$3.71

5

BRUSH HOLDER SET

31132-46E00

Unavailable

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET ASSY, FRONT

31150-46E00

Unavailable

8

.O RING | MODEL R/S This part replaces 31156-46E00.

31156-48B00

$12.02

8

O RING | MODEL T

31156-48B00

$12.02

9

WASHER SET

31170-19B10

$12.57

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

BOLT ASSY

31280-19B10

Unavailable

12

O RING

31143-49040

$3.71

13

BOLT, CENTER | MODEL R This part replaces 07120-06253.

07120-0625A

$2.50

13A

BOLT, STARTING MOTOR | MODEL S/T This part replaces 09128-06024.

09103-06212

$2.47

14

NUT This part replaces 08361-35068.

08361-3506A

$1.80

15

WIRE, STARTER MOTOR | Includes Item(s) 16

33810-21E00

Unavailable

16

CAP, STARTER MOTOR

31861-48B10

$6.55
