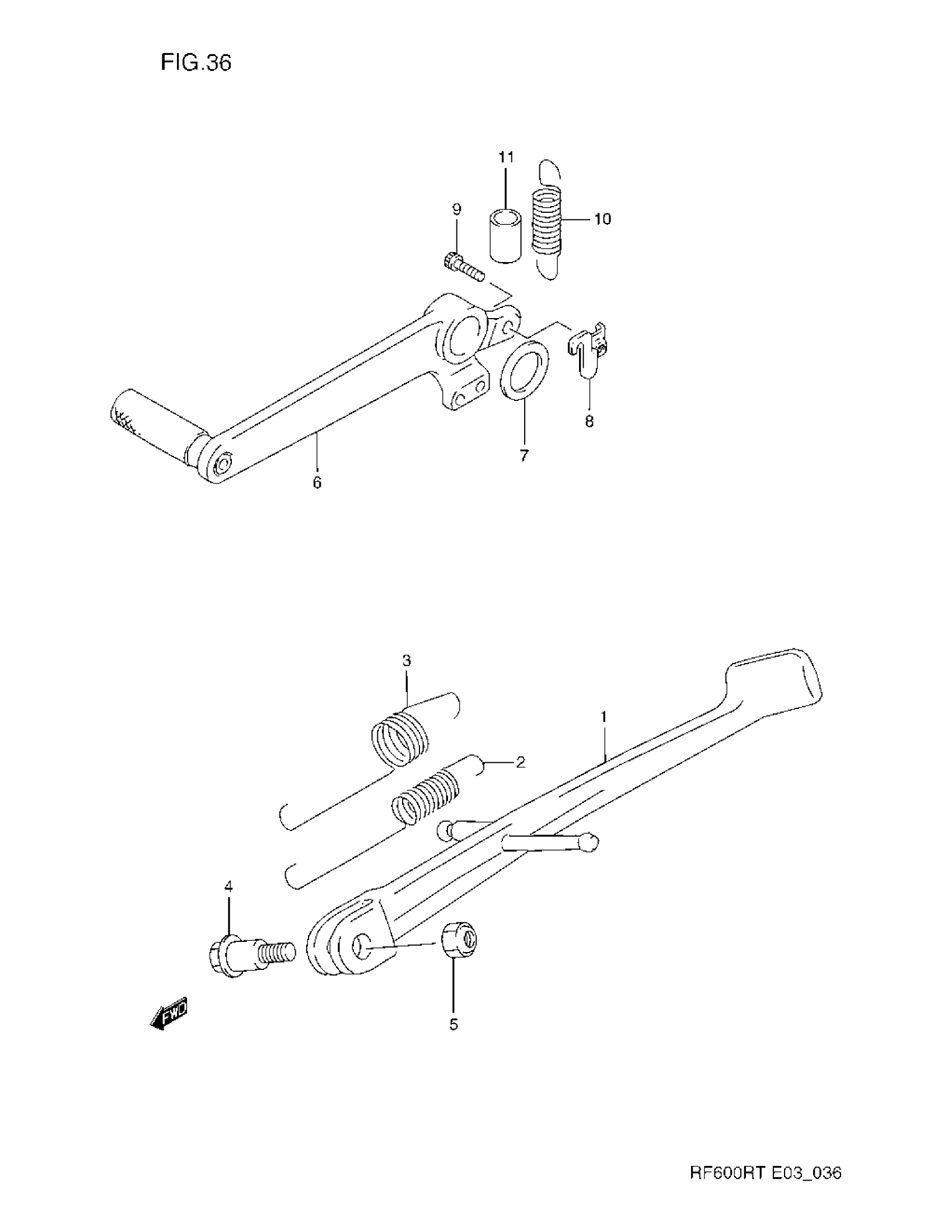

Suzuki RF600RT (1996) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL R This part replaces 42310-21E00.

42310-31E00

Unavailable

1

STAND, PROP | MODEL S/T

42310-31E00

Unavailable

2

SPRING, INNER

09443-15046

$8.32

3

SPRING, OUTER

09443-22017

$7.74

4

BOLT

09111-10027

$3.37

5

NUT

09159-10027

$3.10

6

PEDAL, BRAKE | MODEL R

43110-10D00

Unavailable

6

PEDAL, BRAKE | MODEL S This part replaces 43111-31E00.

43111-31E01

$162.72

6

PEDAL, BRAKE | MODEL T

43111-31E01

$162.72

7

WASHER

09160-18022

$2.92

8

BRACKET, STOP SWITCH SPRING

43560-32C00

$5.67

9

BOLT | MODEL R

07130-05167

$3.15

9

.SCREW | MODEL S/T This part replaces 02112-05163.

02112-0516A

$1.49

10

SPRING

09443-13029

$5.36

11

TUBE

43261-17C00

$6.12
