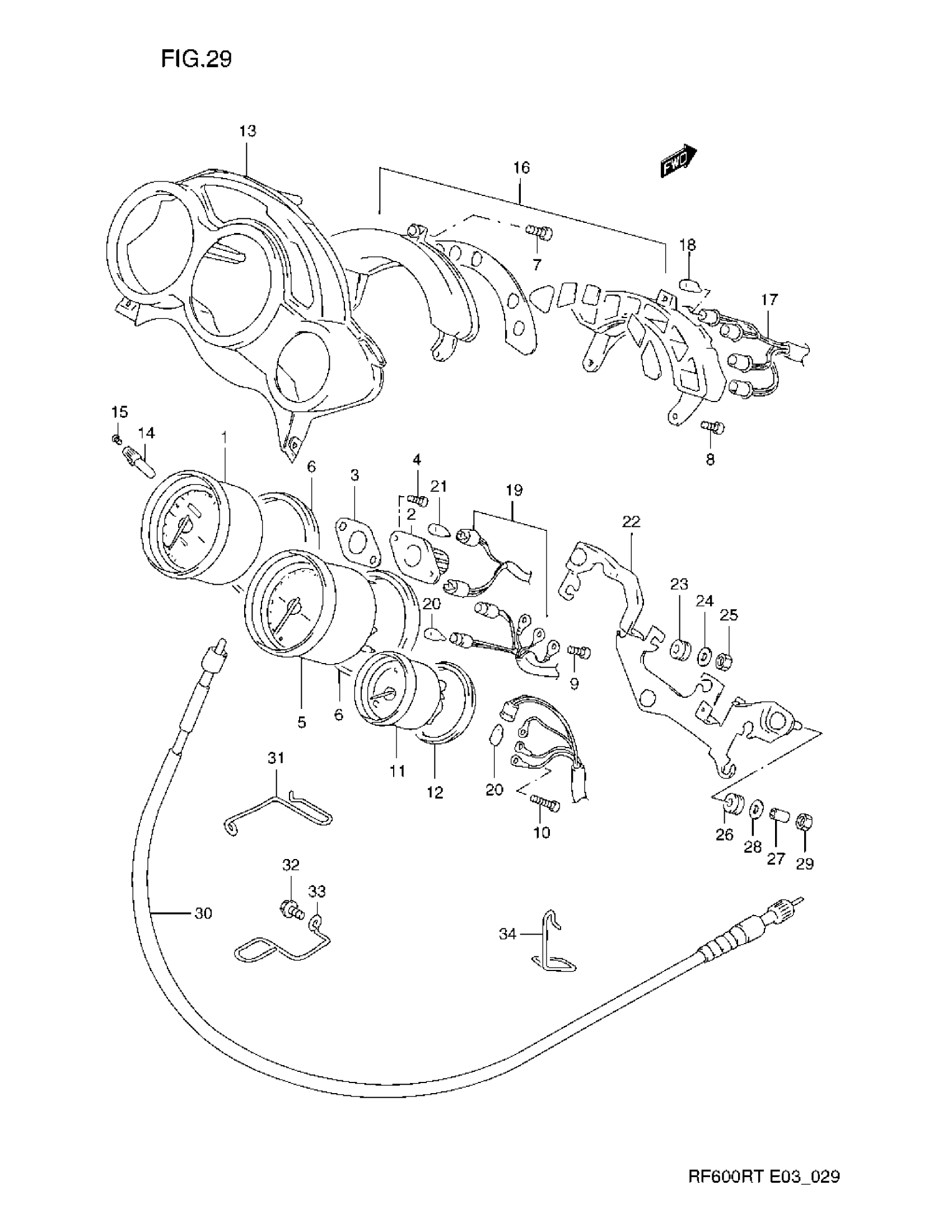

Suzuki RF600RT (1996) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-21E20

Unavailable

2

BOX, METER GEAR

34131-48B10

Unavailable

3

GASKET

34132-17C00

Unavailable

4

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

5

TACHOMETER

34210-21E10

Unavailable

6

DAMPER

34191-21E10

Unavailable

7

.SCREW | MODEL R This part replaces 34183-14A00.

34184-12B00

$2.45

7

SCREW (4X14) | MODEL S/T

34184-12B00

$2.45

8

SCREW | MODEL R This part replaces 34183-21E00.

03511-0416A

$1.78

8

SCREW | MODEL S/T This part replaces 34183-21E01.

03511-0416A

$1.78

9

SCREW (3X10) | MODEL R

34249-17E10

Unavailable

9

SCREW (3X10) | MODEL S/T

34149-19D00

Unavailable

10

SCREW (3X22)

34383-09400

Unavailable

11

METER, TEMP | MODEL R This part replaces 34420-21E10.

34420-21E20

Unavailable

11

METER, TEMP | MODEL S/T

34420-21E20

Unavailable

12

DAMPER

34191-21E20

Unavailable

13

HOOD, METER

34190-21E10

Unavailable

14

KNOB

34124-21E10

$8.18

15

SCREW (2X6) | MODEL R This part replaces 34981-13A00.

09139-02003

$1.65

15

SCREW | MODEL S/T

09139-02003

$1.65

16

BOX ASSY, PILOT

36380-21E20

Unavailable

17

CORD ASSY, PILOT BULB | MODEL R This part replaces 36394-21E10.

36394-21E11

Unavailable

17

CORD ASSY, PILOT BULB | MODEL S/T

36394-21E11

Unavailable

18

BULB (12V,3.4W)

09471-12082

Unavailable

19

CORD ASSY

34170-21E10

Unavailable

20

BULB (12V,1.7W)

09471-12100

$4.13

21

.BULB (12V1.7W)

09471-12108

$3.42

22

BRACKET, METER

34950-21E12

Unavailable

23

CUSHION

34189-21E10

Unavailable

24

WASHER | MODEL R This part replaces 34727-41410.

09160-04022

$2.15

24

WASHER | MODEL S/T This part replaces 09160-04017.

09160-04022

$2.15

25

NUT

08310-00047

$2.23

26

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

27

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

28

WASHER | MODEL R This part replaces 09160-06006.

09160-06084

$1.78

28

WASHER (6.5X18X1.0) | MODEL S/T

09160-06028

$1.49

29

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

29

NUT | MODEL S/T

09140-06027

$2.72

30

CABLE ASSY,SPEE This part replaces 34910-47D21.

34910-47D22

$66.23

31

GUIDE, METER NO.1

34938-21E00

Unavailable

32

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

33

GUIDE, METER NO.2

34938-21E11

Unavailable

34

GUIDE, METER NO.2

34938-21E20

Unavailable
