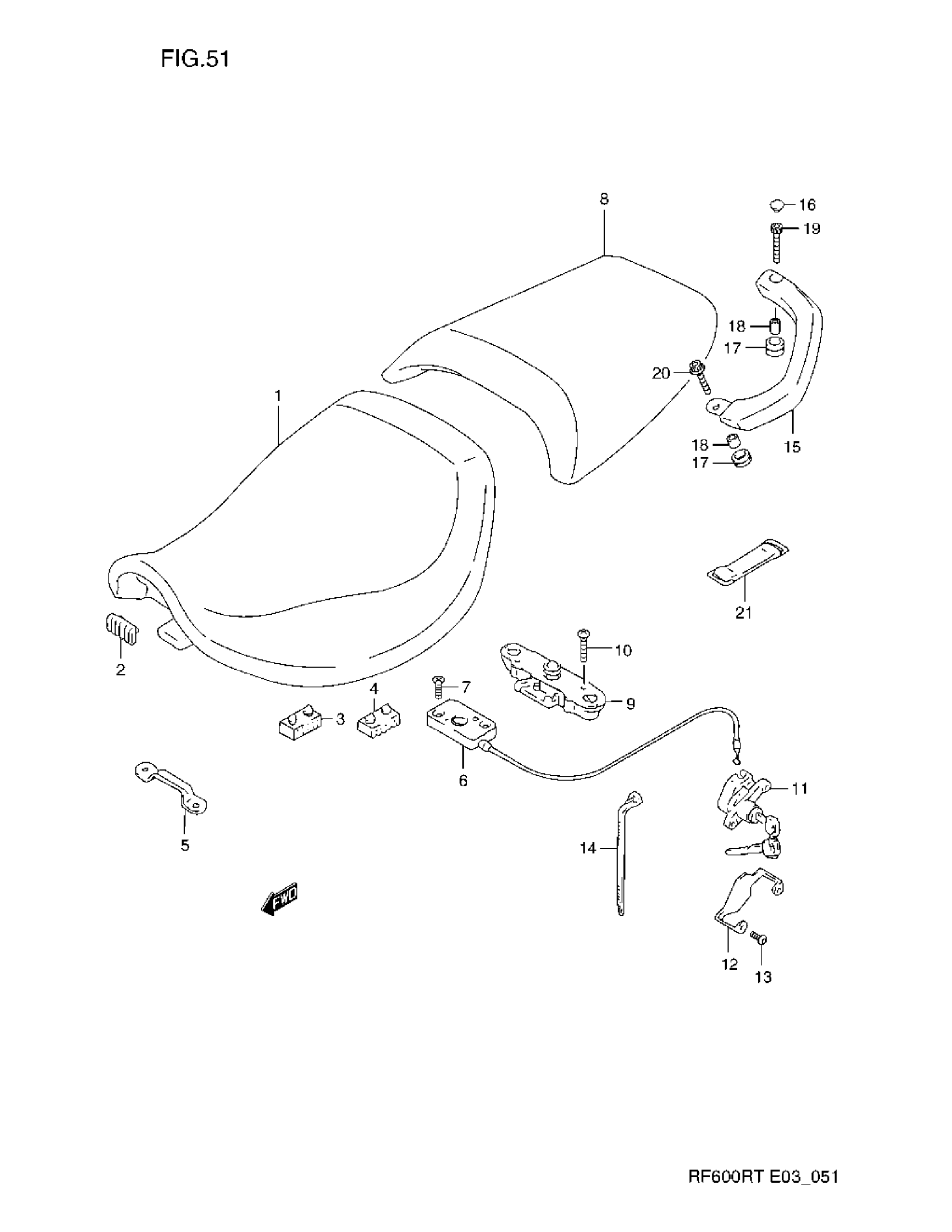

Suzuki RF600RT (1996) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 4

45100-21E00-6VP

Unavailable

2

CUSHION, BATTERY

45149-21E00

Unavailable

3

CUSHION, FRONT

45149-12C00

$6.63

4

CUSHION, SIDE

45149-31300

$3.56

5

PLATE, SEAT FRONT HOOK

45119-17E00

$14.45

6

BRACKET, SEAT SUPPORT FRONT

45220-21E10

Unavailable

7

SCREW This part replaces 02122-06253.

02122-0625A

$1.49

8

NO DESCRIPTION AVAILABLE | MODEL R FOR 1TY This part replaces 45300-21E00-6UR.

45300-21E01-6UR

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL R FOR 34R This part replaces 45300-21E00-6YZ.

45300-21E01-6YZ

Unavailable

8

SEAT ASSY, PILLION (BLACK) | MODEL S/T

45300-21E01-6VP

Unavailable

9

BRACKET, SEAT SUPPORT REAR

45220-21E00

Unavailable

10

SCREW, SEAT SUPPORT BRK | MODEL R/SMODEL T This part replaces 02112-06303.

02112-0630A

$1.78

11

LOCK SET,SEAT H This part replaces 95700-10833.

95700-10835

$126.00

12

PLATE, GUARD

45289-45D01

Unavailable

13

SCREW

09139-06075

Unavailable

14

CLAMP | MODEL R/SMODEL T

09407-14403

$2.26

15

HANDLE, PILLION RH (BLACK)

46210-21E00-291

Unavailable

15

HANDLE, PILLION LH (BLACK)

46220-21E00-291

Unavailable

16

CAP

09250-06004

$1.49

17

CUSHION

09320-11008

$2.60

18

SPACER

09180-08033

$2.17

19

BOLT This part replaces 07130-08353.

07130-0835B

$4.60

20

BOLT This part replaces 07120-08303.

07120-0830A

$3.86

21

BAND, TOOL

09462-00008

$4.77
