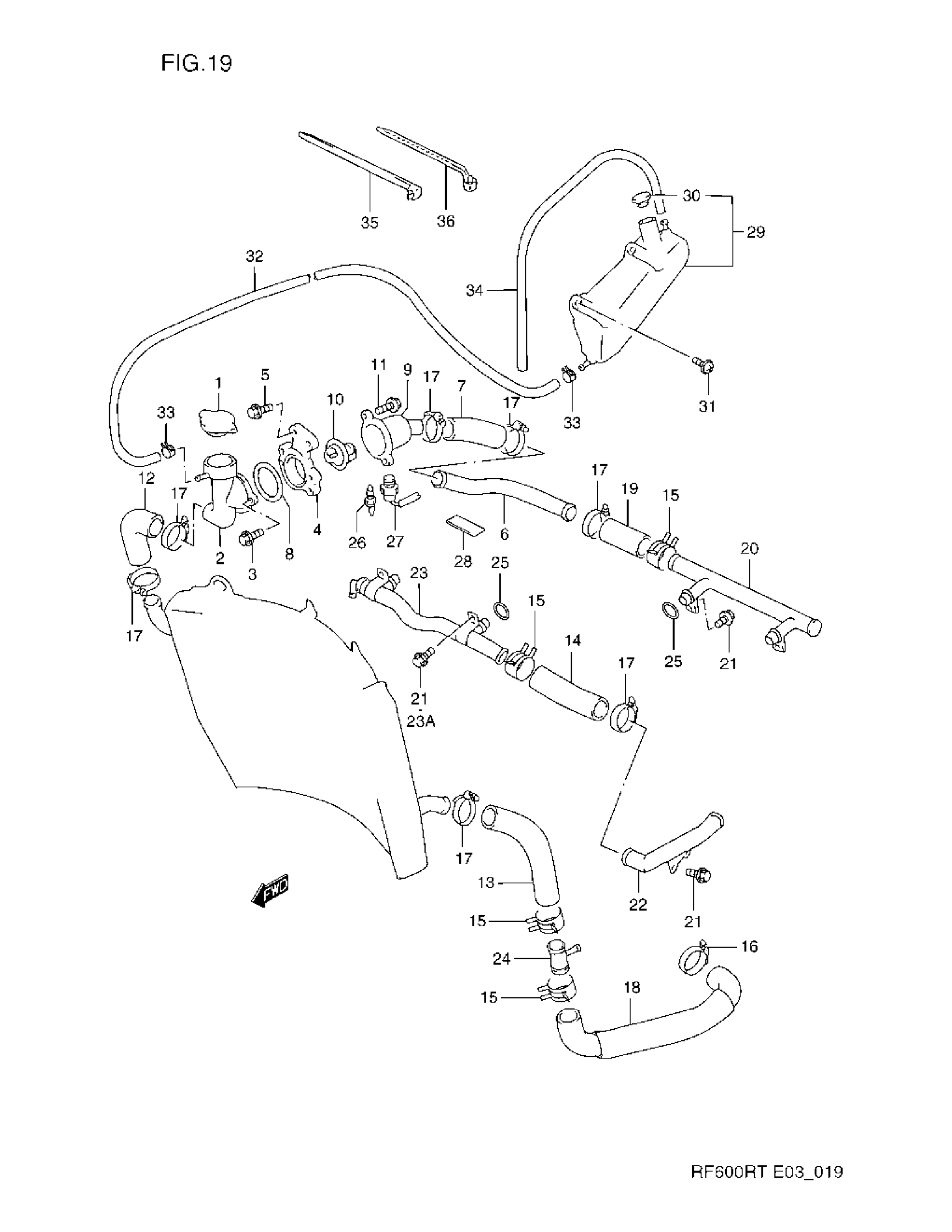

Suzuki RF600RT (1996) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 17730-12C01.

17730-08J00

$42.50

2

CONDUCTION, RADIATOR

17791-32C00

Unavailable

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

BRACKET, CONDUCTION

17792-12C00

Unavailable

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

PIPE, CONDUCTION INLET

17831-21E02

Unavailable

7

HOSE, CYLINDER INLET JOINT | MODEL R/S This part replaces 17851-24D00.

17858-17E50

Unavailable

7

HOSE, CYLINDER INLET JOINT | MODEL T This part replaces 17856-17E50.

17858-17E50

Unavailable

8

O RING (D:2.4,ID:43.2)

09280-44005

$3.72

9

CONNECTOR, THERMOSTAT INLET

17662-21E00

Unavailable

10

THERMOSTAT,WATE This part replaces 17670-32C01.

17670-32C02

$36.31

11

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

12

HOSE, RADIATOR INLET

17851-21E00

Unavailable

13

HOSE, RADIATOR OUTLET

17852-17E00

Unavailable

14

HOSE, CYLINDER INLET JOINT | MODEL R This part replaces 17855-17E02.

17858-17E50

Unavailable

14

HOSE, CYLINDER INLET JOINT | MODEL S/T This part replaces 17856-17E50.

17858-17E50

Unavailable

15

CLIP This part replaces 09401-26404.

09401-26407

$4.62

16

CLAMP | MODEL R This part replaces 09402-33502.

09402-38511

$11.67

16

CLAMP, WATER HOSE NO.2 | MODEL S/T

09402-38511

$11.67

17

CLAMP | MODEL R This part replaces 09402-30502.

09402-32511

$10.86

17

CLAMP, WATER HOSE NO.3 | MODEL S/T

09402-32511

$10.86

18

HOSE, WATER PUMP INLET

17853-17E00

Unavailable

19

HOSE, CYLINDER INLET JOINT This part replaces 17856-21E00.

17858-17E50

Unavailable

20

PIPE, HEAD OUTLET

17880-21E02

Unavailable

21

BOLT, CLAMP | MODEL R This part replaces 01517-06125.

01550-0612A

$1.97

21A

BOLT, CLAMP | MODEL S/T This part replaces 01550-06123.

01550-0612A

$1.97

21B

BOLT (6X12) | MODEL S This part replaces 09103-06184.

09103-06285

$1.97

21B

BOLT (6X12) | MODEL T This part replaces 09103-06083.

09103-06285

$1.97

22

PIPE, CYLINDER SIDE | MODEL R This part replaces 17860-21E01.

17860-17E00

Unavailable

22

PIPE, CYLINDER SIDE | MODEL S/T

17860-17E00

Unavailable

23

PIPE, CYLINDER INLET

17870-21E01

Unavailable

24

PIPE, WATER HOSE JOINT | MODEL R This part replaces 17890-21E01.

17890-17E01

Unavailable

24

UNION, HOSE JOINT | MODEL S/T

17890-17E01

Unavailable

25

O RING (D:3.2,ID:17.8)

09280-18009

$5.83

26

GAUGE ASSY, WATER TEMPERATURE

34850-50A00

$82.87

27

SWITCH, RADIATOR FAN This part replaces 17680-45D00.

17680-48E00

$119.72

28

CUSHION (50X42X2.0) | MODEL R/S This part replaces 94476-17E00.

51553-15D40

$7.18

28

CUSHION, CONDUCTION PIPE | MODEL T

51553-15D40

$7.18

29

TANK ASSY, RESERVOIR | Includes Item(s) 30

17910-21E00

Unavailable

30

CAP, RESERVOIR TANK

17932-12C00

$4.48

31

SCREW (6X16)

09136-06022

$2.21

32

HOSE, RESERVOIR TANK INLET This part replaces 17981-21E00.

17981-21810

$42.85

33

CLIP

09401-08411

$1.78

34

HOSE, RESERVOIR TANK INLET | MODEL R/S This part replaces 17982-31E00.

17981-21810

$42.85

34

HOSE, RESERVOIR TANK INLET | MODEL T This part replaces 17981-21E00.

17981-21810

$42.85

35

CLAMP

09407-22404

Unavailable

36

CLAMP | MODEL R/S

09407-18402

$2.19

36

CLAMP | MODEL T This part replaces 09407-18403.

09407-18402

$2.19
