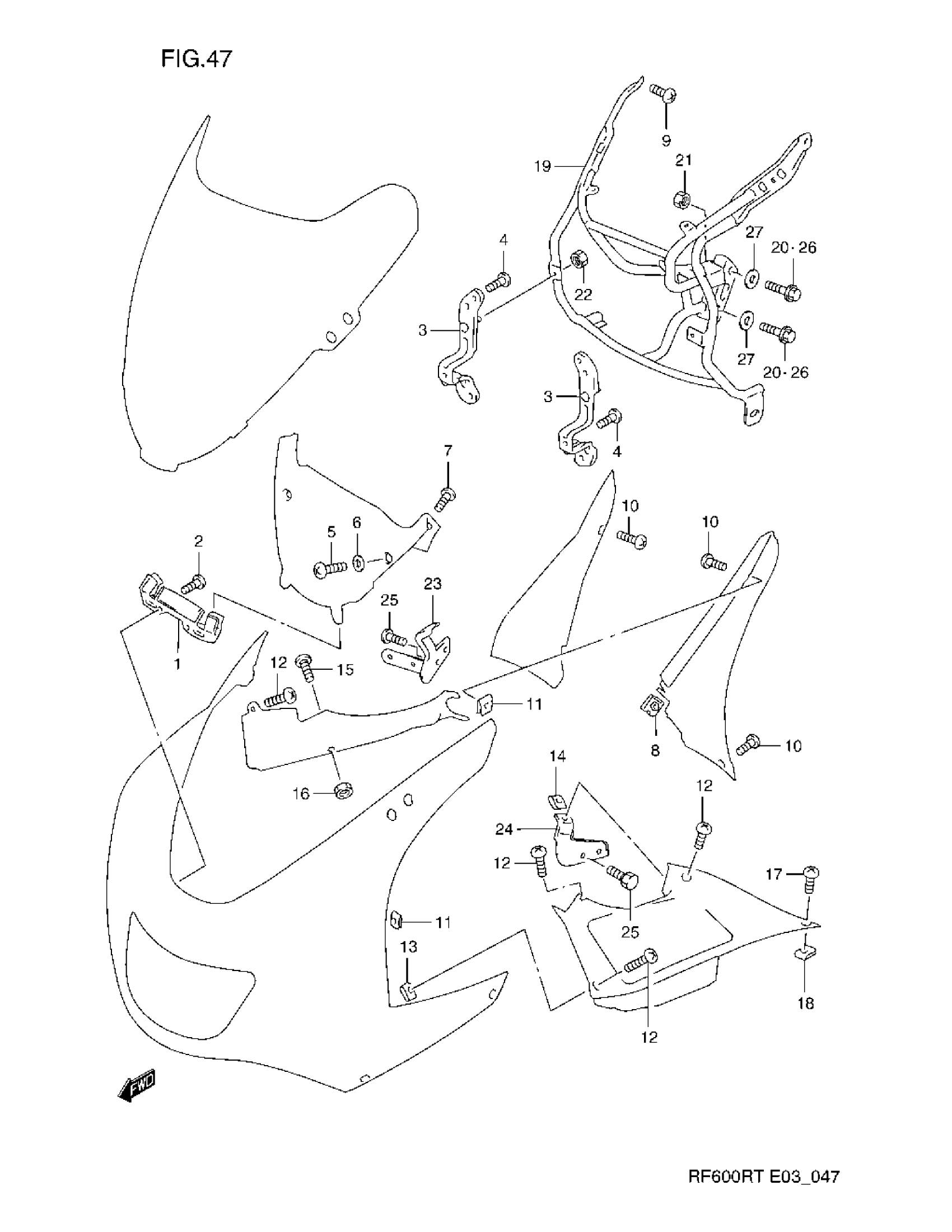

Suzuki RF600RT (1996) INSTALLATION PARTS Diagram

#

Description
Price

1

BRACKET, WIND SCREEN

94620-21E00

Unavailable

2

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

3

BRACKET, HEAD LAMP RH

94418-21E00

Unavailable

3

BRACKET, HEAD LAMP LH

94428-21E00

Unavailable

4

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

5

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

6

WASHER

09161-05017

$3.18

7

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

8

NUT This part replaces 09148-05004.

09148-05013

$2.07

9

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

10

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

11

NUT This part replaces 09148-05004.

09148-05013

$2.07

12

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

13

NUT This part replaces 09148-05004.

09148-05013

$2.07

14

NUT

09148-05013

$2.07

15

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

16

NUT This part replaces 09148-05004.

09148-05013

$2.07

17

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

18

NUT This part replaces 09148-05004.

09148-05013

$2.07

19

BRACE, COWLING | ->94510-31E00 This part replaces 94510-21E00.

94510-31E10

Unavailable

19

BRACE, COWLING This part replaces 94510-31E00.

94510-31E10

Unavailable

20

BOLT (8X35) | MODEL R This part replaces 09103-08287.

09103-08357

$4.17

21

NUT | MODEL R This part replaces 08313-20083.

08313-2008B

$2.88

21

NUT | MODEL S/T This part replaces 08316-10083.

08316-1008B

$2.66

22

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

22

NUT | MODEL S/T This part replaces 08319-31063.

08319-3106A

$2.03

23

BRACKET, SIDE PANEL RH

94550-21E00

Unavailable

24

BRACKET, SIDE PANEL LH

94561-21E00

Unavailable

25

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

26

BOLT (8X40) | MODEL R/S/T

09103-08222

$2.85

27

WASHER | MODEL R/S/TFOR 09103-08222

09164-08020

$2.06
