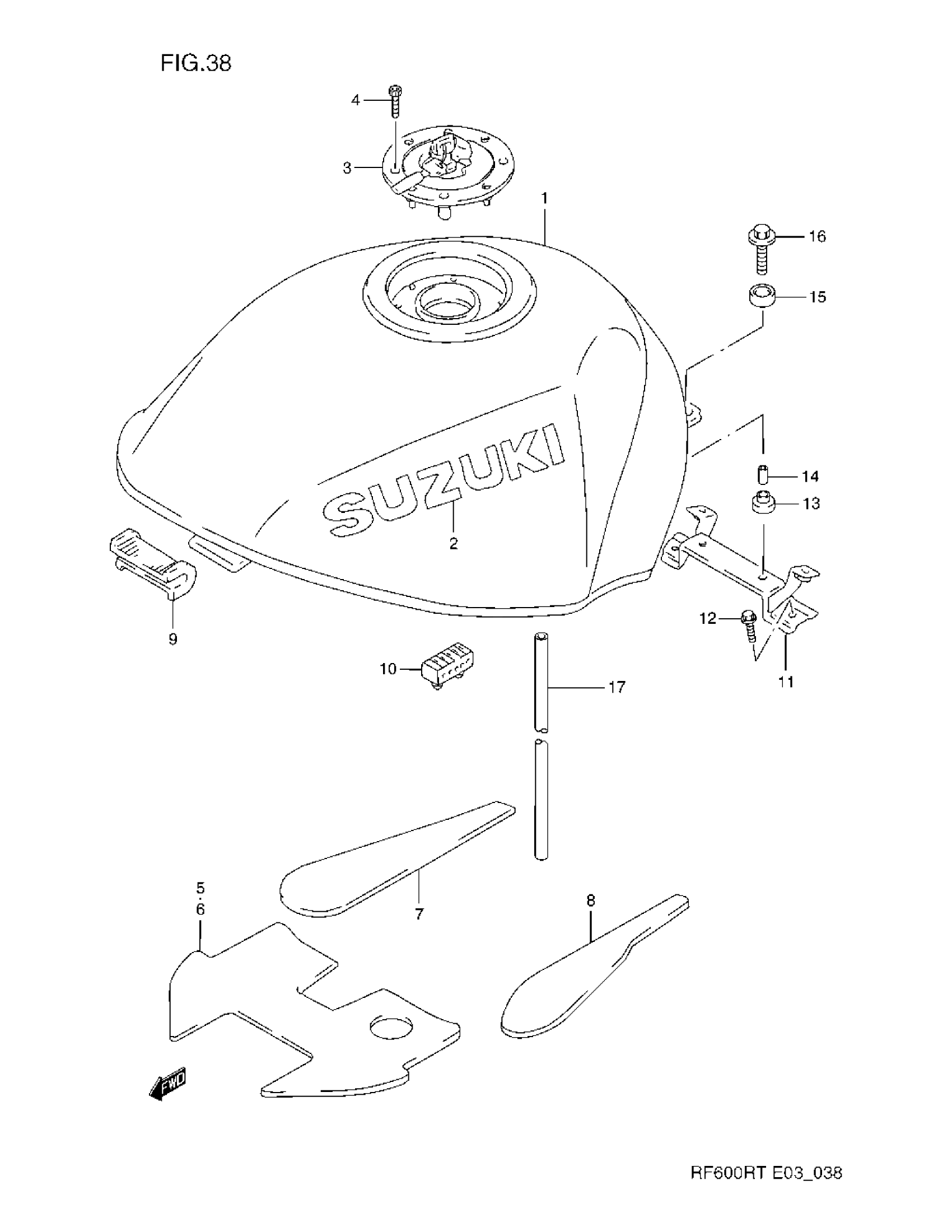

Suzuki RF600RT (1996) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21E00-1TY.

44100-21E01-1TY

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21E00-34R.

44100-21E01-34R

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL R This part replaces 44100-21E20-1TY.

44100-21E21-1TY

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL R This part replaces 44100-21E20-34R.

44100-21E21-34R

Unavailable

1

TANK ASSY, FUEL (GREEN) | MODEL S

44100-21E01-1ZV

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 44100-21E01-28V.

44110-21E01-YD8

Unavailable

1

TANK ASSY, FUEL (GREEN) | CALIFORNIA ONLY,MODEL S

44100-21E21-1ZV

Unavailable

1

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY,MODEL S

44100-21E21-28V

Unavailable

1

TANK ASSY, FUEL (RED) | MODEL T FOR E6S

44100-21E01-3AX

Unavailable

1

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY,MODEL T FOR E6S; Includes Item(s) 2 - 2

44100-21E21-3AX

Unavailable

2

EMBLEM (RED) | MODEL R FOR 1TY

68111-01D00-29F

Unavailable

2

EMBLEM (SILVER) | MODEL R FOR 34R

68111-01D00-20H

Unavailable

2

EMBLEM (SILVER) | MODEL S FOR 1ZV

68111-01D00-21J

Unavailable

2

EMBLEM (GRAY) | MODEL S FOR 28V

68111-01D00-17U

Unavailable

2

EMBLEM (CHARCOAL) | MODEL T FOR 3AX

68111-01D00-20G

Unavailable

3

CAP SET,FUEL TA | MODEL R This part replaces 44201-01831.

44201-01833

Unavailable

3

CAP SET,FUEL TA | MODEL S/T This part replaces 44201-01832.

44201-01833

Unavailable

3

CAP SET, FUEL | CALIFORNIA ONLY,MODEL R This part replaces 44201-01841.

44201-01842

Unavailable

3

CAP SET, FUEL TANK | CALIFORNIA ONLYMODEL S/T

44201-01842

Unavailable

4

BOLT

09106-05017

$2.83

5

SHIELD, TANK NO.1 | OTHER THAN CALIFORNIA

44191-21E11

Unavailable

6

SHIELD, TANK NO.1 | CALIFORNIA ONLY

44191-21E00

Unavailable

7

SHIELD, TANK NO.2 | CALIFORNIA ONLY

44192-21E00

Unavailable

8

SHIELD, TANK NO.3 | CALIFORNIA ONLY

44193-21E00

Unavailable

9

CUSHION,FUEL TA | MODEL R This part replaces 44511-32C00.

44511-32C02

$15.78

9

CUSHION,FUEL TA | MODEL S/T This part replaces 44511-32C01.

44511-32C02

$15.78

10

CUSHION, SIDE

45149-31300

$3.56

11

BRACKET, FUEL TANK REAR

44530-21E02

Unavailable

12

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

13

CUSHION, REAR LOWER

09320-10038

$2.61

14

SPACER This part replaces 09180-06072.

09180-06271

$2.35

15

CUSHION, REAR UPPER

09320-14017

$2.35

16

BOLT | MODEL R This part replaces 01550-06353.

01550-0635A

$2.32

16

BOLT | MODEL S/T This part replaces 01550-06303.

01550-0630A

$2.32

17

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

18

COLOR : E6S = 28V (RED) ,

SPECIAL NOTE

Unavailable
