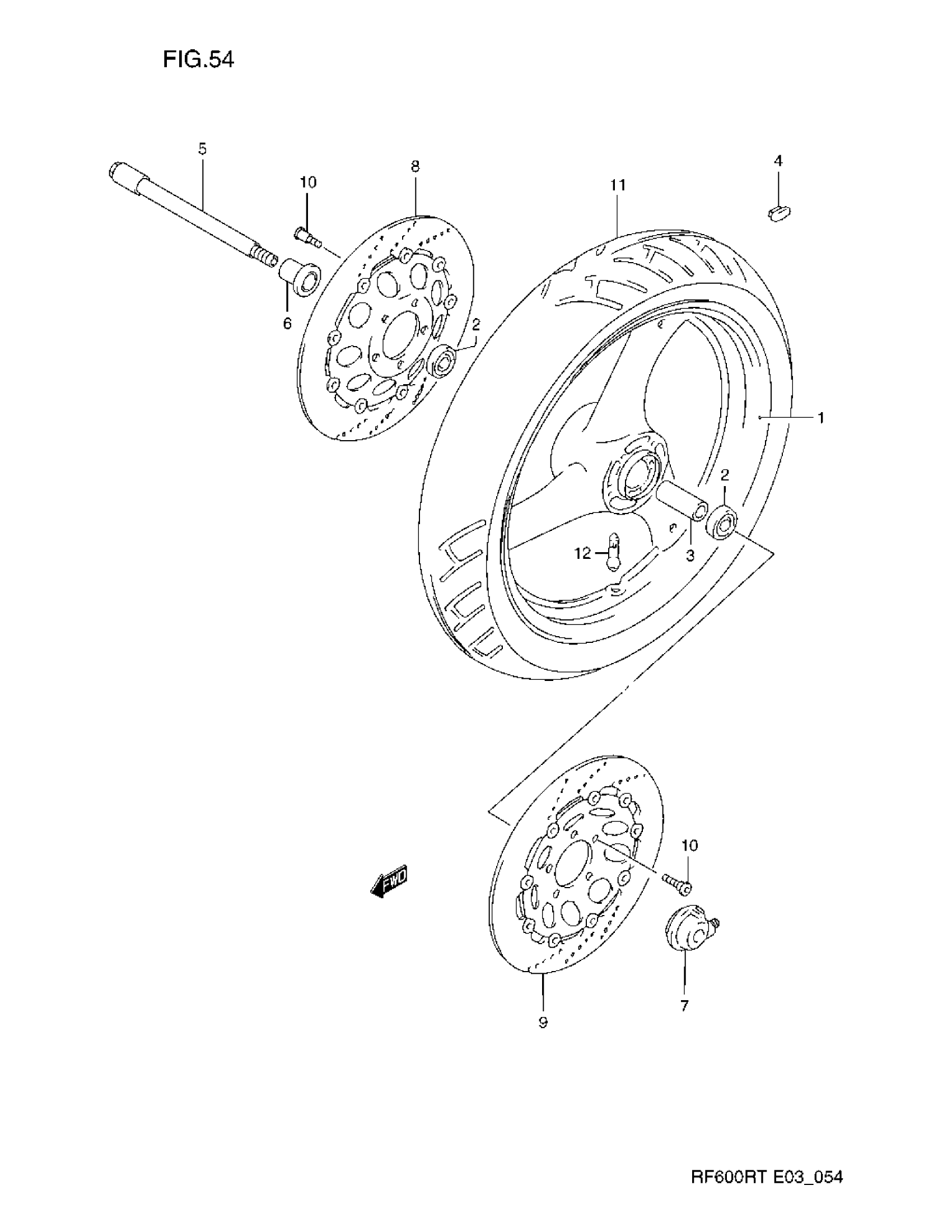

Suzuki RF600RT (1996) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT,MT3.50X17 (GRAY) | FOR 1TY,1ZV,28V,E6S

54111-32C71-35W

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 34R This part replaces 54111-32C70-0FP.

54111-32C71-0FP

Unavailable

2

BEARING

08143-62037

$18.47

3

SPACER (17.5X22.5X73)

09180-17094

$18.20

4

BALANCER, WHEEL,10G

55411-00A00

$1.49

4

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

4

BALANCER, WHEEL,30G

55413-00A01

Unavailable

5

AXLE, FRONT

54711-32C00

Unavailable

6

SPACER, FRONT AXLE,RH

54740-32C00

$18.43

7

BOX ASSY, SPEEDOMETER GEAR

54600-32C02

$127.05

8

DISC, FRONT BRAKE,RH | MODEL R

59210-32C70

Unavailable

8

DISC, FRONT BRAKE,RH | MODEL S/T

59210-32C80

Unavailable

9

DISC, FRONT BRAKE,LH | MODEL R

59220-32C70

Unavailable

9

DISC, FRONT BRAKE,LH | MODEL S/T

59220-32C80

Unavailable

10

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

11

TIRE, FRONT (120/70 ZR17)

55110-21E20

Unavailable

12

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85
